KIOTI

KIOTI CK2620 Manual ROPS Tractor (R14 Hybrid Tires)

SKU KTT-CK2620M-R14

Regular price: $25,750.⁵⁸

Regular price: $25,750.⁵⁸

Add your machine and attachments to the cart to begin to build and price your package!

When you're ready to take the next step, please reach out to us for a quote.

*Pricing shown at MSRP and may not include available Timberstar Tractor or Manufacturer discounts.
*Finance rates, payment calculations, whether or not you need a down payment, all available through our sales staff.
*Pricing may not include freight, assembly, finance, delivery, or pdi fees.
*Manufacturer pricing subject to change without notice.
*Manufacturer sales promotions valid unitl the end of the month they were issued in.
*Price match available for many brands we carry.

Description

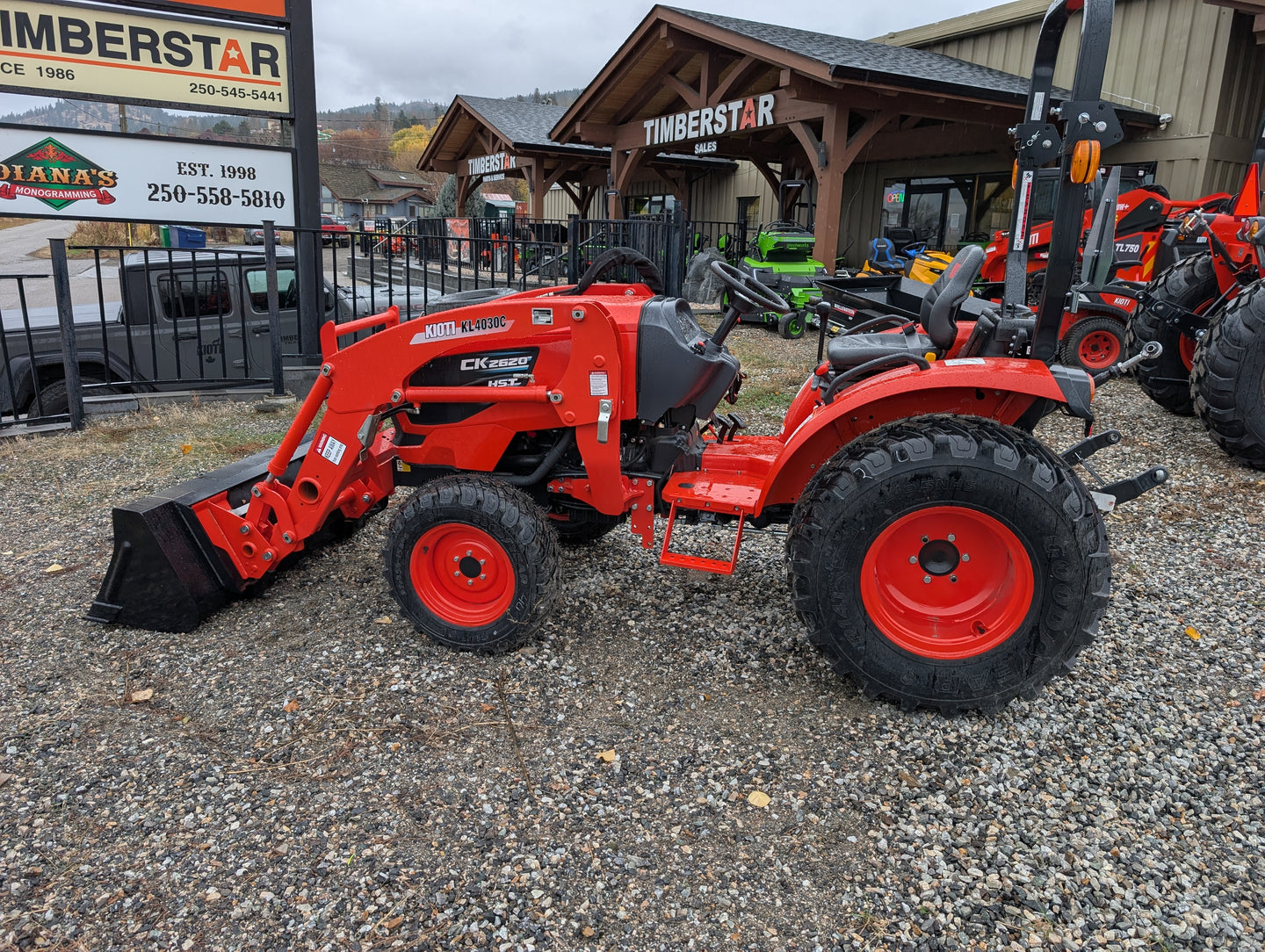

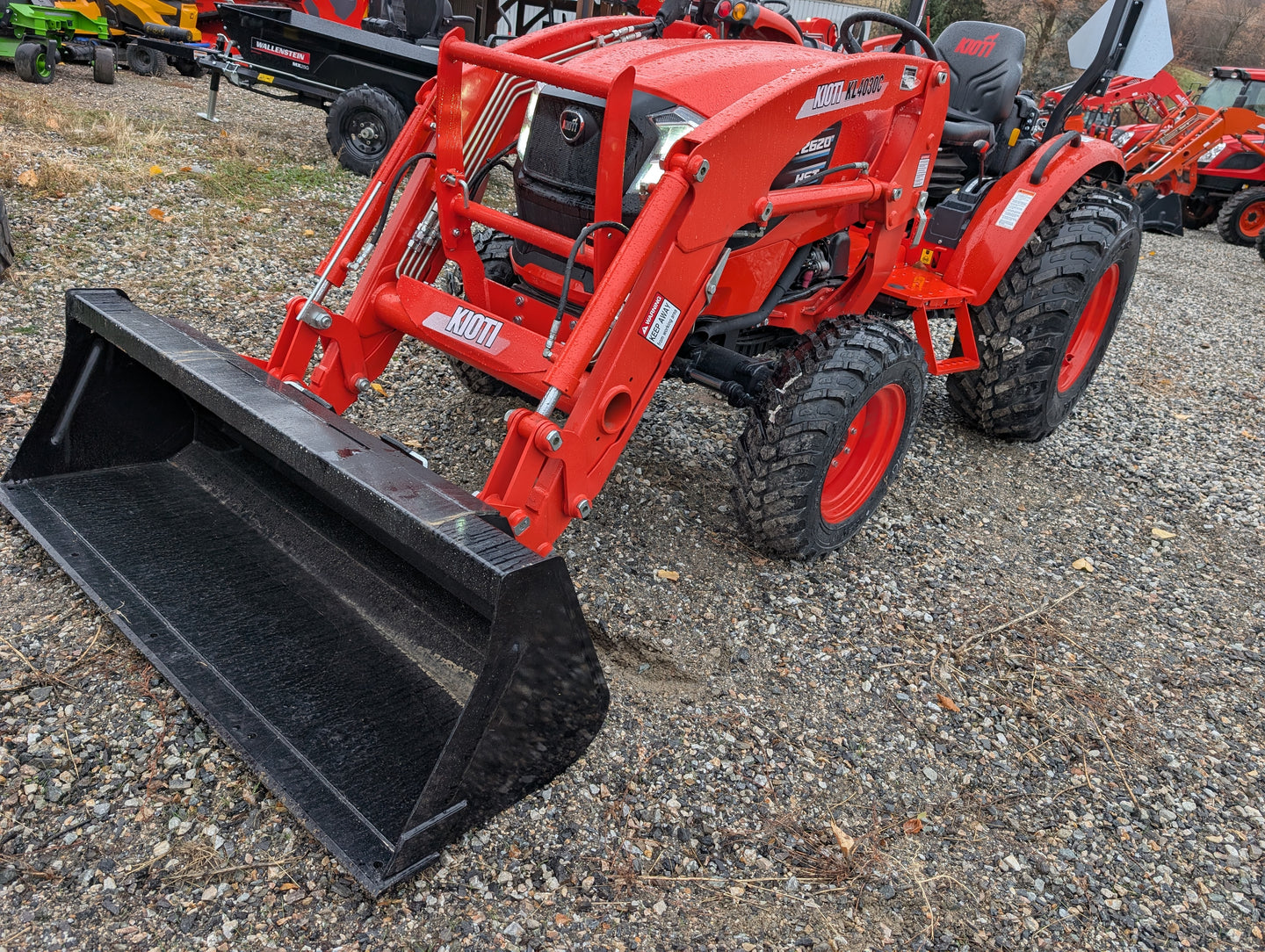

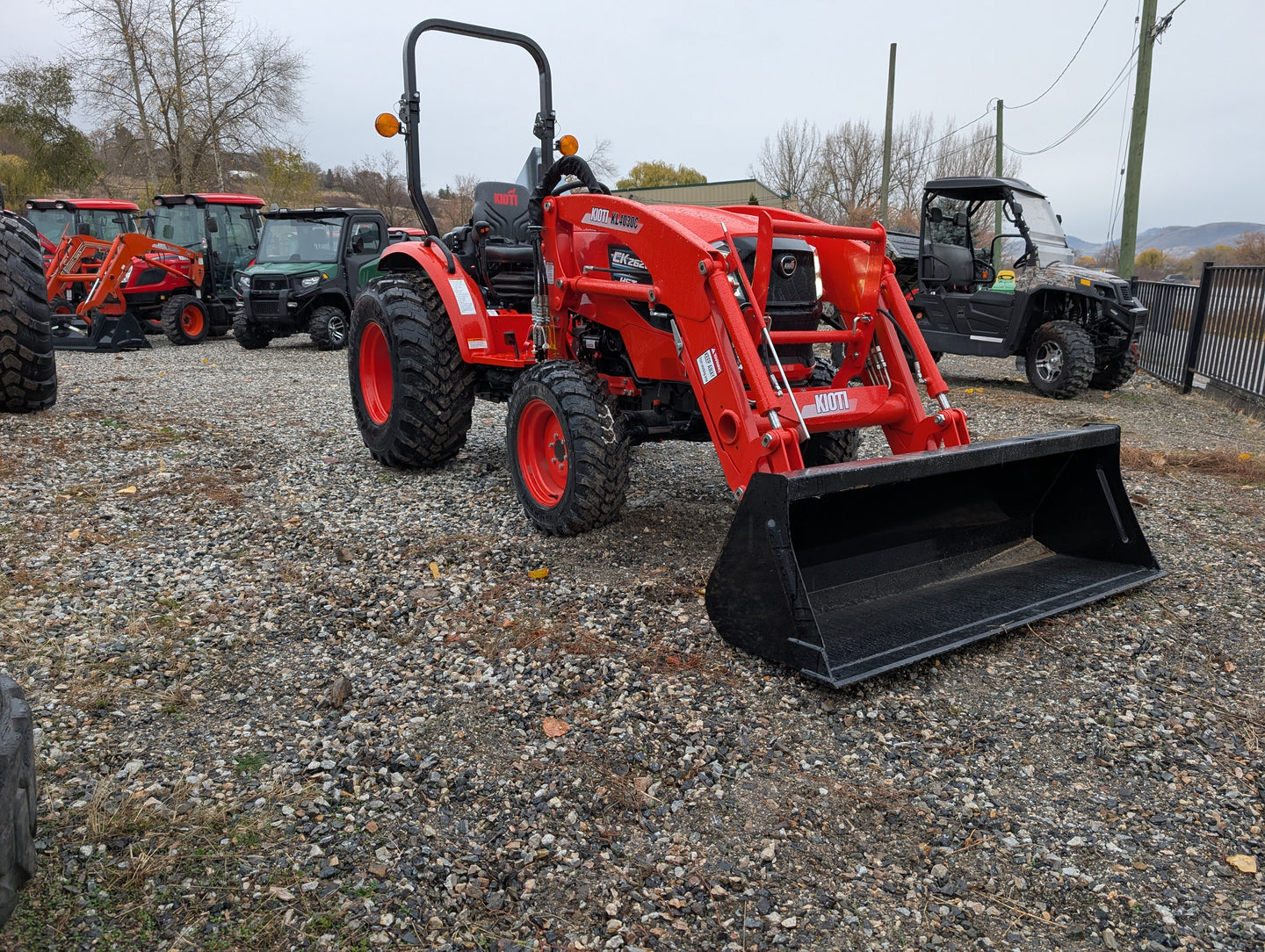

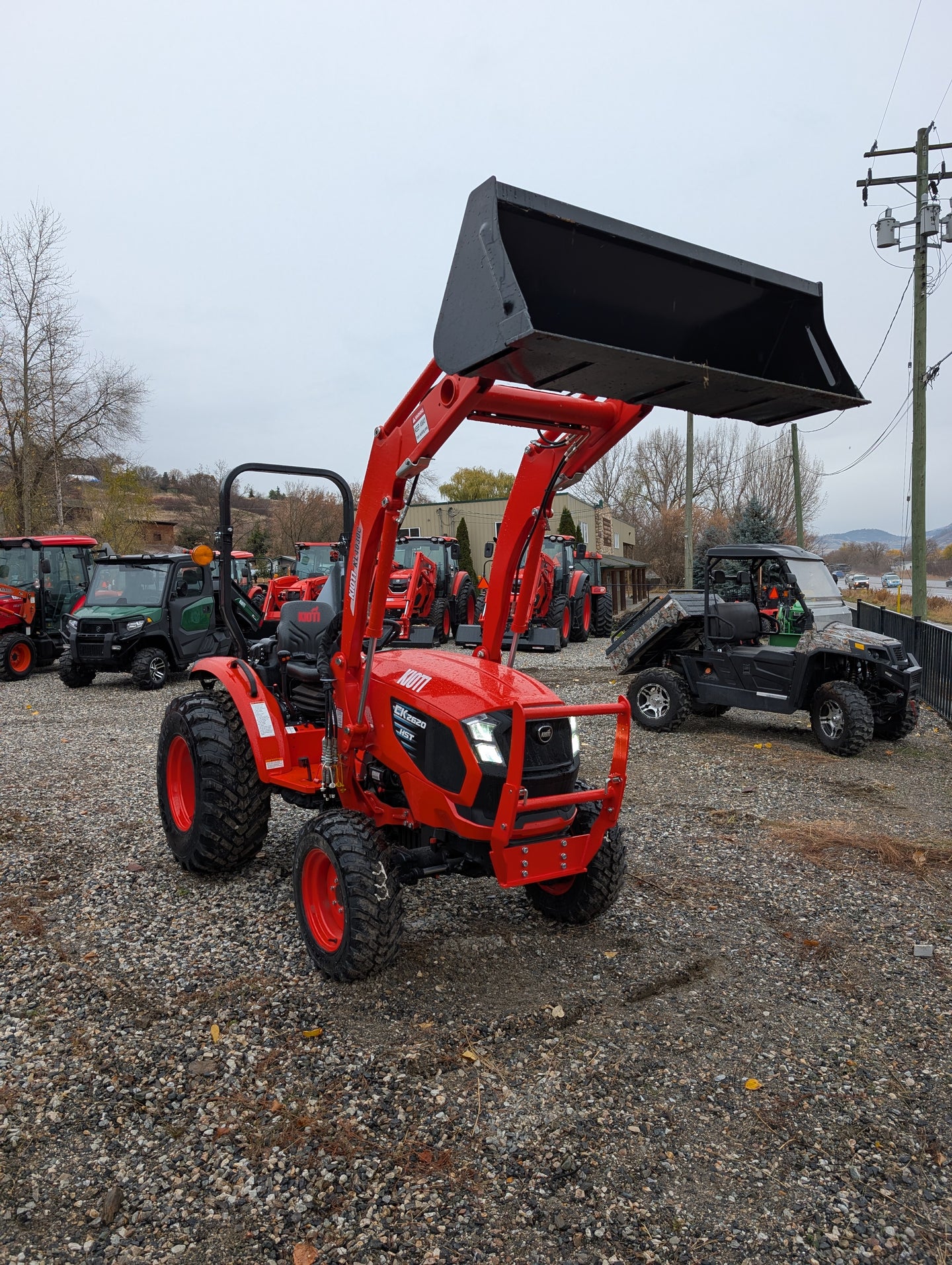

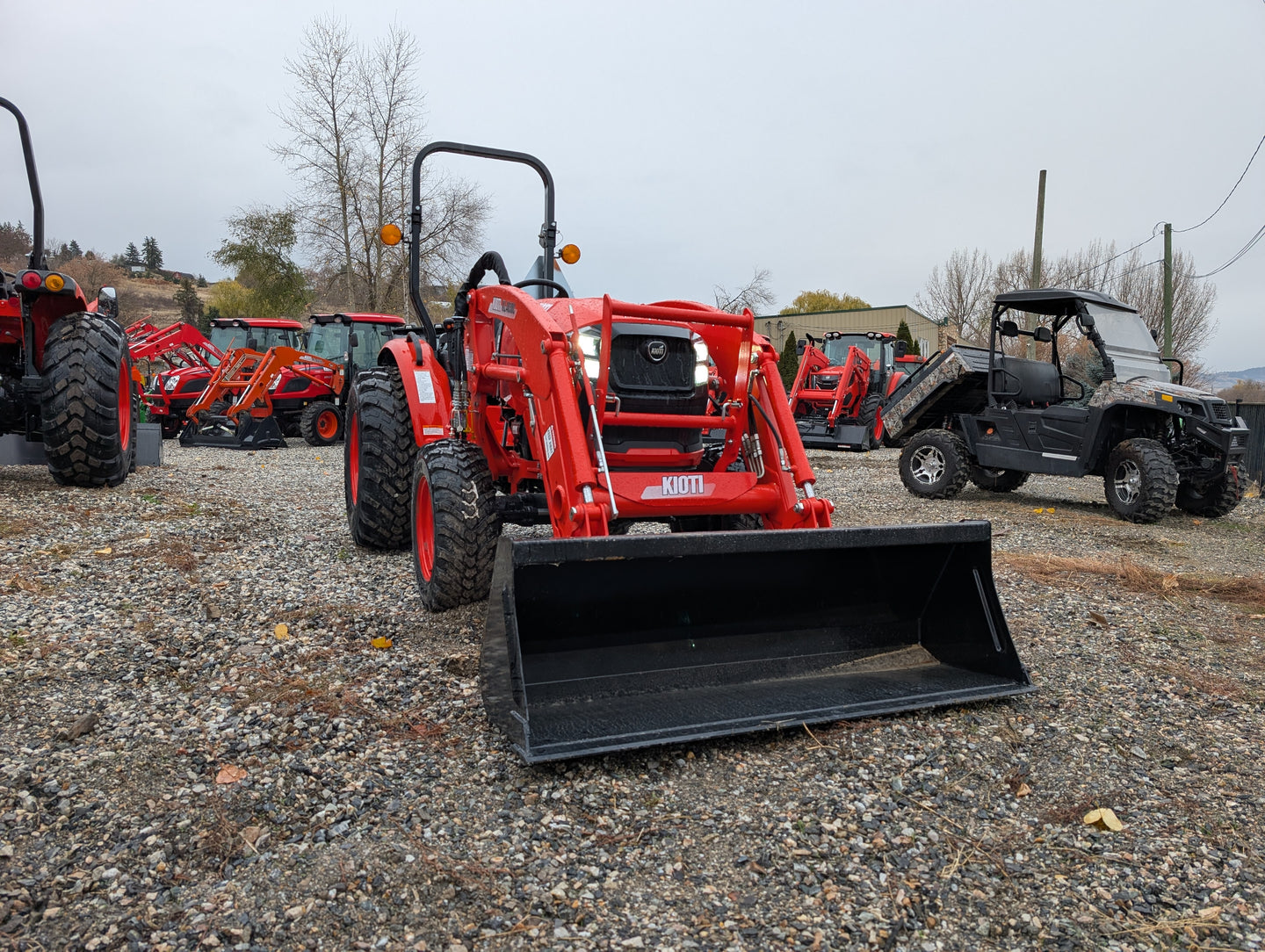

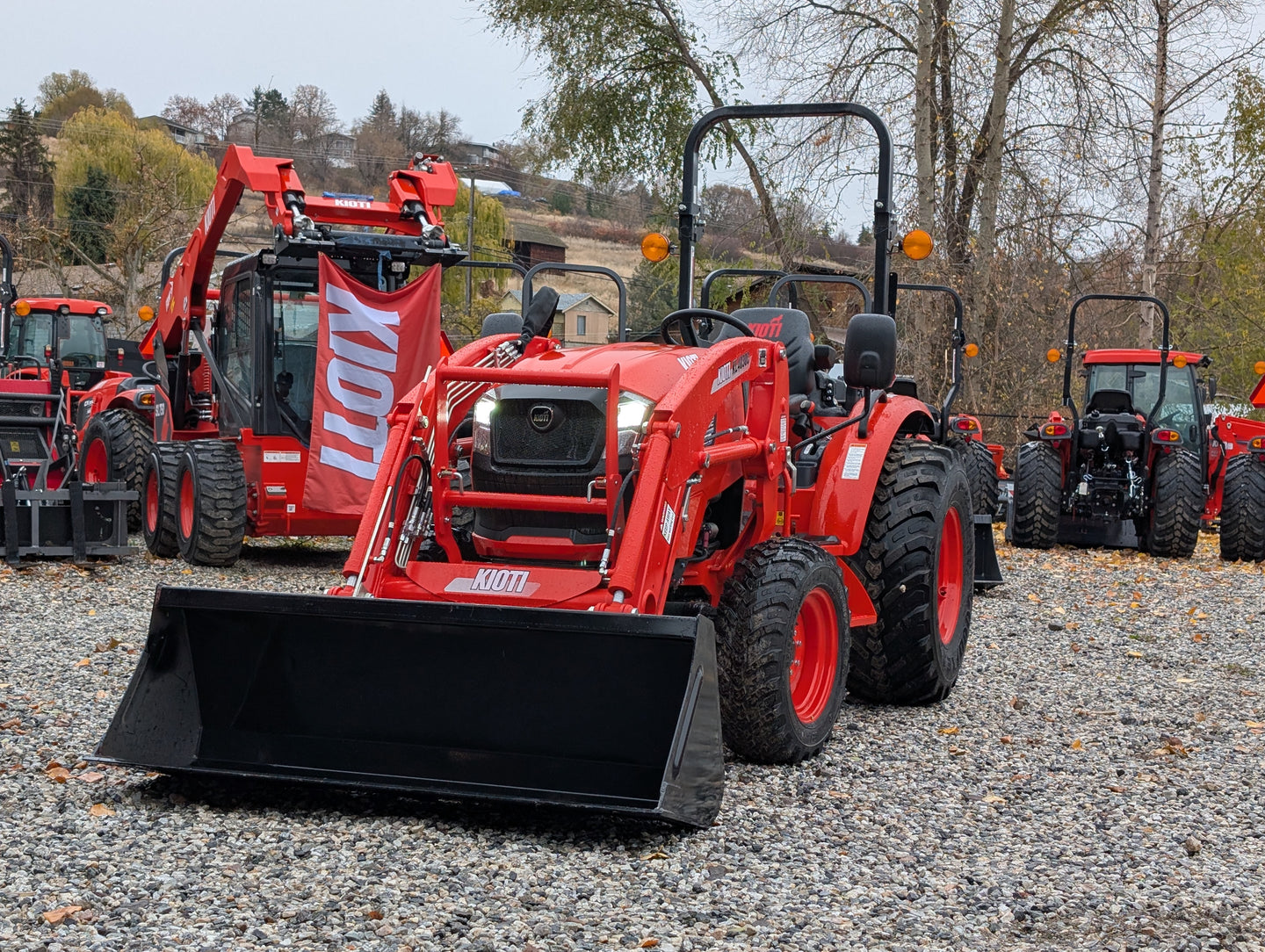

KIOTI CK2620 Manual ROPS Tractor (R14 Hybrid Tires)

The KIOTI CK2620 is a powerful and reliable compact utility tractor designed for operators who value the direct control and rugged efficiency of a manual transmission. This machine is perfectly sized for small farming operations, demanding property maintenance, and heavy landscaping, offering substantial power and lift capacity well beyond the sub-compact class.

The Manual Synchro Shuttle transmission and versatile R14 Hybrid Tires make the CK2620 a true year-round workhorse, ready for any job from tilling to heavy loader applications.

Precise Control and Reliable Power

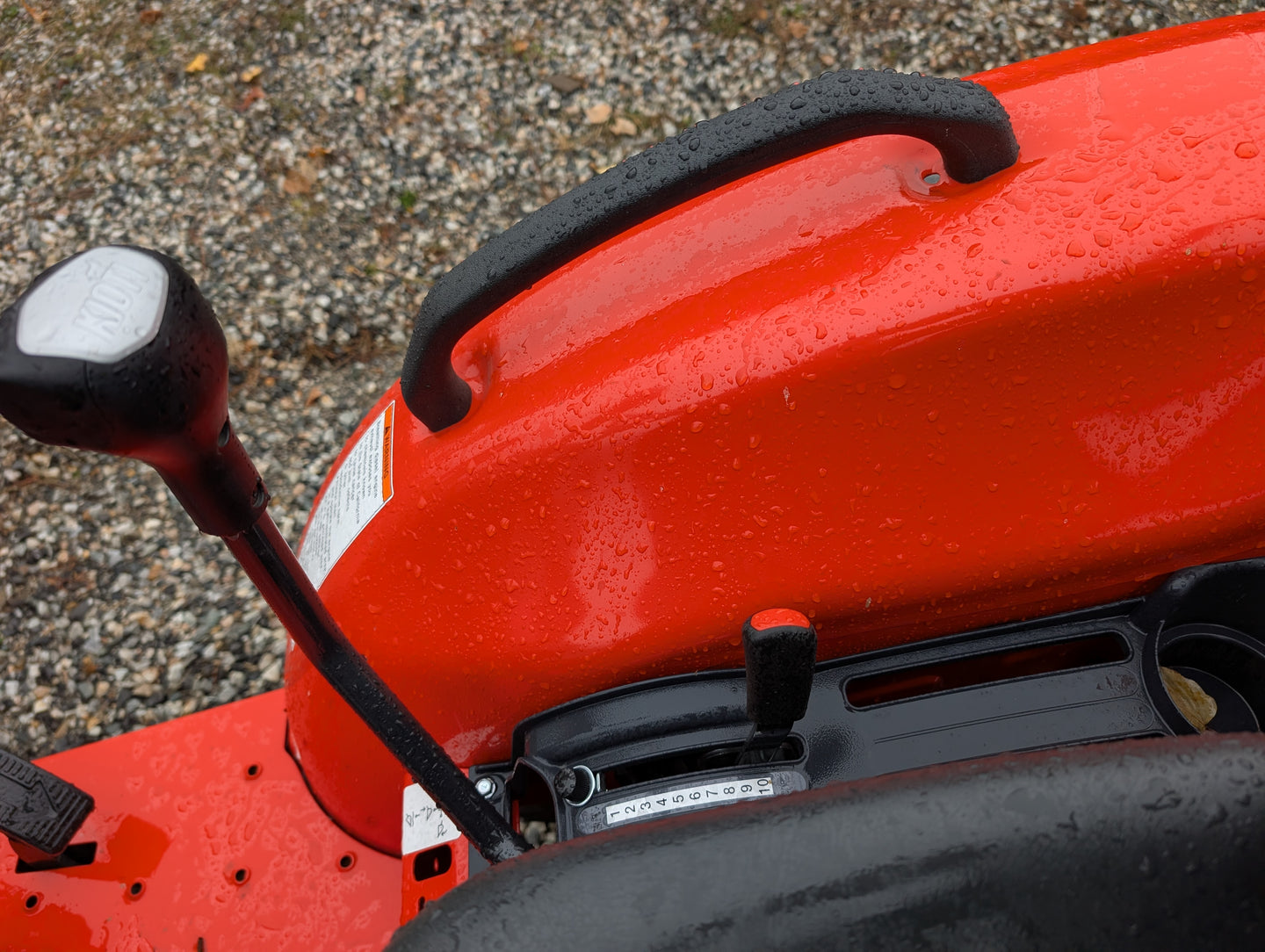

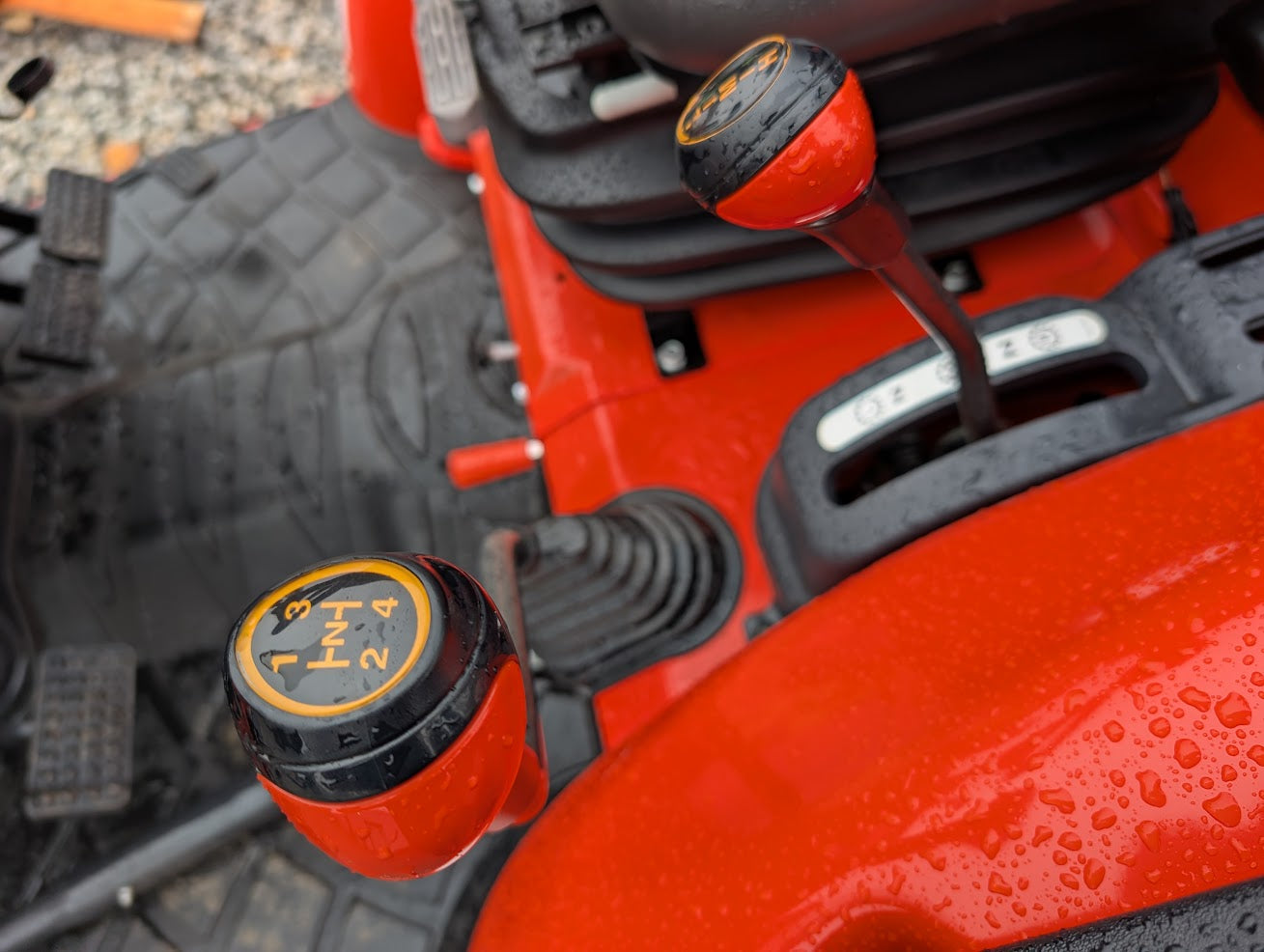

Manual Synchro Shuttle Transmission: Features a dependable Manual Synchro Shuttle Transmission (9 Forward x 3 Reverse gears). This configuration provides the operator with maximum control over gear selection and ground speed, which is often preferred for heavy pulling, hauling, and precision PTO work. The shuttle lever allows for quick, clutch-assisted directional changes.
Powerful Diesel Engine: Driven by a robust, fuel-efficient 24.5 HP (18.3 kW), 3-cylinder, water-cooled KIOTI diesel engine. This engine delivers high torque and consistent power output necessary for running demanding hydraulic and PTO-driven implements.
Standard 4WD and Power Steering: Equipped with simple-to-engage Four-Wheel Drive (4WD) for superior traction and stability, paired with responsive power steering for light and effortless handling.
R14 Hybrid Tires: These multi-purpose tires are the optimal choice, providing aggressive traction and grip for field work and tough conditions (like industrial tires), while offering a better ride and less severe turf disruption than pure R1 agricultural tires.

Versatility and Durability

High Lift Capacity: The Category I 3-point hitch provides a substantial maximum lift capacity of 1,631 lbs (740 kg) (at 24" aft. of hitch), easily accommodating heavier implements like larger tillers, box blades, and rotary cutters.

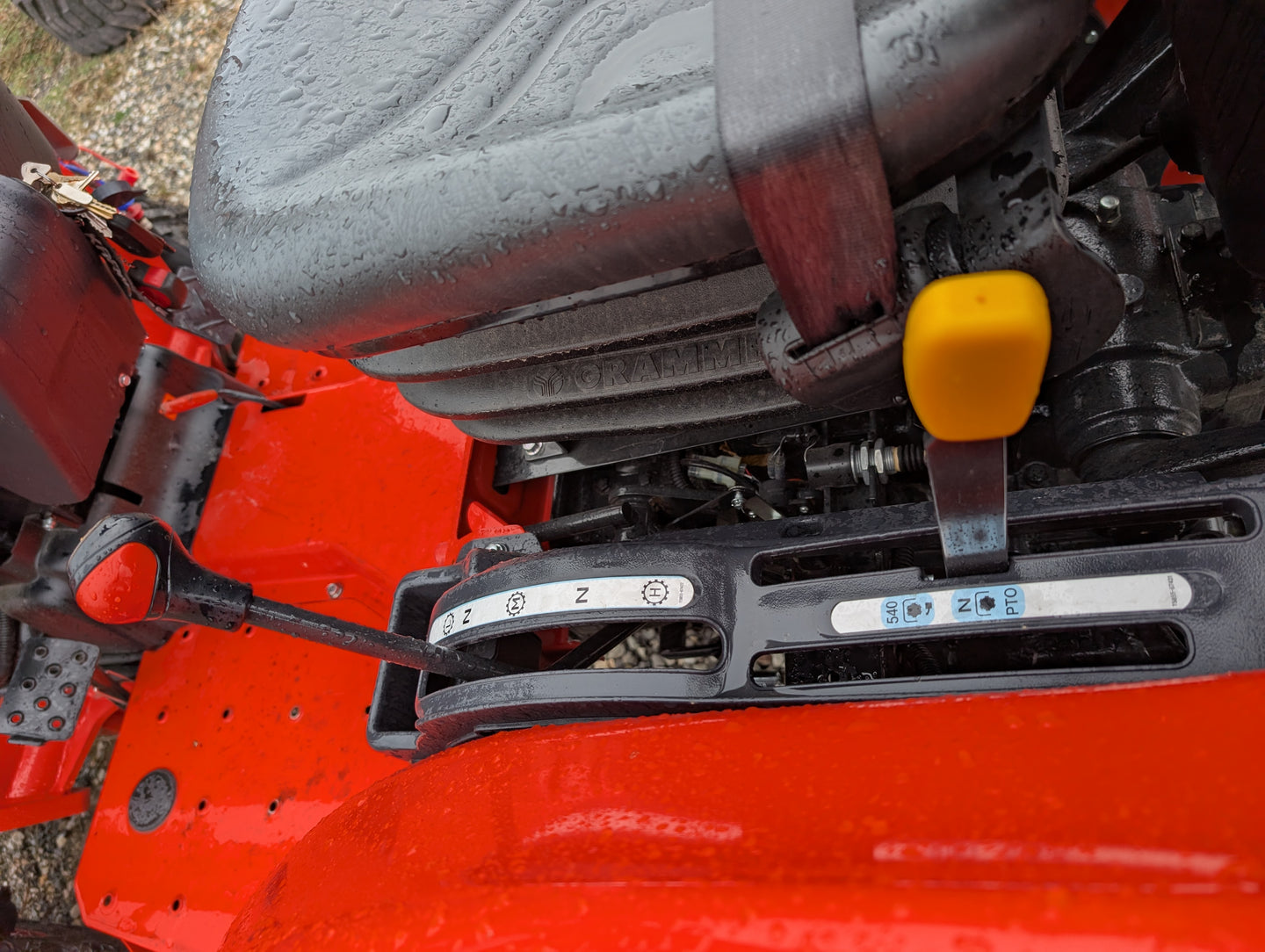

Independent PTO System: Features a powerful Rear PTO (540 rpm) and an Independent Mid PTO (2,000 rpm), ensuring maximum versatility and efficiency with dual-attachment setups.

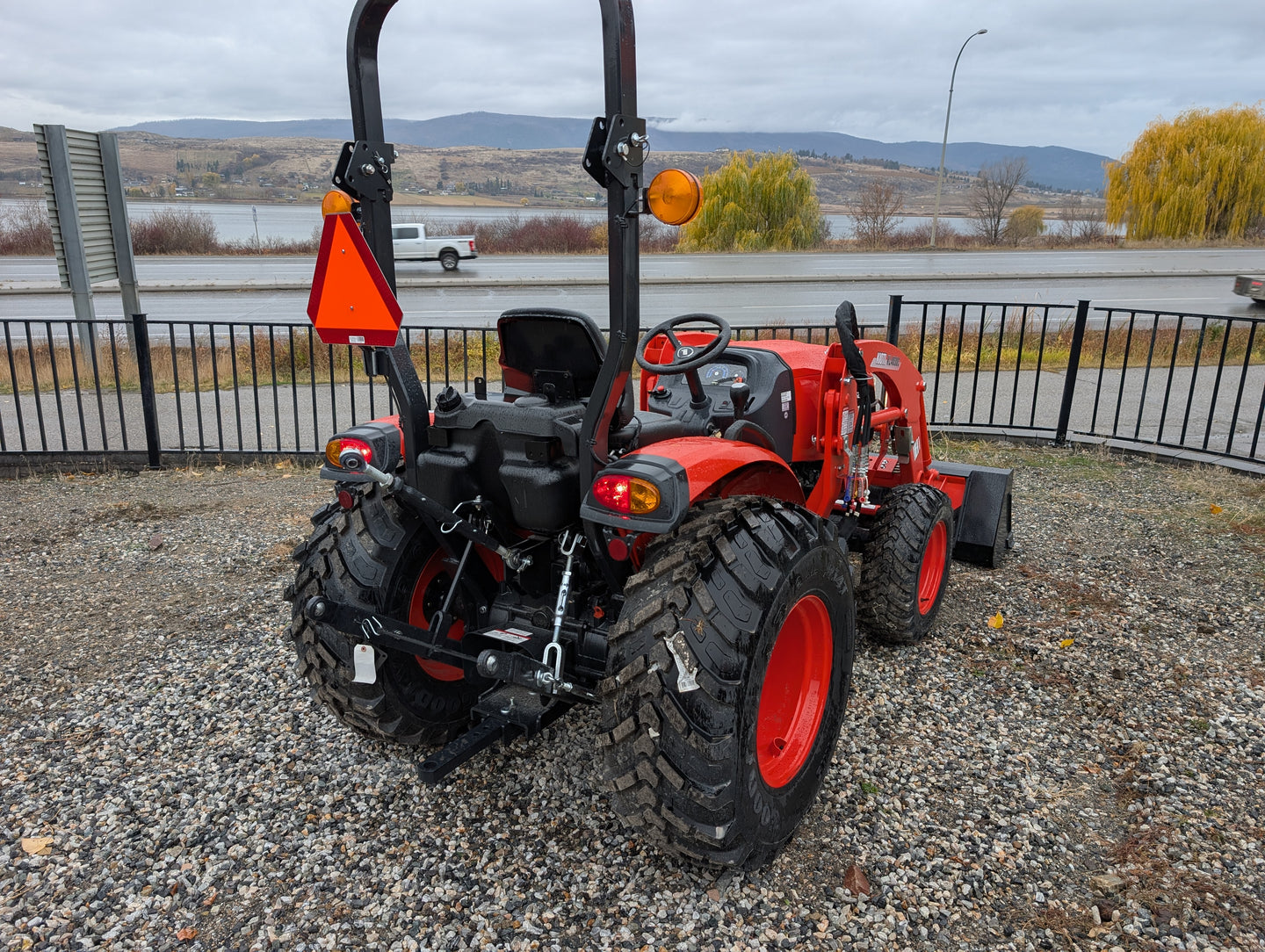

Foldable ROPS: The standard fold-down Roll-Over Protection Structure (ROPS) provides crucial operator safety while allowing the tractor to be stored in areas with lower overhead clearance.
High Ground Clearance: Excellent ground clearance allows the tractor to navigate uneven terrain, field rows, and obstacles without interference.

Key Specifications

Engine Model	3A165LWM-U
Engine Gross Power	24.5 hp (18.2 kW)
Rated Speed	2,400 rpm
No. of Cylinders	3
Fuel Type	Diesel
Aspiration	Natural
Displacement	100.5 cu. in. (1,647 cc)
Fuel Tank Capacity	9.0 gal. (34 L)

Transmission Type	9×3 Manual Transmission
Main Gear	Manual
No. of Travel Speeds – Forward / Reverse	9F/3R
Min. Travel Speed of Forward w/ Ag @ Engine rated speed	0.75 mph (1.21 km/h)
Max. Travel Speed of Forward w/ Ag @ Engine rated speed	9.79 mph (15.75 km/h)

Power Take-Off (PTO)

PTO Type Trans	Live
PTO Power	19.5 hp (14.5 kW)
Rear PTO Speeds (1st)	540 rpm
Mid PTO Speeds	2,000 rpm (optional)

Brakes and Clutch

Brakes	Wet Multi Disc
Clutch	Dry Dual Stage

Dimensions w/ AG Tire

Length w/ 3-point hitch	120.87 in. (3,070 mm)
Width	54.5 in. (1,385 mm)
Height from Top of ROPS	92.91 in. (2,360 mm)
Wheelbase	65.7 in. (1,670 mm)
Ground Clearance	13.39 in. (340 mm)
Front Tread Ag Tires – Min	48.22 in (1,225 mm)
Rear Tread Ag Tires – Min	47.04 in. (1,210 mm)
Min. Turning Radius w/ Brake	107.48 in. (2,730 mm)

Hydraulics

Total Pump Flow

11.73 gpm (44.4 L/min)

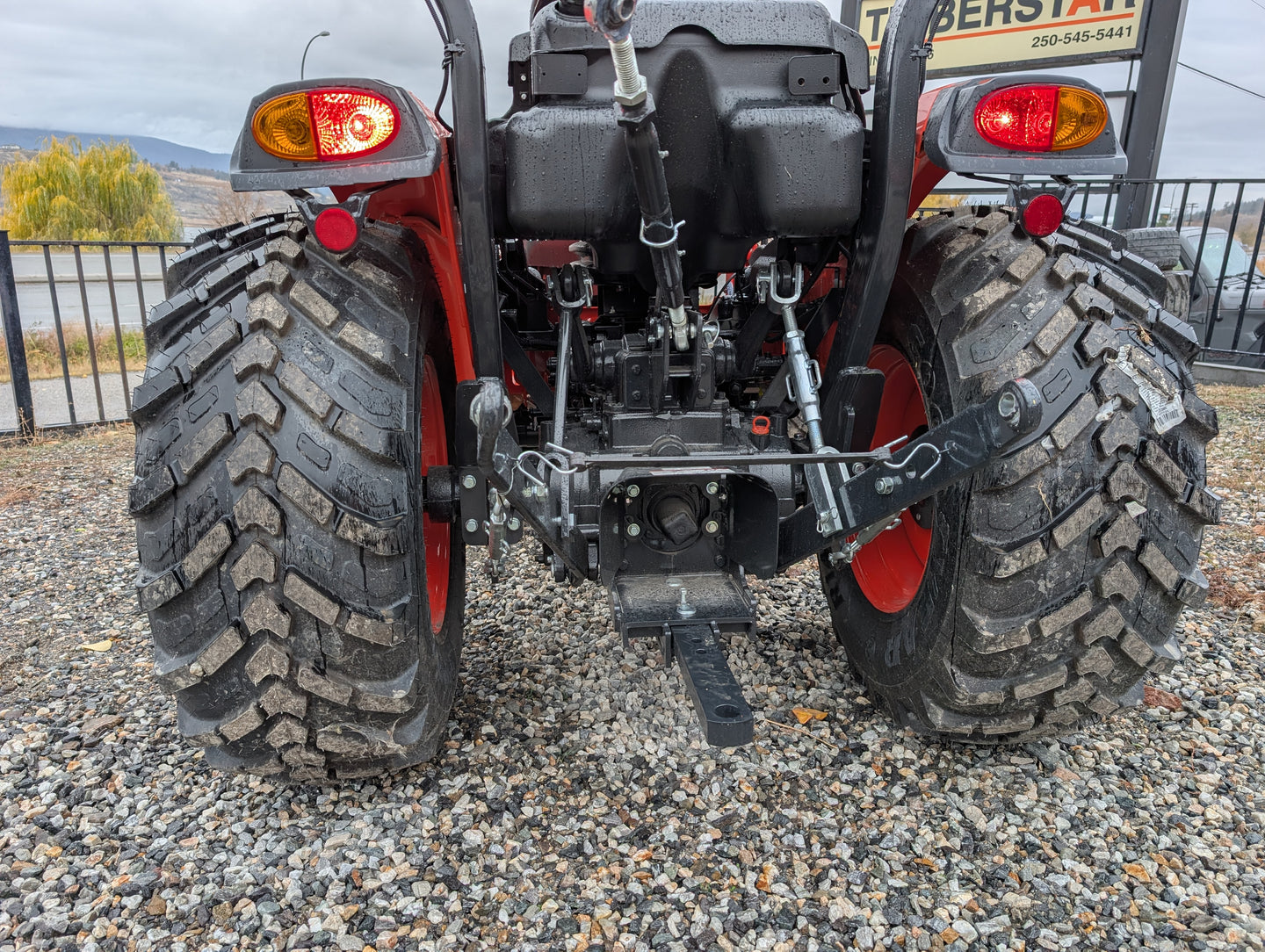

3-Point Hitch

Standard Category	Category 1
Lift Capacity, 24″ aft of hitch	1,631 lbs. (740 kg)
Control Type	Position

Weight

Weight w/ Ag Tires w/ ROPS

2,635 lbs. (1,195 kg)

Equipment & Panel

Standard Equipment	Optional Equipment	Instrument Panel
Power Steering Rear PTO Wet Multi Disc Brakes Joystick Valve Drawbar Headlights Parking Brake PTO Shield	Front Weights Mid PTO Clevis Type Drawbar Side View Mirror (1 ea) Dual Remote Hydraulic Valve (Non-Detent) Dual Remote Hydraulic Valve (Spring/Detent/Dual Detent) Rear Wheel Weight (Ag Tire Only) 3rd Function Kit for Front End Loader	Digital Hour Meter Coolant Temperature Gauge Electrical Tachometer Fuel Gauge Engine Oil Pressure Light High Beam, Emergency Flasher, Direction Indicators Glow Plug Light Alternator Light
