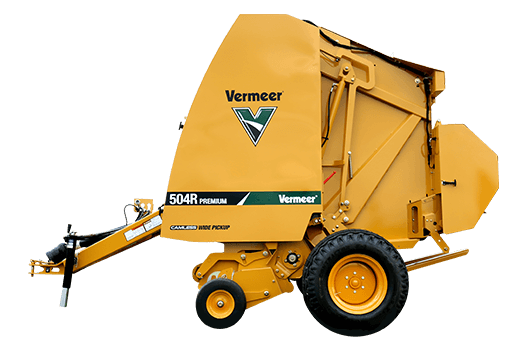

Vermeer 504R Premium Round Baler – 4' x 5', Twine, Netwrap, Ramp, Rock Belts, Floats [504652431]

Vermeer 504R Premium Round Baler is a variable-chamber round baler configured for producing consistent 4-ft-wide bales with adjustable diameters from 36 to 60 inches. This 4-ft x 5-ft package includes twine, standard netwrap, a spring-loaded bale ramp, standard rock belts and flotation tires as listed. With a 60-inch five-bar camless pickup, standard silage kit, moisture sensing and Atlas Pro control, the 504R Premium is designed for hay and high-moisture baling applications where bale shape, density and wrapping flexibility matter.

Built for Consistent Bale Formation

The Vermeer 504R Premium uses a variable-chamber design to produce bales from 36 to 60 inches in diameter and 47 inches wide. Its 60-inch camless pickup helps gather windrows, while standard bale-shape indicators support consistent bale formation during operation. The six-belt system is available with premium mini rough-top or endless belt configurations, and standard rock belts are included on the 504R Premium.

Controls, Moisture Sensing and Silage Capability

An Atlas Pro control system with a 7-inch color touchscreen provides operator control and bale information from the tractor cab. Standard moisture sensing measures moisture up to 29%, helping monitor baling conditions. The standard silage kit supports high-moisture hay and baleage applications, while the standard netwrap system provides a wrapping option for completed bales. This configured package also includes a twine system.

Configured Package Features

• Variable-chamber baling with 36–60-inch adjustable bale diameter
• 47-inch bale width
• 60-inch five-bar camless wide pickup
• Hydraulic pickup lift
• Standard silage kit
• Atlas Pro control system with 7-inch color touchscreen
• Standard moisture sensing up to 29%
• Standard bale-shape indicators
• Six premium mini rough-top or endless belts
• Standard rock belts
• Standard netwrap system
• Twine system included in the listed configuration
• Spring-loaded bale ramp
• Flotation tires included in the listed configuration
• 540-rpm driveline with extended lubrication and friction clutch
• Standard grease bank
• Optional Auto Lube greasing system available

Specifications

Tractor Requirements

The Vermeer 504R Premium requires a tractor with a minimum 55 PTO horsepower (41 kW). Vermeer recommends 65 PTO horsepower (48.5 kW) for operation. The baler uses a 540-rpm driveline. Hydraulic pickup lift is standard, and bale-density adjustment is made through a hydraulic relief valve. Additional tractor hydraulic flow and pressure requirements were not published in the available specifications.

Compatibility

This package is configured for the Vermeer 504R Premium and produces bales measuring 36–60 inches in diameter by 47 inches wide. The supplied configuration represents a package with twine, netwrap, ramp, rock belts and flotation tires; equipment availability and configuration should be confirmed for the specific unit.
