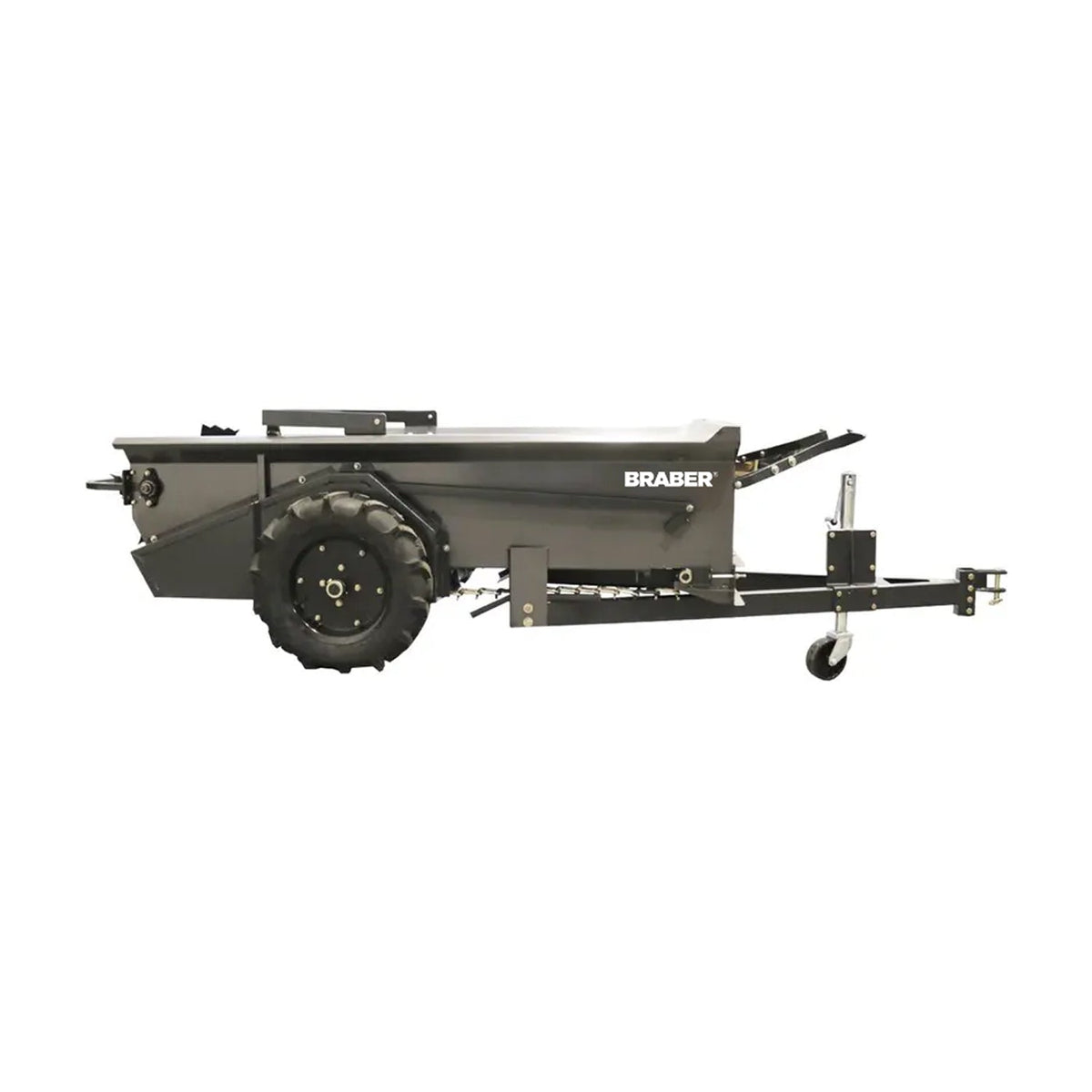

BRABER - 23-Bushel Tow-Behind Manure Spreader - Ground-Driven Beater & Apron - Adjustable Hitch - 29 cu. ft. Capacity, 400 lb Empty Weight [BE-23MS]

The BRABER BE-23MS 23-Bushel Tow-Behind Manure Spreader is a two-wheel, ground-driven manure spreader designed to tow behind a tractor or ATV for loading, hauling, and distributing manure across pasture and field. Its 29 ft³ load capacity, adjustable hitch, ground-driven beater and apron, durable welded steel construction, and transport end gate provide a practical configuration for routine manure-handling work. With a 400 lb weight including tires and a 27.5 in loading height, the BE-23MS combines useful capacity with a compact design for tow-behind operation.

Built for Ground-Driven Spreading

The BE-23MS uses a two-wheel ground-driven system, so the beater and apron operate through the spreader’s ground-driven mechanism. An 18 in steel beater fitted with eight replaceable paddles helps process material as it moves through the spreader. The 5/16 in T-rod apron chain is gold-zinc plated and works with the high-density poly-vinyl 3/4 in apron bed to support the movement of material toward the beater.

An adjustable chain tensioner supports adjustment of the apron system, while greaseable wheel hubs simplify routine service. The adjustable hitch helps configure the spreader for tow-behind use with a tractor or ATV. Specific towing vehicle requirements are not stated in the manufacturer specifications.

Durable Construction and Practical Handling

The spreader features fully welded 12-gauge steel construction and an industrial powder-coated finish. These construction details provide a robust frame for manure-handling applications. The transport end gate helps contain material during transport, while the 27.5 in loading height provides a defined height for loading operations.

A swivel jack rated at 2,000 lb supports the front of the spreader when it is not connected for towing. The unit measures 77 in × 28 in × 16.7 in and weighs 400 lb with tires.

Key Features

• 23-bushel manure spreader designation
• 29 ft³ load capacity
• Two-wheel, ground-driven operation
• Adjustable hitch for tow-behind use
• Fully welded 12-gauge steel construction
• Industrial powder coating
• 18 in steel beater
• Eight replaceable beater paddles
• 5/16 in T-rod, gold-zinc-plated apron chain
• High-density poly-vinyl 3/4 in apron bed
• Adjustable chain tensioner
• Transport end gate
• Greaseable wheel hubs
• Swivel jack rated at 2,000 lb
• 27.5 in loading height

Specifications

Compatibility and Towing Use

The BRABER BE-23MS is intended for tow-behind use with a tractor or ATV. It uses ground-driven operation rather than a specified PTO or hydraulic drive system. Specific towing vehicle requirements are not stated in the manufacturer specifications.
