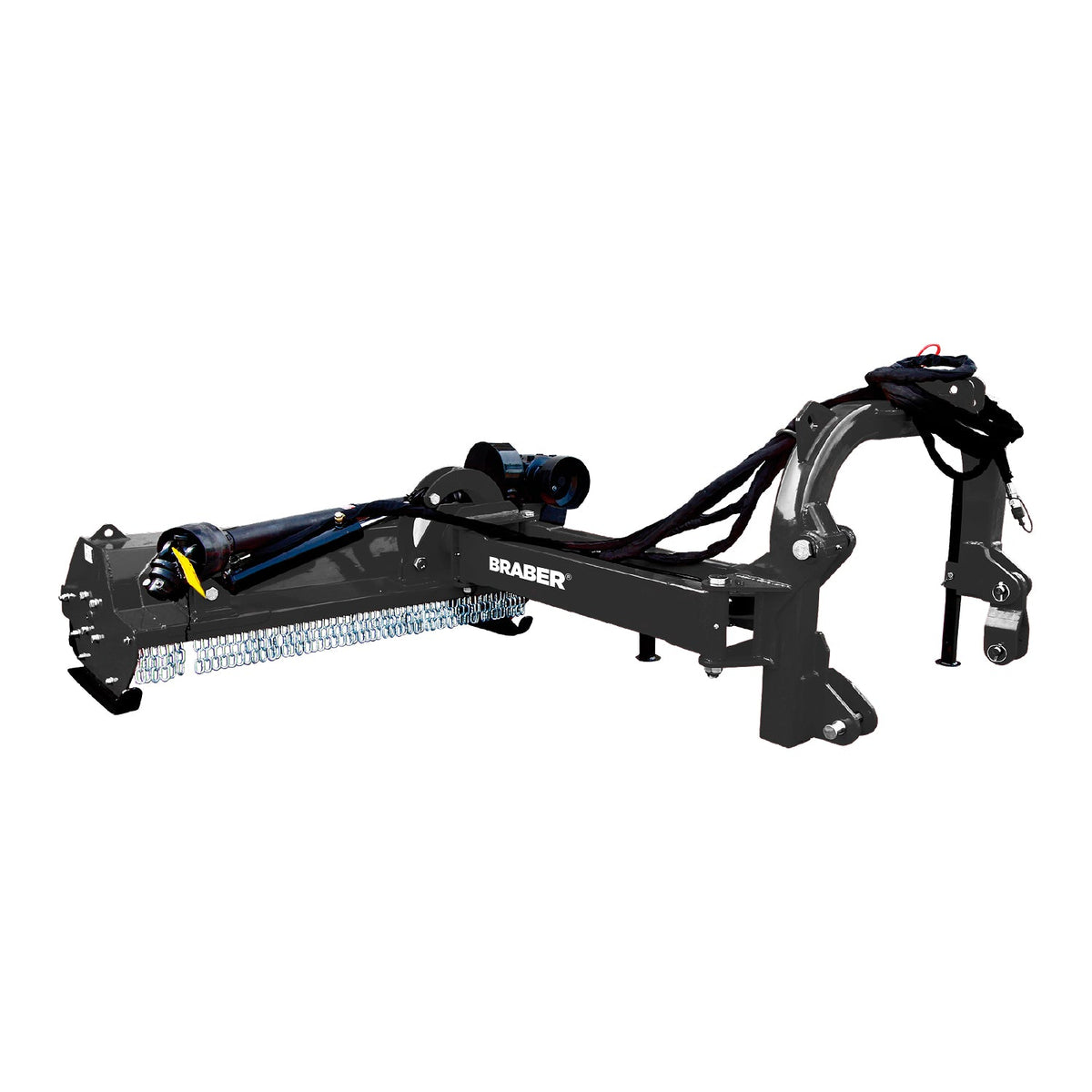

BRABER - 56" 3-Point PTO Offset Boom Flail Mower - 24 Hammer Blades, Hydraulic Tilt & Offset - 540 RPM PTO, 30-50 HP [BE-AGL145F]

The BRABER BE-AGL145F 56" 3-Point PTO Offset Boom Flail Mower is designed to cut where a conventional mower cannot easily reach, including ditch banks, road verges, slopes, hedges, orchards, and vineyards. Its hydraulic tilt range of +90° to -53° and hydraulic lateral offset allow the mower to follow challenging terrain and work beside the tractor. Powered by a 540 RPM PTO and intended for tractors rated from 30 to 50 HP, this Category 1 implement combines 24 hammer blades, a full-width rear roller, and a cast-iron gearbox for versatile vegetation maintenance and flail mowing performance.

Versatile Offset and Slope Cutting

The BE-AGL145F is a 3-point PTO offset boom flail mower built for mowing areas that are difficult to access with a standard rear-mounted mower. Hydraulic tilt adjusts the cutting position from +90° to -53°, helping the mower follow ditch banks, slopes, and other uneven areas. The hydraulic offset hitch provides lateral positioning for cutting alongside the tractor and reaching roadside verges, hedges, orchard rows, and vineyard areas.

Flail Cutting Performance

Twenty-four hammer blades provide the primary cutting action for grass, weeds, light brush, and similar vegetation. Optional grass knives are also supported as a cutting-tool configuration. A full-width rear roller helps support the mower across the working area, while the cast-iron gearbox is built into the power-transfer system for the 540 RPM PTO drive.

Key Features

• 56-inch working width for maintaining grass, weeds, light brush, verges, and other overgrown areas
• Hydraulic tilt range from +90° to -53°
• Hydraulic lateral offset hitch for reaching beside the tractor
• 24 hammer blades
• Optional grass knives
• Full-width rear roller
• Cast-iron gearbox
• 540 RPM PTO drive
• Category 1 3-point hitch
• Designed for tractors rated from 30 to 50 HP

Applications

The BRABER BE-AGL145F is suited to vegetation management in areas where reach, positioning, and cutting-angle control are important. Recommended applications include ditch banks, road verges, slopes, hedges, orchards, vineyards, grass, weeds, and light brush. The hydraulic tilt and offset functions allow the operator to position the mower for these applications without relying on a fixed, straight-behind cutting position.

Tractor Requirements and Compatibility

This mower is compatible with tractors equipped with a Category 1 3-point hitch, a 540 RPM PTO, and a rated power output of 30-50 HP. The tractor must also have hydraulic remotes to operate the mower’s hydraulic tilt and hydraulic offset functions.

Specifications
