KIOTI CX2510 Manual ROPS Tractor with R14 Tires

SKU KTT-CX2510-R14

Regular price: $22,472.⁰⁰

Regular price: $22,472.⁰⁰

Add your machine and attachments to the cart to begin to build and price your package!

When you're ready to take the next step, please reach out to us for a quote.

*Pricing shown at MSRP and may not include available Timberstar Tractor or Manufacturer discounts.
*Finance rates, payment calculations, whether or not you need a down payment, all available through our sales staff.
*Pricing may not include freight, assembly, finance, delivery, or pdi fees.
*Manufacturer pricing subject to change without notice.
*Manufacturer sales promotions valid unitl the end of the month they were issued in.
*Price match available for many brands we carry.

Description

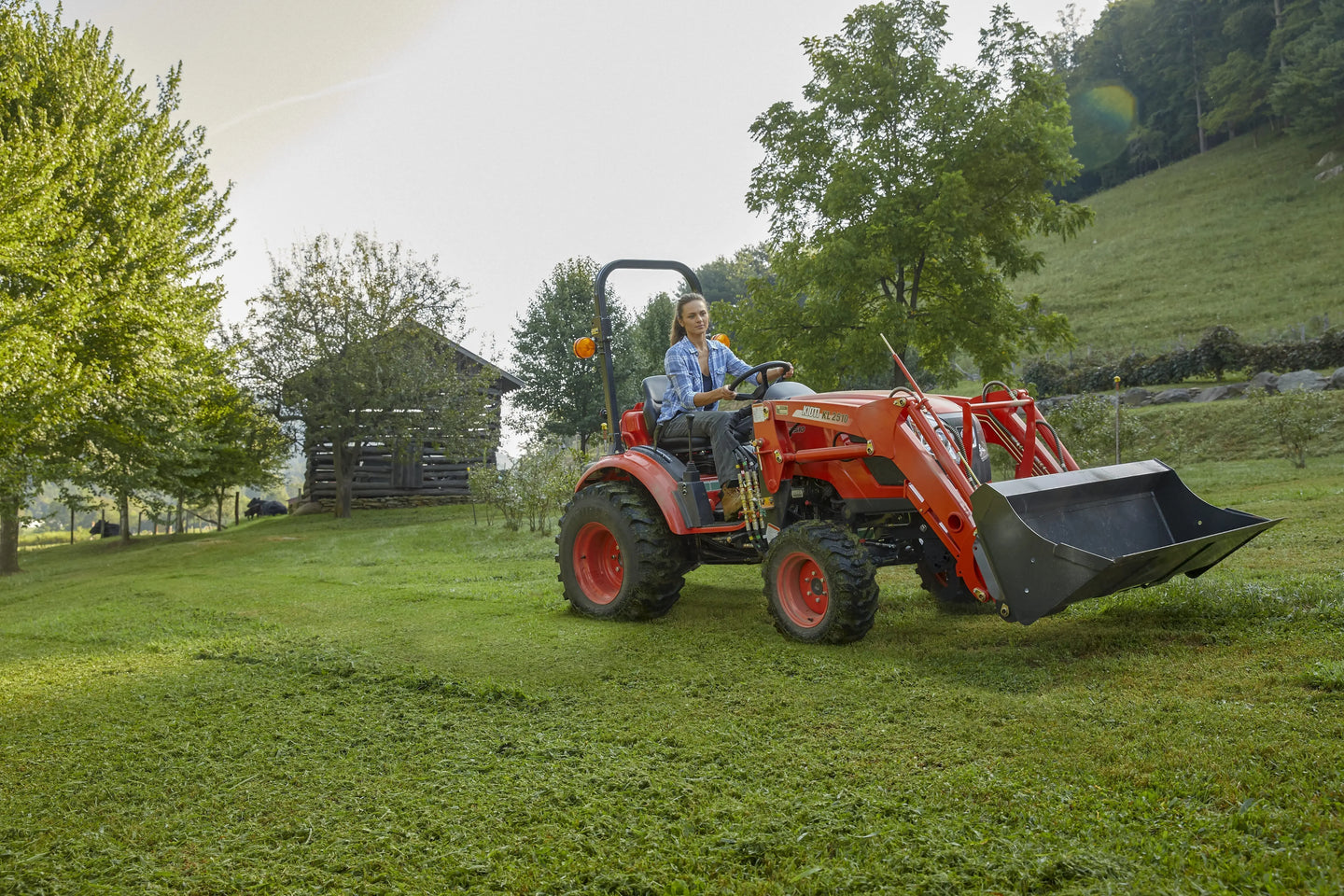

KIOTI CX2510 Manual ROPS Tractor

The KIOTI CX2510 is the ideal compact tractor for property owners and small farms seeking a powerful, mid-sized machine without the complexity of a hydrostatic transmission. This tractor offers the renowned durability and power of the KIOTI brand in a highly versatile platform, perfectly sized for extensive mowing, loader work, and heavier tillage tasks.

Equipped with a dependable manual transmission and a standard Roll-Over Protection Structure (ROPS), the CX2510 is ready to deliver maximum power and precise control when you need it most.

Reliable Power and Manual Control

Powerful Diesel Engine: Driven by a robust, fuel-efficient 24.5 HP (18.3 kW), 3-cylinder, water-cooled KIOTI diesel engine. This Tier 4 compliant engine provides excellent torque and the reliable power needed for demanding PTO and hydraulic applications.
Manual Synchro Shuttle Transmission: Features a Manual Synchro Shuttle Transmission (8 Forward x 8 Reverse gears). This traditional transmission provides the operator with maximum control over gear selection, speed, and torque, often preferred for heavy pulling and hauling tasks. The shuttle lever allows for quick, clutch-assisted changes between forward and reverse.
Standard 4WD: Equipped with a selectable Four-Wheel Drive (4WD) system, ensuring superior traction and stability across varied terrain, mud, and uneven ground.
Standard Power Steering: Reduces operator fatigue and ensures easy maneuverability, making tight turns and maneuvering around obstacles effortless.

Versatility and Operator Comfort

High Performance PTO: Features a powerful Rear PTO (540 rpm) and an Independent Mid PTO (2,000 rpm), allowing for the efficient use of both mid-mount mowers (up to 60 inches) and heavy-duty rear implements.
Excellent Lift Capacity: The Category I 3-point hitch provides a substantial lift capacity (typically around 1,631 lbs), accommodating larger and heavier implements than those handled by sub-compact models.
Foldable ROPS: The standard fold-down Roll-Over Protection Structure (ROPS) provides crucial operator safety while allowing the tractor to be stored in areas with lower overhead clearance.
Open Operator Station: The uncluttered operator platform features an ergonomic control layout, an adjustable seat, and an easy-to-read instrument panel for comfortable, all-day operation.

Key Specifications (Approximate)

Engine

Engine Model	3A165LWH-U
Engine Gross Power	24.5 hp (18.2 kW)
Rated Speed	2,600 rpm
No. of Cylinders	3
Fuel Type	Diesel
Aspiration	Natural
Displacement	87 cu. in (1,647 cc)
Fuel Tank Capacity	6.6 gal. (25L)

Transmission

Transmission Type	6X2 Manual Transmission
Main Gear	Manual
No. Travel Speeds	6F/2R
Min. Travel Speed	0.75 mph (1.22 km/h)
Max. Travel Speed	10.8 mph (19.07 km/h)

Power Take-Off (PTO)

PTO Type Transmission	Manual
PTO Power	19.3 hp (14.4 kW)
Rear PTO Speeds	540 rpm
Mid PTO Speeds	2,000 rpm (Optional)

Brakes and Clutch

Brakes	Wet Disc Type
Clutch	Dry Single Stage

Dimensions w/ Ag Tire

Length w/ 3-point	109.08 in. (2,790 mm)
Width	49.4 in. (1,256 mm)
Height from Top of ROPS	82.8 in. (2,103 mm)
Wheelbase	59.8 in. (1,520 mm)
Ground Clearance	13.4 in. (340 mm)
Front Tread Ag Tires – Min	38.1 in. (968 mm)
Rear Tread Ag Tires – Min	37.4 in. (951 mm)
Min. Turning Radius w/Brake	8.3 ft. (2.53 m)

Hydraulics

Total Pump Flow

11.3 gpm (42.9 L/min)

3-Point Hitch

Standard Category	Category 1
Lift Capacity, 24″ aft of hitch	1,203 lbs (546 kg)
Control Type	Position

Weight

Weight w/ Ag Tires w/ROPS

2,260 lbs. (1,025 kg)

The KIOTI CX2510 Manual ROPS Tractor is the durable, powerful, and reliable choice for operators who prefer the control and efficiency of a manual transmission in a highly versatile compact utility machine.
