HLA Attachments - Regular Duty Euro / Global Quick Fit Plate - Loader Quick-Attach Adapter [LA-BOQF10AO600]

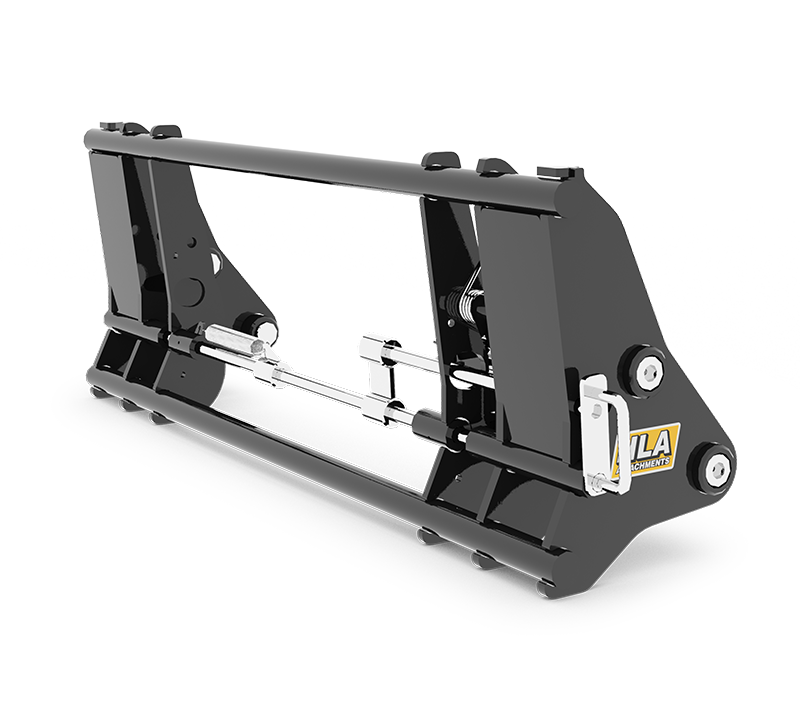

HLA Attachments BOQF10AO600 Regular Duty Euro / Global Quick Fit Plate is a loader quick-attach adapter designed to connect universal skid-steer quick-attach attachments to a compact or mid-size loader equipped with a Euro / Global carrier. Rated for a capacity of 3,500 lb, this adapter provides a practical way to use skid-steer-compatible buckets and other attachments without replacing the loader’s existing Euro / Global carrier. Its manual, spring-loaded over-centre lever lock supports straightforward attachment changes, while the included new pins help provide the necessary connection hardware.

Convert a Euro / Global Carrier to Universal Skid-Steer Quick Attach

The BOQF10AO600 places an AO600 Euro / Global interface on the loader side and a universal skid-steer quick-attach interface on the attachment side. It is compatible with Euro / Global carrier systems, including Alo / Quicke and John Deere Global-style interfaces. This configuration is intended for operators who have a Euro / Global-equipped loader but need access to universal skid-steer attachments.

This is HLA Attachments’ regular-duty adapter configuration for compact to mid-size loaders. It has a 3,500 lb rated capacity and weighs approximately 135 lb, offering a purpose-built interface without unnecessary complexity. Universal quick-fit plates are designed around a 65-degree skid-steer bucket slope, an important geometry consideration when selecting and operating compatible attachments.

Manual Over-Centre Locking

The standard BOQF10AO600 uses a spring-loaded over-centre lever lock to secure compatible attachments. This mechanical locking system provides a direct, manual method of engaging the attachment-side quick-attach mechanism. New pins are included with the adapter.

For applications where in-cab or hydraulic operation is preferred, HLA Attachments also lists the BOQF10HYD optional hydraulic activation configuration. Hydraulic flow and pressure requirements for that option are not published, so hydraulic suitability should be confirmed before selecting the hydraulic version. The BOQF10AO600 described here is supplied with standard manual locking.

Key Features

• Regular-duty loader quick-attach adapter from HLA Attachments
• Converts a Euro / Global loader carrier to accept universal skid-steer quick-attach attachments
• AO600 Euro / Global loader-side interface
• Compatible with Euro / Global carriers, including Alo / Quicke and John Deere Global-style interfaces
• Designed for compact to mid-size loaders
• 3,500 lb rated capacity
• Spring-loaded over-centre lever locking mechanism
• Approximately 135 lb adapter weight
• Comes complete with new pins
• Optional hydraulic activation available under code BOQF10HYD
• Universal quick-fit plate geometry designed around a 65-degree skid-steer bucket slope

Compatibility

Loader side: Designed for loaders fitted with a Euro / Global carrier using the AO600 interface. Supported carrier styles include Alo / Quicke and John Deere Global-style interfaces.

Attachment side: Accepts universal skid-steer quick-attach attachments. Attachment compatibility, geometry, weight, and operating load should be considered together with the loader and adapter capacities.

Recommended loader class: Intended for compact to mid-size loaders.
