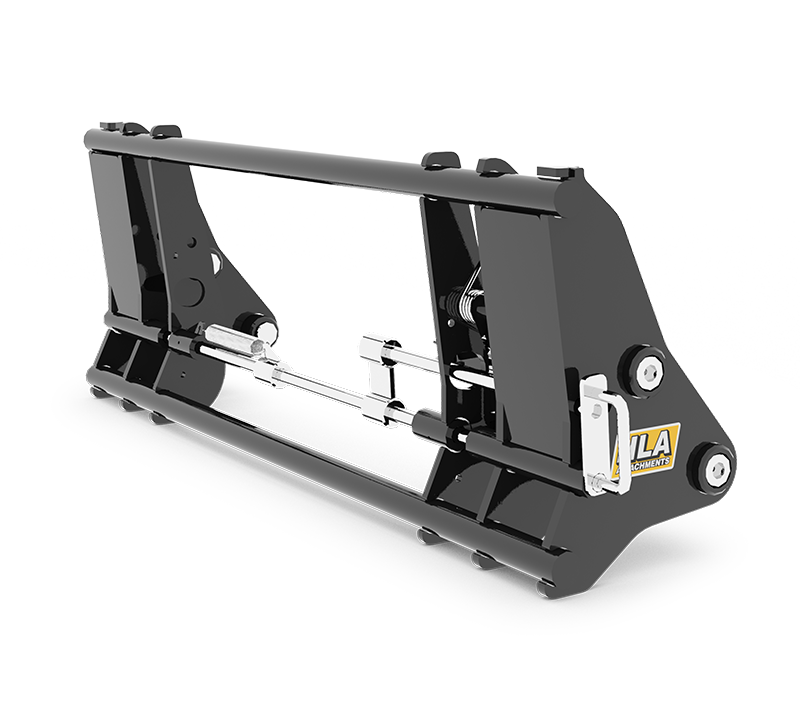

HLA Attachments - Heavy Duty Universal Quick Fit Plate with Tilt - Loader Quick-Attach Adapter [LA-BOQF10H3PHT]

HLA Attachments Heavy Duty Universal Quick Fit Plate with Tilt transforms a Category 1 or Category 2 three-point hitch into a universal skid-steer quick-attach interface. Designed for heavy-duty attachment handling, model BOQF10H3PHT allows compatible universal skid-steer attachments to be used behind a tractor while adding hydraulic tilt control. Its 5,500 lb rated capacity, robust construction, and included 4 in × 8 in stroke hydraulic cylinder make it a practical adapter for operators who want to expand attachment versatility without changing equipment platforms.

Heavy-Duty Attachment Versatility

This quick-fit plate provides a connection between two commonly used mounting systems. The tractor side mounts to either a Category 1 or Category 2 three-point hitch, while the attachment side accepts universal skid-steer quick-attach attachments. It is suited to operations that already own universal skid-steer attachments and want the flexibility to use them with a compatible three-point-hitch tractor.

The adapter is rated for a capacity of 5,500 lb and weighs approximately 500 lb. Its heavy-duty design supports demanding applications while providing a straightforward way to make more use of an existing attachment inventory.

Hydraulic Tilt Function

Unlike a fixed quick-fit plate, the BOQF10H3PHT incorporates hydraulic tilt. The included hydraulic cylinder has a 4 in bore and 8 in stroke, giving the operator powered tilt adjustment when connected to a suitable tractor hydraulic supply. This allows the attachment angle to be adjusted hydraulically rather than relying solely on the tractor’s three-point-hitch positioning.

Hydraulic hoses are not included and must be supplied separately for the tractor and installation. HLA Attachments does not publish specific hydraulic flow or pressure requirements for this model.

Key Features

• Converts a three-point hitch to a universal skid-steer quick-attach interface
• Compatible with Category 1 and Category 2 three-point hitches
• Accepts universal skid-steer quick-attach attachments
• Heavy-duty construction for demanding attachment applications
• 5,500 lb rated capacity
• Hydraulic tilt for powered attachment-angle adjustment
• Includes a 4 in × 8 in stroke hydraulic cylinder
• Approximately 500 lb adapter weight
• Hydraulic hoses are not included

Compatibility

On the tractor side, this adapter is designed for Category 1 and Category 2 three-point hitches. On the attachment side, it provides a universal skid-steer quick-attach interface. Both the tractor’s hitch configuration and the attachment’s mounting interface should be confirmed before use.

Tractor and Hydraulic Requirements

A tractor equipped with a compatible Category 1 or Category 2 three-point hitch is required. Operation of the tilt function also requires a hydraulic supply suitable for connecting to the included 4 in × 8 in stroke cylinder. Hydraulic hoses are not supplied with the adapter, and published hydraulic flow and pressure requirements are not available for this model.

When selecting and operating attachments, account for the adapter’s approximate 500 lb weight, its 5,500 lb rated capacity, and the operating limits of the tractor, three-point hitch, and attachment.
