HLA Attachments - 96" Stone Fork 27-Cranked Tines - Stone and Debris Handling [LA-SF96BO500]

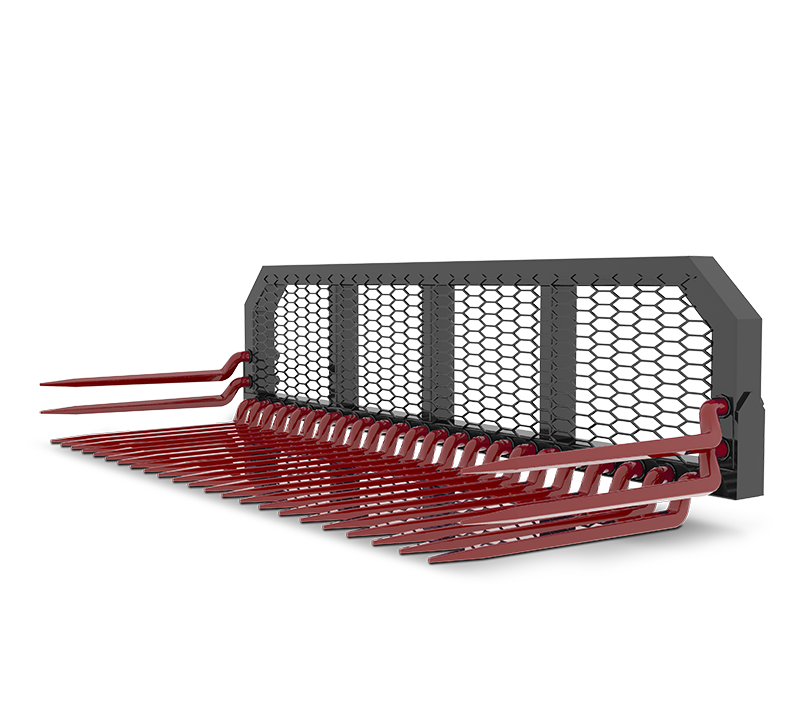

HLA Attachments SF96BO500 96-Inch Stone Fork is a rugged material-handling attachment designed for collecting rocks, stone, and debris while allowing loose soil and fine material to sift between its tines. This 96-inch model combines 27 cranked Conus II Kverneland tines with a heavy-duty back guard, providing a broad working width for landscaping, property maintenance, site cleanup, and other stone-removal applications. It is supplied with HLA’s BO500 skid-steer-style quick-attach mounting interface.

Efficient Stone and Debris Handling

The SF96 uses 27 tines arranged on 4-inch centres to lift and retain larger material while letting finer material fall through. This design helps separate unwanted rocks and debris from soil without carrying as much loose material as a conventional bucket. Its 96-inch width provides substantial coverage for clearing larger areas.

Each 39-inch cranked tine provides 32 inches of usable length, offering ample space for collecting and carrying material. The cranked Conus II Kverneland tine design and rugged attachment construction are suited to demanding material-handling work. A heavy-duty back guard helps contain collected material, while its 3 lb expanded-metal grating maintains visibility through the upper section of the attachment.

Key Features

• 96-inch stone fork for collecting rocks, stone, and general debris
• Allows soil and fine material to sift through the attachment
• 27 cranked Conus II Kverneland tines
• 39-inch tine length with 32 inches of usable tine length
• Tines positioned on 4-inch centres for consistent material separation
• Heavy-duty back guard for improved material retention
• Back guard fitted with 3 lb expanded-metal grating
• Rugged construction for landscaping and material-handling applications
• Configured with HLA mounting code BO500
• Skid-steer-style quick-attach mounting interface

Designed for Productive Cleanup

The HLA SF96 is intended for jobs where stone and debris need to be removed while retaining as much soil as possible. As the tines travel beneath or through loose material, soil and smaller particles can pass through the 4-inch tine spacing. Rocks and larger debris remain supported on the 32-inch usable tine area for collection and relocation.

The attachment’s 25.5-inch overall height includes a substantial back-guard area to help prevent collected material from moving rearward. Expanded-metal grating in the guard provides containment without creating a fully solid barrier. This combination makes the stone fork useful for cleanup and material separation across landscaping areas, yards, worksites, and other maintained properties.

Compatibility

This unit is configured with the HLA BO500 mounting interface, which HLA uses for skid-steer-style and universal quick-attach loader interfaces. Manufacturer compatibility listings show BO500 used on numerous skid-steer-carrier and skid-steer quick-attach loaders, including selected models from New Holland, Kubota, John Deere, Case IH, Massey Ferguson, Terex, Woods, Kioti, and Frey.

Compatibility depends on the specific loader or carrier model. Confirm that the machine has the appropriate skid-steer-style quick-attach interface and sufficient operating capacity for the attachment and intended load before ordering or operating.

Specifications
