HLA Attachments - 96" Heavy Duty High Volume Skid Steer Bucket [LA-SBHV96HDBO500]

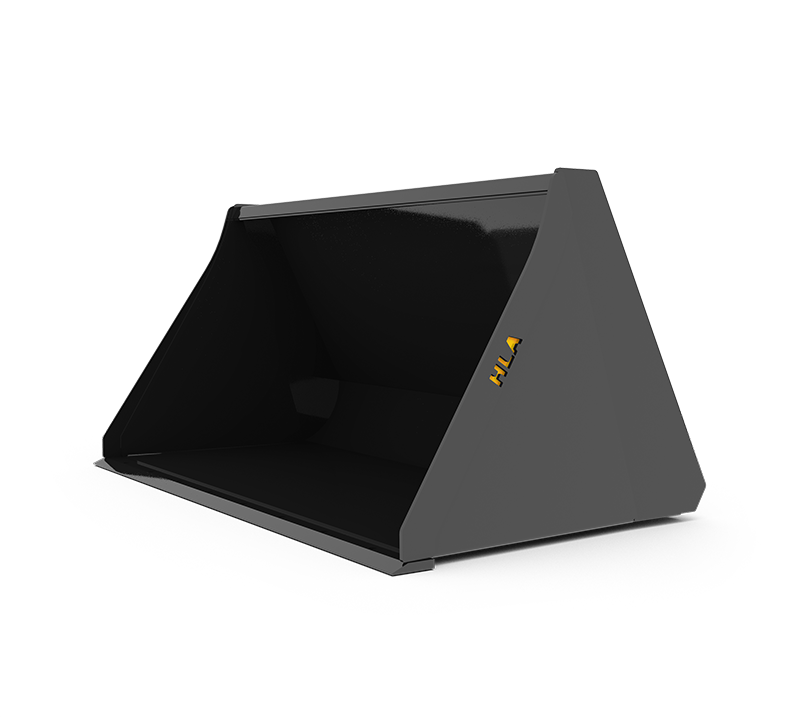

HLA Attachments SBHV96HDBO500 96-Inch Heavy Duty High Volume Skid-Steer Bucket combines substantial material capacity with a reinforced design for demanding loading, handling, and cleanout work. This heavy-duty bucket provides a 96-inch inside width, 33.3 cu. ft. struck capacity, and 41.5 cu. ft. SAE heaped capacity. It is built with 1/4-inch bucket material and end plates, a reinforced top lip, and a robust 3/4 x 6-inch beveled cutting edge. The BO500 skid-steer-style quick-attach mount allows use with compatible skid steers and loaders, making the bucket a practical choice for efficiently moving large volumes of suitable material.

Heavy-Duty High-Volume Design

The SBHV96HDBO500 is based on HLA Attachments’ SBHV96HD bucket and is configured with the BO500 mounting system. Its combination of a wide opening, 36-inch depth, and 31-inch height provides the volume required for productive bulk-material handling. The bucket has an approximate outside width of 98 inches and an approximate catalogue weight of 940 lb.

Heavy-duty construction supports demanding day-to-day operation. Both the primary bucket material and end plates are 1/4 inch thick, while the beveled cutting edge measures 3/4 x 6 inches. The bucket is also drilled to accept a standard bolt-on cutting edge.

Built for Filling and Cleanout

The reinforced round back and end plates are designed to provide strength while supporting easy filling and cleanout. Tapered, self-cleaning end plates help reduce material buildup, allowing material to release more readily during unloading. This construction is especially useful where repeated loading and dumping cycles demand an efficient bucket profile.

A reinforced top lip adds structural support across the bucket opening. The flat top also serves as a convenient level indicator, helping the operator assess bucket position during operation.

Key Features

• 96-inch inside width for high-volume material handling
• 33.3 cu. ft. struck capacity
• 41.5 cu. ft. SAE heaped capacity
• Heavy-duty bucket construction
• 1/4-inch bucket material
• 1/4-inch end plates
• 3/4 x 6-inch beveled cutting edge
• Drilled for a standard bolt-on cutting edge
• Reinforced top lip for added strength
• Reinforced round back and end plates support strength, filling, and cleanout
• Tapered, self-cleaning end plates help reduce material buildup
• Flat top functions as a bucket-level indicator
• BO500 skid-steer-style quick-attach interface

Compatibility

This bucket is intended for skid steers and loaders equipped with a skid-steer-style quick-attach interface corresponding to HLA mounting code BO500. Confirm that the carrier’s attachment interface, operating capacity, and handling capabilities are suitable for the bucket’s dimensions, approximate weight, and intended load before use.
