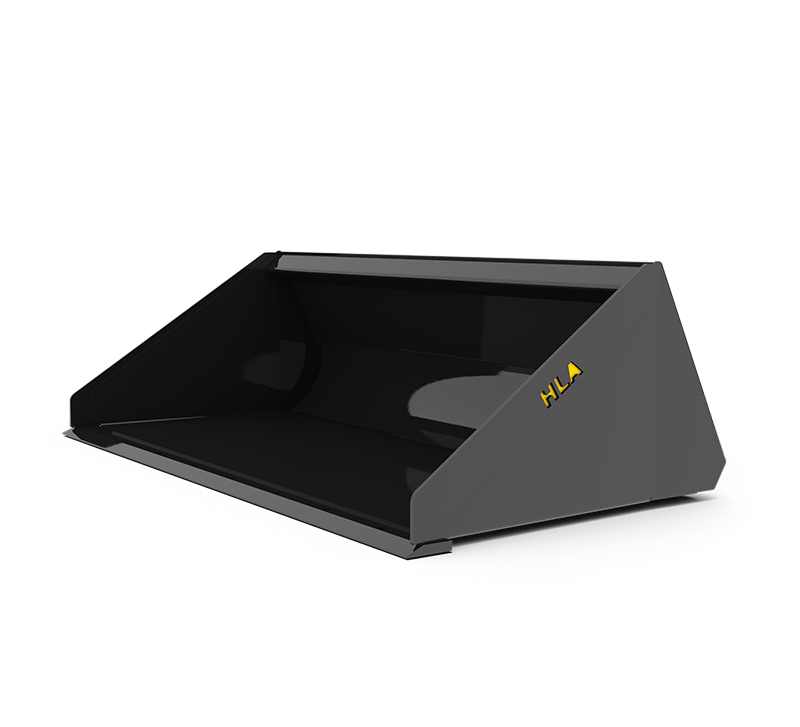

HLA Attachments - 96" Extreme Duty Low Profile Skid Steer Bucket - Low-Profile Skid Steer Attachment [LA-SBLP96XDBO500]

HLA Attachments 96-Inch Extreme Duty Low Profile Skid Steer Bucket is a robust material-handling attachment built for skid steer loaders equipped with the BO500 skid-steer attachment interface. Its low-back, extended-base design improves visibility of the cutting edge, helping the operator position the bucket accurately while loading, grading, levelling, or moving material. With 5/16-inch bucket material, reinforced end plates, heavy-duty top-lip bracing, and additional skid bars underneath, this extreme-duty bucket is designed for demanding work where strength, capacity, and cutting-edge visibility are priorities.

Extreme-Duty Low-Profile Construction

The SBLP96XDBO500 combines a 96-inch inside width with a low-profile bucket design. The bucket has a struck capacity of 16.8 cubic feet and an SAE heaped capacity of 23.3 cubic feet, providing useful volume for handling bulk material. Its overall bucket dimensions are 34 inches deep and 19 inches high, while the approximate attachment weight is 1,050 pounds.

Durability starts with 5/16-inch bucket material and 1/4-inch end plates reinforced by a 1/2-inch stiffener bar. Heavy-duty bracing across the top lip strengthens the bucket structure, while extra skid bars underneath provide additional reinforcement in a high-wear area.

Cutting Edge and Side Protection

A 1-by-8-inch beveled cutting edge provides a substantial working edge for loading and ground-engaging applications. The bucket is also drilled to accept a standard bolt-on cutting edge, allowing a replaceable edge to be fitted when required. Bolt-on side cutters are supplied as standard to protect the bucket sides and support material penetration at the outer edges.

Tapered, self-cleaning end plates are designed to reduce material buildup. This helps material release more cleanly from the bucket and reduces the amount retained around the end plates during repeated loading and dumping cycles.

Operator Visibility

The combination of a low back and extended base improves the operator’s view of the cutting edge. Better edge visibility can assist with precise bucket placement, monitoring the working angle, and following the ground surface. This makes the design suitable for jobs where controlled positioning and clear sightlines are important.

Key Features

• Extreme-duty low-profile skid steer bucket construction
• 96-inch inside working width
• 16.8-cubic-foot struck capacity
• 23.3-cubic-foot SAE heaped capacity
• 5/16-inch bucket material
• 1/4-inch end plates with a 1/2-inch stiffener bar
• Heavy-duty top-lip bracing for added structural reinforcement
• Extra skid bars installed under the bucket
• Low back and extended base improve cutting-edge visibility
• 1-by-8-inch beveled cutting edge
• Drilled for a standard bolt-on cutting edge
• Bolt-on side cutters supplied as standard
• Tapered, self-cleaning end plates help reduce material buildup
• BO500 skid-steer attachment configuration

Compatibility

This configured bucket is compatible with skid steer loaders equipped with the BO500 skid-steer attachment interface. Confirm that the loader uses the specified BO500 interface and is suitable for the bucket’s approximate 1,050-pound attachment weight before installation.
