HLA Attachments - 84" Scrap Grapple Bucket - Hydraulic Material Handling [LA-SGB84BO500]

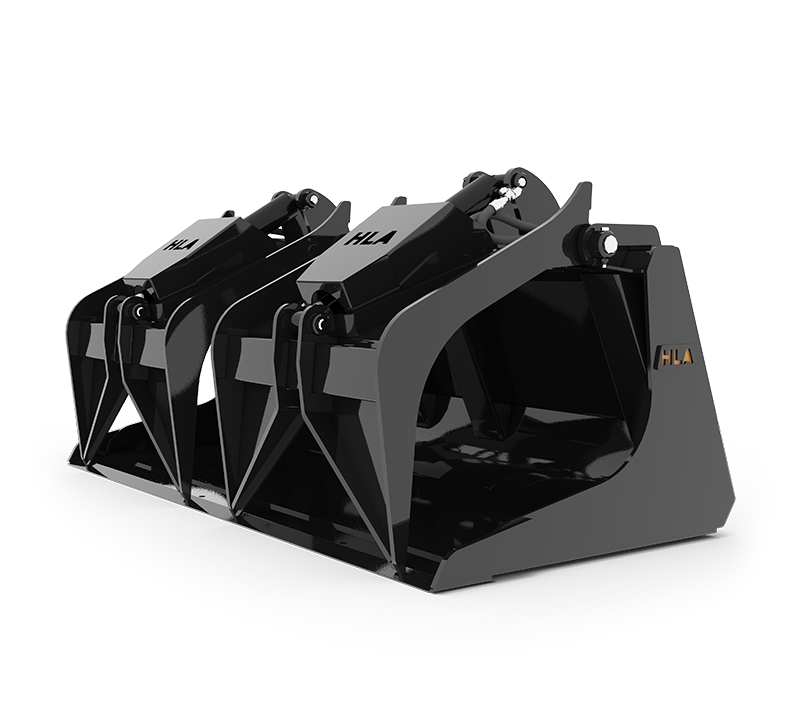

HLA Attachments SGB84BO500 84-Inch Scrap Grapple Bucket is a hydraulic material-handling attachment built for awkward, abrasive loads. Its 84-inch inside width, 24.2-cubic-foot SAE heaped capacity, and two independently operating grapples provide the coverage and load control needed when handling bulky or irregular material. This configuration includes the BO500 universal skid-steer quick-attach interface, making it suitable for loaders and tool carriers equipped with the corresponding mounting system and a compatible auxiliary hydraulic circuit.

Built for Demanding Material Handling

The SGB84BO500 combines a high-capacity bucket with independently operating grapple sections. This configuration helps the attachment conform to uneven loads and retain material across the width of the bucket. It is designed for challenging materials that may be difficult to handle with a conventional bucket, particularly awkward or abrasive loads.

The bucket’s main structure is manufactured from 1/4-inch material, with 3/8-inch end plates for additional strength at the sides. A heavy 3/4-by-6-inch beveled cutting edge supports loading and clean material pickup. The bucket is also drilled to accept a standard bolt-on cutting edge.

Independent Hydraulic Grapples

Two independent grapples provide secure load retention while allowing the grapple sections to respond separately to irregular material. Hydraulic movement is powered by two included 2-1/2-by-8-inch cylinders. Operation requires a loader auxiliary hydraulic circuit; hydraulic flow and pressure requirements are not specified by the manufacturer.

Key Features

• 84-inch inside bucket width
• Designed for awkward, abrasive loads
• Two independently operating grapple sections for improved control of uneven material
• 18.2-cubic-foot struck capacity
• 24.2-cubic-foot SAE heaped capacity
• 1/4-inch main material construction
• Heavy 3/8-inch end plates
• 3/4-by-6-inch beveled cutting edge
• Drilled for a standard bolt-on cutting edge
• Two included 2-1/2-by-8-inch hydraulic cylinders
• BO500 universal skid-steer quick-attach mounting interface

Capacity and Dimensions

With an 18.2-cubic-foot struck capacity and a 24.2-cubic-foot SAE heaped capacity, the SGB84 provides substantial volume for material-handling work. Its overall dimensions are 31 inches high and 34 inches deep. The published weight for the SGB84 base model is approximately 1,200 pounds; HLA Attachments does not publish a separate assembled weight for the BO500 mounting configuration.

Specifications

Loader Compatibility

The SGB84BO500 is configured with HLA Attachments’ BO500 universal skid-steer quick-attach interface. The loader or tool carrier must have the corresponding universal skid-steer quick-attach mounting system.

Hydraulic Requirements

A compatible loader auxiliary hydraulic circuit is required to operate the grapples. The attachment is supplied with two 2-1/2-by-8-inch hydraulic cylinders. The manufacturer does not specify hydraulic flow or pressure requirements for this configuration, so compatibility should be confirmed for the intended loader before installation.
