HLA Attachments - 84" Regular Duty Standard Skid Steer Bucket and GRS72 Grapple - Universal Skid Steer Bucket [LA-SB84GRS72BO500]

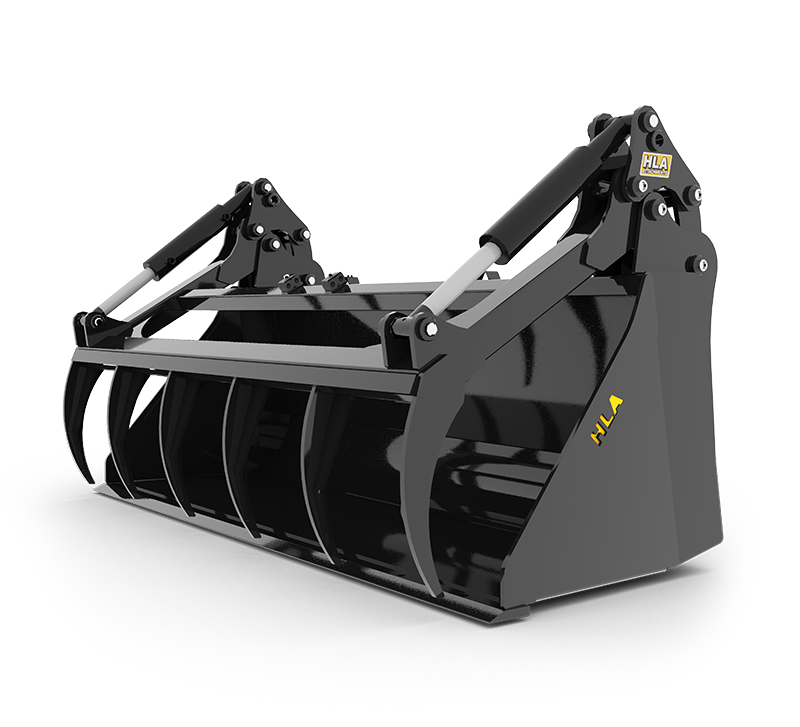

HLA Attachments SB84GRS72 Regular-Duty Skid Steer Grapple Bucket with BO500 Mount combines an 84-inch standard skid steer bucket with the GRS72 hydraulically operated grapple for loading, handling, and securing material. Designed especially for skid steers with limited clearance for grapple arms, this configuration offers a maximum 45-inch grapple opening and two heavy-duty 2-1/2 x 8-inch hydraulic cylinders. Its reinforced bucket construction, self-cleaning end plates, and universal skid-steer-style quick attach make it a practical material-handling attachment for demanding property, farm, construction, and general loading work.

Durable Bucket and Grapple Construction

The regular-duty bucket is built with 3/16-inch bucket material and 1/4-inch end plates. A reinforced top lip, round back, and reinforced end plates provide additional strength where it is needed during loading and grapple work. The 3/4 x 4-inch beveled cutting edge supports effective material entry, while the bucket is also drilled to accept an optional bolt-on cutting edge.

Tapered, self-cleaning end plates help reduce material buildup and support cleaner dumping. The bucket’s flat top also functions as a convenient level indicator, helping the operator judge bucket position from the skid steer cab.

Limited-Clearance Grapple Design

The GRS72 grapple is designed for skid steers where grapple-arm clearance is limited. Its hydraulically operated arms open to a maximum of 45 inches, providing room to gather and retain bulky or irregular material. Two 2-1/2 x 8-inch cylinders power the grapple mechanism for controlled opening and closing.

With an 84-inch inside width, approximately 86-inch outside width, and a 24.3-cubic-foot SAE heaped capacity, the bucket provides useful coverage and material volume while maintaining a compact grapple arrangement. The complete assembly weighs approximately 900 lb.

Key Features

• 84-inch regular-duty standard skid steer bucket with GRS72 skid steer grapple
• Designed for skid steers with limited clearance for grapple arms
• Maximum grapple opening of 45 inches
• Two 2-1/2 x 8-inch hydraulic cylinders
• BO500 universal skid-steer-style quick-attach mount
• 3/16-inch bucket body material
• 1/4-inch bucket end plates
• 3/4 x 4-inch beveled cutting edge
• Drilled for an optional bolt-on cutting edge
• Reinforced top lip, round back, and end plates
• Tapered, self-cleaning end plates
• Flat bucket top functions as a level indicator
• Approximately 900 lb complete attachment weight

Compatibility

This attachment is equipped with the HLA Attachments BO500 universal skid-steer-style quick attach. It is intended for compatible skid steers and is particularly suited to machines with limited clearance for conventional grapple arms. Confirm the carrier’s quick-attach interface, hydraulic capability, lift capacity, and operating limits before use.

Hydraulic Requirements

The grapple is hydraulically operated by two 2-1/2 x 8-inch cylinders. Hydraulic hose kits are optional, with HK90 or HK9090 hose options available. An SHMK spring hose mount is also optional. No hydraulic flow or pressure requirement is published for this configuration.
