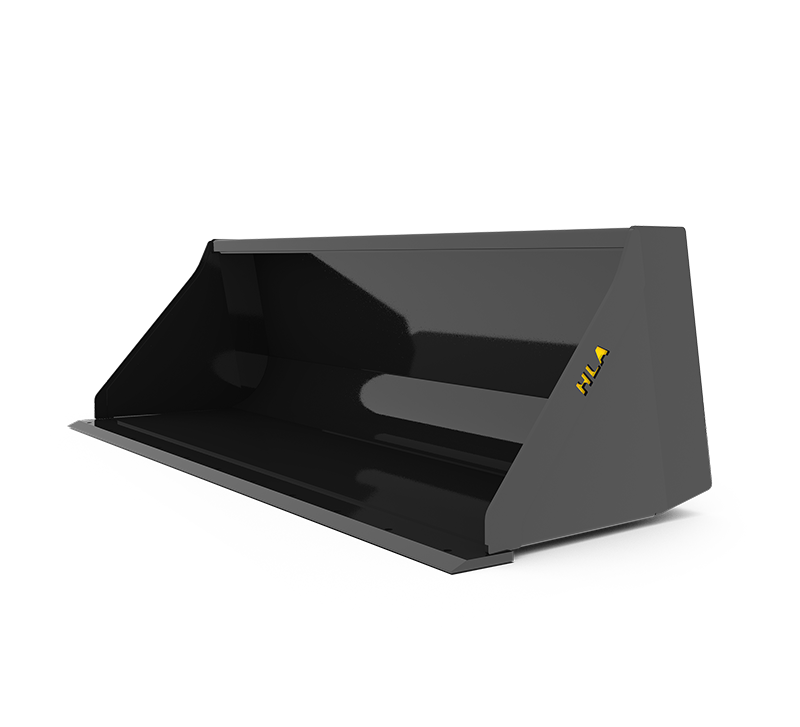

HLA Attachments - 84" Regular Duty Standard Front-End Loader Bucket [LA-MB84BO500]

HLA Attachments MB84BO500 84-Inch Regular-Duty Standard Front-End Loader Bucket is a practical material-handling bucket designed for loaders and skid steers equipped with the HLA BO500 skid-steer-style quick-attach interface. Its 84-inch inside width, 19.7-cubic-foot struck capacity, and 24.9-cubic-foot SAE heaped capacity make it well suited to routine loading, carrying, levelling, and cleanout work. Regular-duty construction combines a reinforced bucket profile with tapered end plates and a substantial bevelled cutting edge for reliable day-to-day performance.

Built for Routine Material Handling

The MB84 bucket uses 3/16-inch bucket material and 1/4-inch end plates. A reinforced top lip, round back, and reinforced end plates add strength where it is needed while supporting easy filling and clean material release. The rounded rear profile helps material flow into the bucket and simplifies cleanout after use.

Tapered, self-cleaning end plates are designed to reduce material buildup during loading and dumping. This profile is useful when handling loose material and helps minimize the amount left clinging to the bucket’s sides. The flat top also serves as a convenient visual level indicator, allowing the operator to judge bucket position from the machine seat.

Cutting Edge and Wear Protection

A 3/4-by-4-inch bevelled cutting edge provides a durable working edge for engaging material and performing general bucket work. The bucket is also drilled to accept a standard bolt-on cutting edge, providing an attachment point for additional edge protection when required.

Key Features

• Regular-duty standard front-end loader material bucket
• 84-inch inside width
• BO500 skid-steer-style quick-attach mounting interface
• 19.7-cubic-foot struck capacity
• 24.9-cubic-foot SAE heaped capacity
• 3/16-inch bucket material
• 1/4-inch end plates
• 3/4-by-4-inch bevelled cutting edge
• Drilled for a standard bolt-on cutting edge
• Reinforced top lip for added structural support
• Reinforced round back and end plates for strength, easy filling, and cleanout
• Tapered, self-cleaning end plates help reduce material buildup
• Flat bucket top serves as a visual level indicator

BO500 Quick-Attach Compatibility

This MB84 configuration is fitted with HLA’s BO500 skid-steer-style quick-attach mounting interface. It is intended for loaders and skid steers using the corresponding HLA BO500 interface. HLA lists BO500 for numerous loader carriers; however, the mounting system should be confirmed against HLA’s loader mounting-code catalogue for the specific machine before ordering. Matching bucket width, capacity, weight, and intended duty class to the loader or skid steer is also important.

Specifications
