HLA Attachments - 84" 4-in-1 Front-End Loader Bucket [LA-MBFNO84BO500]

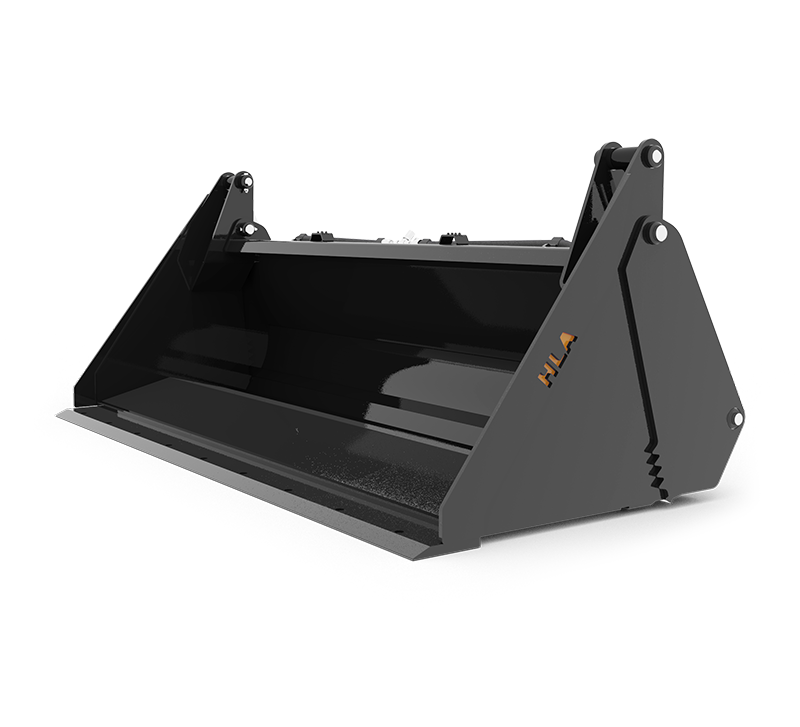

HLA Attachments MBFNO84BO500 84-inch 4-in-1 Front-End Loader Bucket combines a hydraulically operated 4-in-1 bucket design with the BO500 universal skid-steer-style quick-attach interface. Built for compatible front-end loaders, it provides an 84-inch inside width, 20.0 cu ft struck capacity, and 25.7 cu ft SAE heaped capacity. Two included 2-1/2 x 8-inch hydraulic cylinders operate the bucket’s clam mechanism, while substantial material thicknesses throughout the bucket support demanding loading and material-handling applications.

Hydraulic 4-in-1 Bucket Design

The MBFNO84 uses a 4-in-1 hydraulic configuration that expands the utility of a front-end loader bucket through an opening clam section. Both hydraulic cylinders are included with the attachment. Hydraulic power must be supplied by the loader, although required hydraulic flow, operating pressure, hoses, and couplers are not specified by the manufacturer.

The bucket has an 84-inch inside working width and an approximately 86-inch calculated outside width. Its 33-inch depth and 26-inch height provide a struck capacity of 20.0 cu ft and an SAE heaped capacity of 25.7 cu ft. Approximate attachment weight is 1,227 lb, which should be considered when confirming loader lift capacity and operating limits.

Construction

The main bucket is manufactured from 1/4-inch material, with 3/8-inch end plates and a 3/8-inch clam-floor bottom. These specified material thicknesses reinforce key bucket and clam components. The bucket is also drilled to accept a standard bolt-on cutting edge, allowing a suitable cutting edge to be fitted separately when required.

Key Features

• Hydraulic 4-in-1 front-end loader bucket
• 84-inch inside working width
• Approximately 86-inch calculated outside and transport width
• 20.0 cu ft struck capacity
• 25.7 cu ft SAE heaped capacity
• Two 2-1/2 x 8-inch hydraulic cylinders included
• 1/4-inch main bucket material
• 3/8-inch end plates
• 3/8-inch clam-floor bottom
• Drilled for a standard bolt-on cutting edge
• BO500 universal skid-steer-style loader quick attach

Compatibility

This configuration is intended for front-end loaders equipped with a universal skid-steer-style quick-attach carrier. The complete model uses HLA mounting code BO500, which identifies the universal skid-steer-style loader quick-attach interface.

Before ordering, verify that the loader uses the correct quick-attach carrier and has adequate lift capacity for the bucket’s approximate 1,227 lb weight plus the intended material load. The attachment must also be connected to an appropriate hydraulic supply for its two cylinders.

Loader and Hydraulic Requirements

• Loader carrier: Universal skid-steer-style quick attach
• Hydraulic function: Required to operate the two included bucket cylinders
• Cylinders: Two 2-1/2 x 8-inch cylinders
• Hydraulic flow and pressure: Not specified by the manufacturer
• Hoses and couplers: Not specified by the manufacturer
• PTO: Not used
