Description

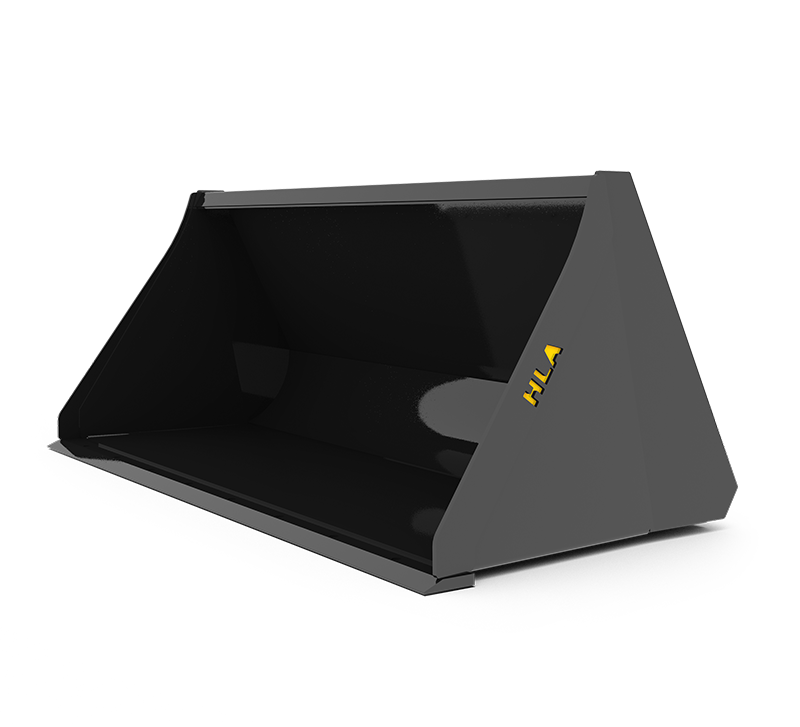

HLA Attachments SB78BO500 78-Inch Regular-Duty Standard Skid-Steer Bucket combines practical material capacity with durable construction and a universal skid-steer quick-attach interface. Designed as a regular-duty material bucket, it features a 78-inch inside width, approximately 80-inch outside width, and a 22.5-cubic-foot SAE heaped capacity. Its reinforced round back, reinforced end plates, tapered self-cleaning design, and bevelled cutting edge support efficient filling, cleanout, and everyday material-handling work.

Durable Regular-Duty Construction

The SB78BO500 is built with 3/16-inch bucket material and 1/4-inch end plates. A reinforced top lip adds strength across the upper edge, while the reinforced round back and end plates help the bucket withstand regular use. The round-back profile is designed to promote easy filling and clean material release.

Tapered, self-cleaning end plates help reduce material buildup inside the bucket. This design supports cleaner dumping and minimizes material retention around the bucket ends. The flat top also serves as a convenient level indicator, helping the operator judge bucket position during use.

Cutting Edge and Capacity

A 3/4 x 4-inch bevelled cutting edge provides a robust working edge for loading and material pickup. The bucket is also drilled to accept an optional standard bolt-on cutting edge, allowing the working edge to be equipped for additional wear protection when required.

With a struck capacity of 17.8 cubic feet and an SAE heaped capacity of 22.5 cubic feet, this bucket offers useful volume in a regular-duty configuration. It measures 28 inches deep and 26 inches high, with an approximate weight of 545 pounds.

Key Features

  • 78-inch regular-duty standard skid-steer material bucket
  • BO500 universal skid-steer quick-attach mounting interface
  • 78-inch inside width and approximately 80-inch outside width
  • 17.8-cubic-foot struck capacity
  • 22.5-cubic-foot SAE heaped capacity
  • 3/16-inch bucket material
  • 1/4-inch end plates
  • 3/4 x 4-inch bevelled cutting edge
  • Reinforced top lip for added strength
  • Reinforced round back and end plates for strength, easy filling, and cleanout
  • Tapered, self-cleaning end plates help reduce material buildup
  • Flat top serves as a visual level indicator
  • Drilled for an optional standard bolt-on cutting edge
  • No hydraulic or PTO connection required

Compatibility

The HLA Attachments SB78BO500 uses the BO500 universal skid-steer quick-attach interface. It is compatible with universal skid-steer quick-attach carriers, and HLA loader-fitment tables identify BO500 as the mounting code for numerous skid-steer-style quick-attach carriers.

Specifications

Manufacturer HLA Attachments
Complete Configured Model SB78BO500
Manufacturer Base Model SB78
Product Type Regular-duty standard skid-steer material bucket
Mounting Code BO500
Attachment Interface Universal skid-steer quick attach
Inside Width 78 in
Outside Width Approximately 80 in
Depth 28 in
Height 26 in
Struck Capacity 17.8 cu ft
SAE Heaped Capacity 22.5 cu ft
Approximate Weight 545 lb
Bucket Material Thickness 3/16 in
End-Plate Thickness 1/4 in
Cutting Edge 3/4 x 4 in bevelled edge
Bolt-On Edge Provision Drilled for a standard bolt-on cutting edge
Hydraulic Requirement None
PTO Requirement None
