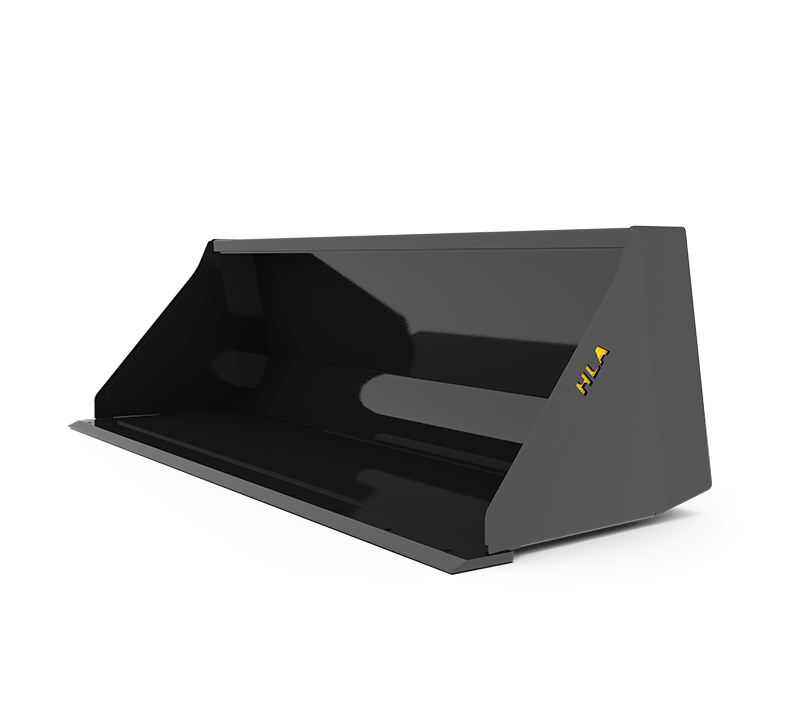

HLA Attachments - 78" Regular Duty Standard Front-End Loader Bucket [LA-MB78BO500]

HLA Attachments MB78BO500 78-Inch Regular-Duty Standard Front-End Loader Bucket is a practical material bucket designed for loaders and carriers equipped with the BO500 skid-steer-carrier quick-attach configuration. With a 78-inch inside width, 80-inch outside width, and 23.1-cubic-foot SAE heaped capacity, it provides useful volume for routine loading, carrying, filling, and cleanout work. Regular-duty construction combines 3/16-inch main material, 1/4-inch end plates, a reinforced top lip, and a substantial 3/4 x 4-inch bevelled cutting edge. Its rounded, reinforced back promotes strength and easy filling, while tapered self-cleaning end plates help reduce material buildup.

Built for Routine Material Handling

The HLA MB78 bucket is designed for regular-duty front-end loader applications. Its 18.3-cubic-foot struck capacity and 23.1-cubic-foot SAE heaped capacity provide room for handling bulk material, while the approximately 525-pound bucket weight balances capacity with a straightforward regular-duty design.

A reinforced round back and reinforced end plates add strength to key areas of the bucket. The rounded profile also supports smoother filling and easier cleanout, helping material move into and out of the bucket with fewer places for buildup. Tapered, self-cleaning end plates further support clean operation when working with loose material.

Durable Cutting and Loading Features

The bucket is fitted with a 3/4 x 4-inch bevelled cutting edge for engaging material during loading. It is also drilled to accept a standard bolt-on cutting edge, allowing the working edge to be configured with a compatible optional accessory. Available accessory options include double-bevel and serrated bolt-on cutting edges, as well as knock-on ripper teeth with weld-on adapters and flex pins.

The reinforced top lip contributes additional strength across the bucket opening. It also provides a flat top that serves as a convenient level indicator, helping the operator judge bucket position while approaching or carrying material.

Key Features

• Regular-duty standard front-end loader material bucket
• 78-inch inside width and 80-inch outside width
• 18.3-cubic-foot struck capacity
• 23.1-cubic-foot SAE heaped capacity
• 3/16-inch main material construction
• 1/4-inch end plates
• 3/4 x 4-inch bevelled cutting edge
• Reinforced top lip for added strength
• Flat bucket top serves as a level indicator
• Reinforced round back and end plates support strength, filling, and cleanout
• Tapered, self-cleaning end plates help reduce material buildup
• Drilled for a standard bolt-on cutting edge
• BO500 skid-steer-carrier quick-attach mounting configuration
• Approximate weight of 525 pounds

Compatibility

The MB78BO500 is configured for loaders or carriers using the HLA BO500 mounting code. BO500 is a quick-attach mounting configuration used with skid-steer-style or skid-steer-carrier systems. The carrier configuration should be confirmed before ordering.

Verified BO500 examples include Kubota B26TLB, L39, M59TLB, TL1000, and TL1150 skid-steer quick-attach carriers. Verified John Deere examples include 553, 563, and 673 skid-steer carriers.

Optional Accessories

• 346CEB: 3/4 x 6-inch double-bevel bolt-on cutting edge with hardware
• 348CEB: 3/4 x 8-inch double-bevel bolt-on cutting edge with hardware
• 346CESB: 3/4 x 6-inch single-bevel serrated bolt-on cutting edge with hardware
• RTMBK: Knock-on ripper teeth with weld-on adapter and flex pin

Specifications
