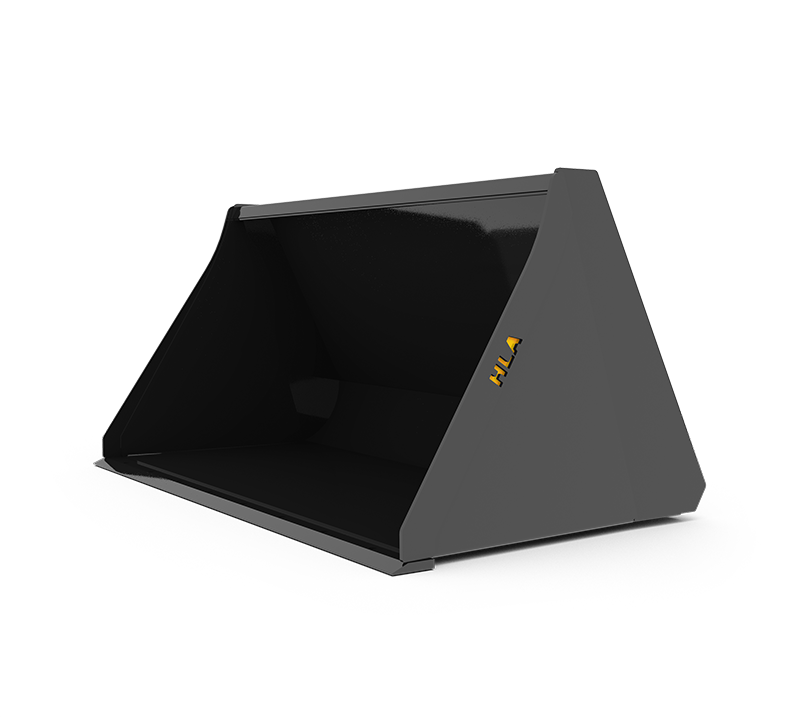

HLA Attachments - 78" Heavy Duty High Volume Skid Steer Bucket - Long Lip [LA-SBHV7840HDBO500]

HLA Attachments 78" Heavy Duty High Volume Skid Steer Bucket – Long Lip is a high-capacity material-handling bucket designed for demanding skid-steer applications. This SBHV7840HD bucket combines a 78-inch inside width with a long-lip, heavy-duty configuration that supports efficient filling and cleanout. Its 30.7 cu ft struck capacity and 37.6 cu ft SAE heaped capacity make it well suited to moving substantial volumes of material, while the BO500 universal skid-steer quick-attach mount provides straightforward connection to compatible carriers.

Heavy-Duty Construction

Built for strength in high-volume work, the bucket uses 1/4-inch bucket material and 1/4-inch end plates. The reinforced top lip, round back, and reinforced end plates provide additional structural support in demanding operating conditions. At the working edge, a 3/4 x 6-inch beveled cutting edge helps the bucket engage material effectively.

The cutting edge is also drilled to accept a standard bolt-on cutting edge, allowing the working edge to be equipped for the intended application. With an approximate weight of 855 lb, the bucket has the substantial construction expected from a heavy-duty attachment.

Designed for Filling and Cleanout

The reinforced round-back profile supports easy filling and cleanout, helping material enter and leave the bucket efficiently. Tapered, self-cleaning end plates are designed to reduce material buildup, an important benefit when repeatedly loading, carrying, and discharging bulk material.

A flat top provides a convenient level indicator that can help the operator judge bucket position. Combined with the long-lip design, these practical features make the bucket easier to use during repetitive loading and material-placement tasks.

High-Volume Capacity

The SBHV7840HD provides a manufacturer-listed struck capacity of 30.7 cu ft and an SAE heaped capacity of 37.6 cu ft. Its 38-inch depth and 31-inch height create a spacious bucket profile for high-volume handling. The 78-inch inside width provides broad coverage while retaining the reinforced construction of the heavy-duty design.

Key Features

• Heavy-duty, high-volume skid-steer bucket with long-lip configuration
• 78-inch inside width
• 30.7 cu ft struck capacity
• 37.6 cu ft SAE heaped capacity
• 1/4-inch bucket material
• 1/4-inch end plates
• 3/4 x 6-inch beveled cutting edge
• Drilled for a standard bolt-on cutting edge
• Reinforced top lip for added strength
• Reinforced round back and end plates
• Round-back design supports easy filling and cleanout
• Tapered, self-cleaning end plates help reduce material buildup
• Flat top serves as a level indicator
• BO500 universal skid-steer quick-attach mounting configuration
• Approximate weight of 855 lb

Compatibility

This configuration includes the HLA BO500 universal skid-steer quick-attach mounting plate. It is compatible with universal skid-steer quick-attach carriers that use the BO500 mounting configuration.
