HLA Attachments - 66" Heavy Duty High Volume Skid Steer Bucket [LA-SBHV66HDBO500]

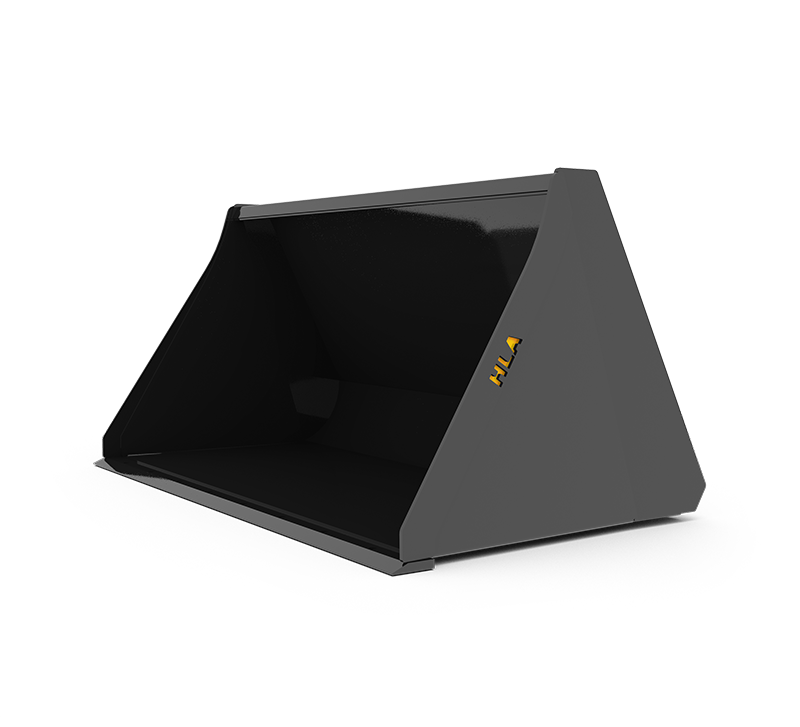

HLA Attachments SBHV66HD 66-Inch Heavy Duty High Volume Skid-Steer Bucket with BO500 Mount is built for handling larger volumes of material with the strength required for demanding loading applications. Its 22.9 cu ft struck capacity and 28.1 cu ft SAE heaped capacity provide ample room for moving bulk material, while the reinforced round back is designed to improve strength, filling, and cleanout. The BO500 universal skid-steer quick-attach mount makes this fixed bucket suitable for compatible skid-steer loaders and loader carriers equipped with the universal skid-steer quick-attach interface.

Heavy-Duty High-Volume Construction

The SBHV66HD combines high-volume dimensions with substantial material thicknesses. Both the bucket shell and end plates are made from 1/4-inch material. The end plates are tapered and self-cleaning to reduce material buildup, while the reinforced round back helps material enter and leave the bucket more easily.

A reinforced top lip adds rigidity across the bucket, and the flat top can be used as a visual level indicator during operation. At ground level, a 3/4 x 6-inch beveled cutting edge provides a durable working edge. The bucket is also drilled with a standard bolt-on cutting-edge pattern, allowing a compatible bolt-on cutting edge to be fitted.

Capacity and Working Dimensions

The 66-inch model designation refers to the bucket’s inside width. Following HLA’s stated width calculation, the approximate outside width is 68 inches. With a depth of 36 inches and a height of 31 inches, the bucket offers a struck capacity of 22.9 cu ft and an SAE heaped capacity of 28.1 cu ft.

These dimensions make the bucket well suited to applications where increased material volume is important, while the heavy-duty shell, reinforced areas, and substantial cutting edge support regular loader work. The approximate bucket weight is 695 lb.

Key Features

• Heavy-duty, high-volume skid-steer bucket design
• 66-inch inside width and approximately 68-inch outside width
• 22.9 cu ft struck capacity
• 28.1 cu ft SAE heaped capacity
• 1/4-inch bucket material for heavy-duty construction
• 1/4-inch tapered, self-cleaning end plates that reduce material buildup
• Reinforced round back and end plates for strength, easier filling, and cleanout
• Reinforced top lip for added rigidity
• Flat bucket top serves as a visual level indicator
• 3/4 x 6-inch beveled cutting edge
• Drilled for a standard bolt-on cutting edge
• BO500 universal skid-steer quick-attach mounting interface
• Fixed-bucket design requires no PTO or hydraulic circuit

Compatibility

This bucket is configured with the HLA BO500 universal skid-steer quick-attach mount. It is compatible with skid-steer loaders and loader carriers that use the universal skid-steer quick-attach interface. Confirm the carrier’s mounting interface and operating capacity before installation, taking the bucket’s approximate 695 lb weight into account.
