HLA Attachments - 60" Stone Fork 18-Cranked Tines - Stone and Debris Handling [LA-SF60BO500]

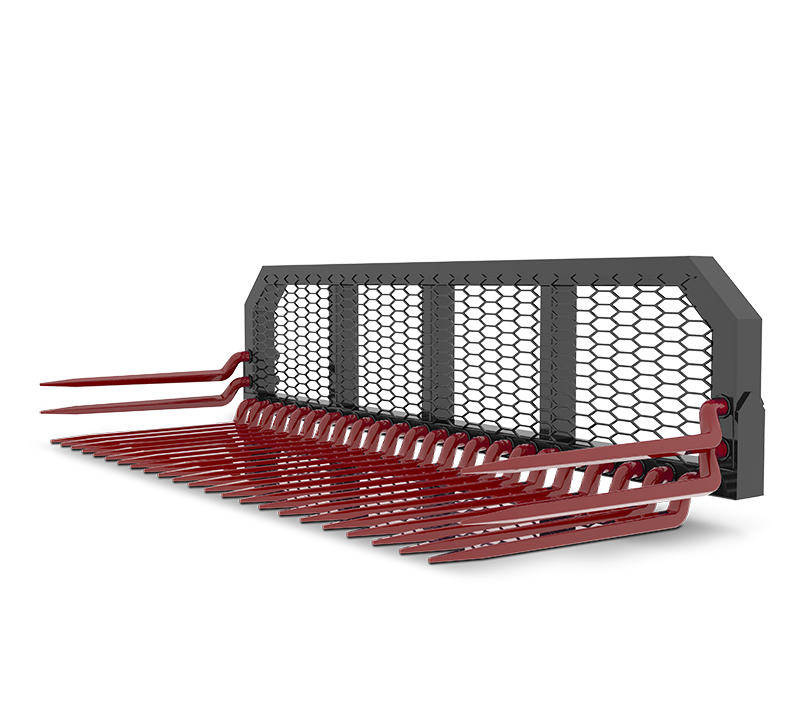

The HLA Attachments SF60BO500 Stone Fork is a rugged 60-inch material-handling attachment designed to collect rocks and debris while allowing soil and finer material to sift through the tines. This configuration combines 18 cranked Conus II Kverneland tines with HLA’s BO500 universal skid-steer quick-attach mount. Its 32-inch usable tine length, four-inch tine spacing and heavy-duty expanded-metal back guard make it well suited to landscaping, stone collection, debris handling and site cleanup.

Efficient Stone and Debris Handling

The SF60BO500 is purpose-built for separating unwanted rocks and debris from loose soil. Its 18 tines are installed on four-inch centers, providing open spacing through which fine material can fall while larger material remains on the fork. This makes the attachment useful for gathering stones, collecting coarse debris and cleaning up landscaped or disturbed areas without retaining as much loose soil as a solid-bottom bucket.

Each cranked Kverneland tine has an overall length of 39 inches and provides 32 inches of usable length. The cranked Conus II tine design creates a practical working surface for getting beneath and carrying collected material. Across the attachment’s 60-inch width, the evenly spaced tines provide broad coverage for material-handling work.

Heavy-Duty Construction

HLA Attachments equips this stone fork with rugged construction for demanding material-handling applications. A heavy-duty back guard helps contain collected rocks and debris, while its three-pound expanded-metal grating provides an open barrier rather than a solid panel. The grating supports visibility through the back-guard area and complements the fork’s sifting design.

With an overall height of 25.5 inches and an approximate weight of 610 pounds, the SF60BO500 provides a substantial attachment platform while maintaining a compact 60-inch working and transport width.

Key Features

• 60-inch stone fork for handling rocks, coarse debris and similar material
• Allows soil and fine material to sift through while larger material is collected
• 18 cranked Conus II Kverneland tines
• 39-inch overall tine length with 32 inches of usable length
• Tines positioned on four-inch centers
• Heavy-duty back guard with three-pound expanded-metal grating
• Rugged construction for landscaping and material-handling work
• BO500 universal skid-steer quick-attach mounting configuration
• Approximate attachment weight of 610 pounds

Compatibility

The BO500 mounting configuration is HLA Attachments’ universal skid-steer quick-attach interface. The SF60BO500 is compatible with loaders equipped with a universal skid-steer-style quick-attach carrier. Confirm the loader’s carrier type and its ability to safely handle the attachment’s approximate 610-pound weight before installation or operation.
