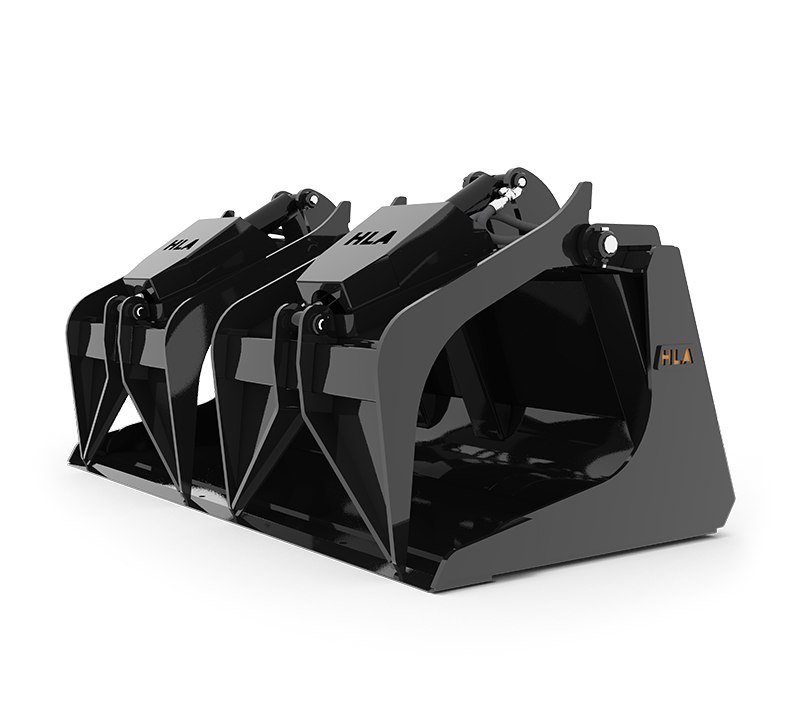

HLA Attachments - 60" Compact Scrap Grapple Bucket - Hydraulic Material Handling [LA-SGBC60BO500]

HLA Attachments SGBC60BO500 60-Inch Compact Scrap Grapple Bucket is a hydraulic material-handling attachment designed for compact machines equipped with HLA’s BO500 skid-steer/universal quick-attach carrier. Combining a 60-inch inside bucket width with a single hydraulic grapple arm, this compact bucket is suited to picking up, containing, and moving loose or irregular material. Its 26-inch overall height and 26-inch depth provide a compact working profile, while the approximately 35–36-inch grapple opening accommodates a range of material sizes.

Compact Hydraulic Material Handling

The SGBC60BO500 combines a material bucket with a hydraulically operated grapple, helping the operator secure material during pickup and transport. Its single grapple arm is powered by the included 2-1/2 × 8-inch hydraulic cylinder. The bucket provides a struck capacity of 9.0 cubic feet and an SAE heaped capacity of 11.6 cubic feet.

This model has a 60-inch inside width and a calculated outside width of 62 inches. Its compact dimensions make it suitable for compatible compact equipment while retaining the structure required for scrap and general material-handling work. Approximate attachment weight is 480 pounds.

Built for Demanding Bucket Work

The bucket is manufactured with 3/16-inch material and reinforced by 1/4-inch end plates. A 3/4 × 4-inch beveled cutting edge supports material entry when loading from the ground or a pile. For operators who want an additional serviceable wear component, the bucket is also drilled to accept a standard bolt-on cutting edge.

The grapple’s maximum opening is listed as 35 inches on HLA’s current product webpage and 36 inches in current manufacturer pocket catalogues. This opening allows the arm to close over bulky, uneven loads that may be difficult to retain with an open bucket alone.

Key Features

• 60-inch inside bucket width
• 62-inch calculated outside width
• Single hydraulic grapple arm for securing loose and irregular material
• Approximately 35–36-inch maximum grapple opening
• One 2-1/2 × 8-inch hydraulic cylinder included
• 9.0-cubic-foot struck capacity
• 11.6-cubic-foot SAE heaped capacity
• 3/16-inch bucket material
• 1/4-inch end plates
• 3/4 × 4-inch beveled cutting edge
• Drilled for a standard bolt-on cutting edge
• Compact 26-inch overall height and 26-inch overall depth
• HLA BO500 skid-steer/universal quick-attach mount
• Approximate weight of 480 pounds

Compatibility

The SGBC60BO500 is configured with HLA’s BO500 quick-attach interface, which HLA uses for skid-steer/universal carrier applications. It is intended for machines equipped with an HLA-listed BO500 skid-steer/universal quick-attach carrier.

Loader-specific fitment should be confirmed against HLA’s mounting-code tables before ordering. The attachment’s dimensions, weight, capacity, hydraulic operation, and the host machine’s operating limits should also be considered when confirming suitability.

Hydraulic Requirements

One 2-1/2 × 8-inch hydraulic cylinder is included to operate the grapple arm. A compatible auxiliary hydraulic system is required for grapple operation. Auxiliary hydraulic flow and pressure requirements are not specified.
