HLA Attachments - 120" Stone Fork 34-Cranked Tines - Stone and Debris Handling [LA-SF120BO500]

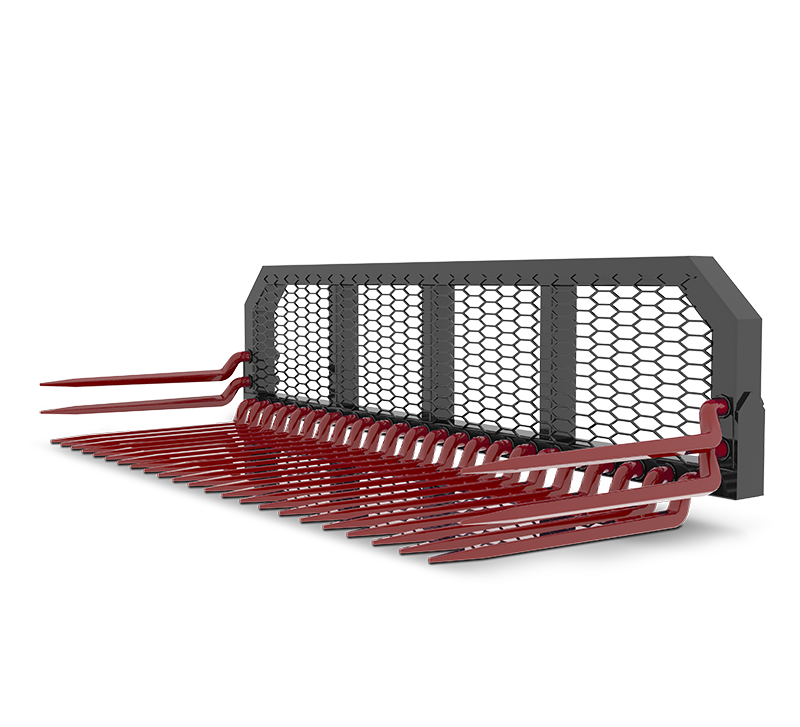

HLA Attachments SF120 Stone Fork with BO500 Woods Quick-Attach Mount is a rugged, 120-inch stone-and-debris handling attachment designed to separate stones and bulky material from loose soil and finer debris. Its 34 cranked Conus II Kverneland tines are arranged on 4-inch centers, allowing fine material to sift through while stones and debris remain on the fork. With 32 inches of usable tine length, a heavy-duty back guard, and a wide working area, this attachment is suited to landscaping, site cleanup, stone removal, and general material-handling work with compatible Woods loaders.

Efficient Stone and Debris Handling

The SF120 uses 39-inch cranked Kverneland tines to penetrate and carry material while providing a usable tine length of 32 inches. The 4-inch tine spacing helps retain larger stones, roots, and debris while allowing soil and fine material to fall between the tines. This makes the attachment useful for cleaning up disturbed ground, sorting material, and removing unwanted debris without carrying excessive loose soil.

Its 120-inch width provides broad coverage, helping operators work efficiently across larger areas. The attachment has an overall height of 25.5 inches and includes a heavy-duty back guard fitted with 3 lb expanded-metal grating. This guard provides a substantial rear barrier while maintaining visibility through the grating.

Rugged Cranked-Tine Construction

The fork is equipped with 34 cranked Conus II Kverneland tines. The cranked-tine configuration is designed for stone-fork applications and combines practical material retention with open spacing for sifting. The SF120 base attachment has an approximate catalogue weight of 1,035 lb, excluding any unpublished difference associated with the BO500 mounting package.

This non-grapple stone fork operates without PTO power or hydraulic service. Attachment and loader movement are controlled through the compatible loader and its quick-attach interface.

Key Features

• 120-inch-wide HLA Attachments SF120 stone fork
• BO500 Woods loader quick-attach mounting package
• 34 cranked Conus II Kverneland tines
• 39-inch overall tine length
• 32-inch usable tine length
• Tines installed on 4-inch centers
• Open tine arrangement allows soil and fine material to sift through
• Designed to retain and handle stones, roots, and larger debris
• Heavy-duty back guard with 3 lb expanded-metal grating
• 25.5-inch overall attachment height
• Rugged construction for landscaping and material-handling applications
• No PTO or hydraulic service required

Loader Compatibility

The included BO500 quick-attach mounting interface is listed by HLA Attachments for the following Woods loaders:

• Woods LC96
• Woods LC102
• Woods LC108
• Woods 1016
• Woods 1020
• Woods 1027

The compound product code LA-SF120BO500 identifies the SF120 attachment with the BO500 mounting package, but it does not specify which individual Woods loader model is intended. Confirm the loader model and quick-attach interface before ordering.

Specifications

Weight note: The stated approximate weight applies to the SF120 stone fork. A combined published weight for the SF120 with the BO500 mount is not specified.
