Rainbow - 20ft Tilting Car & Equipment Trailer W/2-5.2K Axles - Excursion (Includes 2ft Dovetail)

SKU 8520M
Starting at $8,88595
Starting at $8,88595

Add your items to the Cart to begin to build and price your package!


When you're ready to take the next step, please reach out to us for a quote.

*Pricing shown at MSRP and may not include available Timberstar Tractor or Manufacturer discounts.
*Finance rates, payment calculations, whether or not you need a down payment, all available through our sales staff.
*Pricing may not include freight, assembly, finance, delivery, or pdi fees.
*Manufacturer pricing subject to change without notice.
*Manufacturer sales promotions valid unitl the end of the month they were issued in.
*Price match available for many brands we carry.

Description

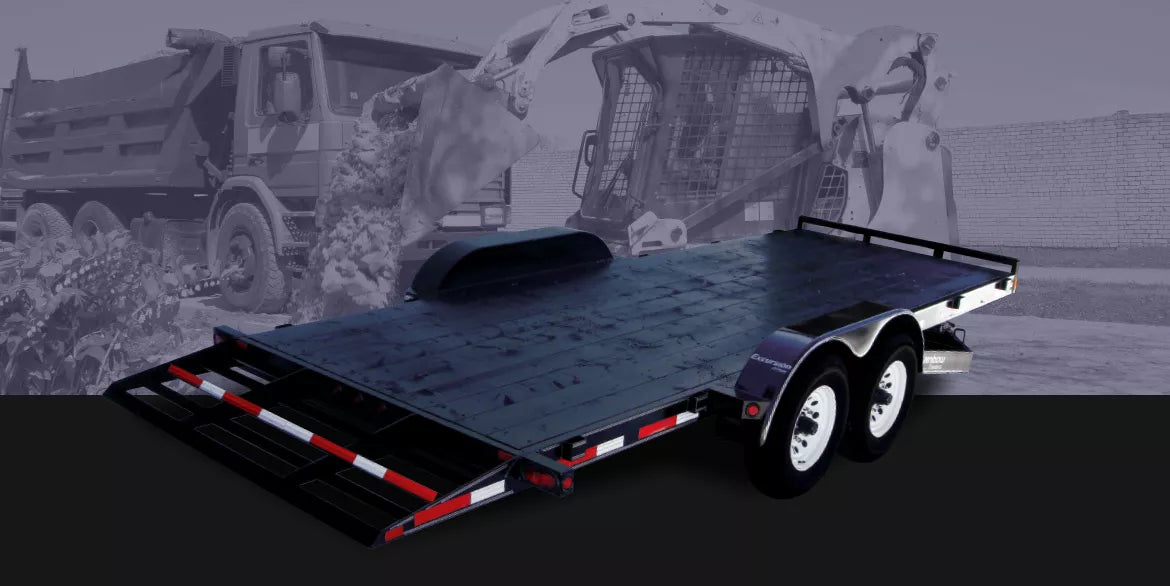

Rainbow Excursion 20' Full Tilt C&E (9,900 lbs GVWR)

The Rainbow Excursion Full Tilt trailer is the ultimate solution for loading low-clearance equipment and heavy machinery without the need for ramps. The Model 8520M combines a heavy-duty 6" channel frame with a precision hydraulic tilt system, providing a safe, efficient, and "no-hassle" loading experience.

Technical Specifications

  • Model: 8520M (Excursion Series)
  • Payload Capacity: 8,530 lbs.
  • GVWR: 9,900 lbs.
  • Deck Dimensions: 20' 7" Length (including 30" Dovetail)
  • Axles: Two 5,200 lb. axles with brakes on both
  • Frame & Hitch: Rugged 6" Channel construction
  • Curb Weight: 2,360 lbs.

Loading & Performance

  • Full Tilt Design: Eliminates the struggle of heavy ramps; simply unlatch and tilt the deck to drive equipment straight on.
  • Low Profile: A deck height of approximately 20"–23" ensures a shallow load angle, ideal for scissor lifts, small tractors, and vehicles.
  • Heavy-Duty Components: Equipped with a 7,000 lb. drop-leg jack and 15" D-Range, 8-ply tires for commercial-grade reliability.
  • Premium Floor: Features 2" Spruce kiln-dried lumber for maximum grip and durability.

Standard Features

  • Electrical: Fully protected RV plug hook-up with sealed lighting.
  • Structural Integrity: 3" channel crossmembers spaced at 24" intervals to support concentrated loads.
  • Versatile Hitch: Adjustable 2 5/16" coupler to maintain a level tow across different vehicle heights.
  • Finish: High-quality paint and primer application designed to withstand the rigors of professional use.

Ideal For:

The Excursion 20' Full Tilt is built for operators who value speed and safety. Whether you are moving landscaping equipment, skid steers, or car hauling, this trailer provides a professional-grade platform that makes every job easier.
