KIOTI

KIOTI CS10 Loader SL2410 w/48in Bucket and Grill Guard

SKU AAA191-3

Starting at: Starting at $4,532.¹²

Starting at: Starting at $4,532.¹²

Add your machine and attachments to the Cart to begin to build and price your package!

When you're ready to take the next step, please reach out to us for a quote.

*Pricing shown at MSRP and may not include available Timberstar Tractor or Manufacturer discounts.
*Finance rates, payment calculations, whether or not you need a down payment, all available through our sales staff.
*Pricing may not include freight, assembly, finance, delivery, or pdi fees.
*Manufacturer pricing subject to change without notice.
*Manufacturer sales promotions valid unitl the end of the month they were issued in.
*Price match available for many brands we carry.

Description

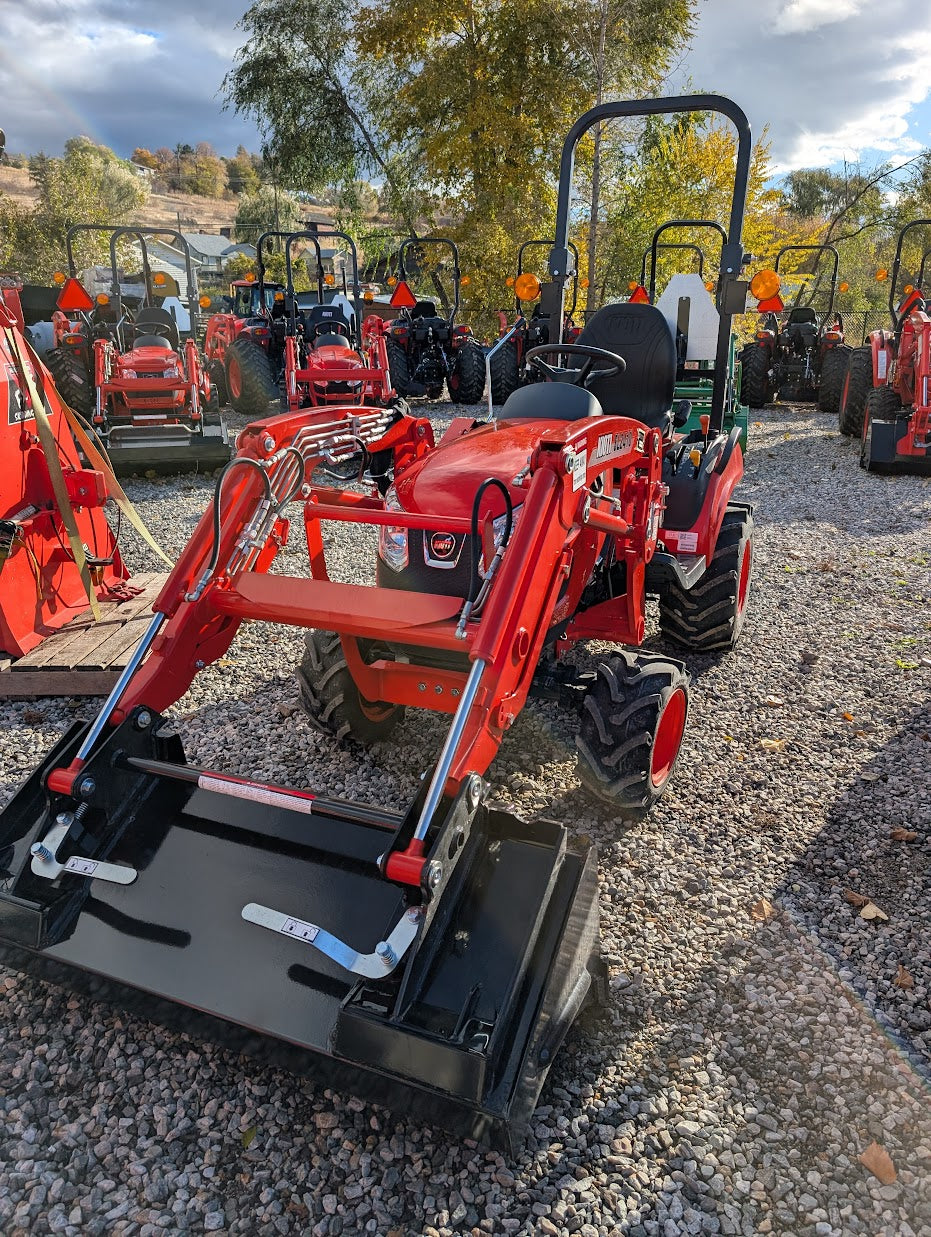

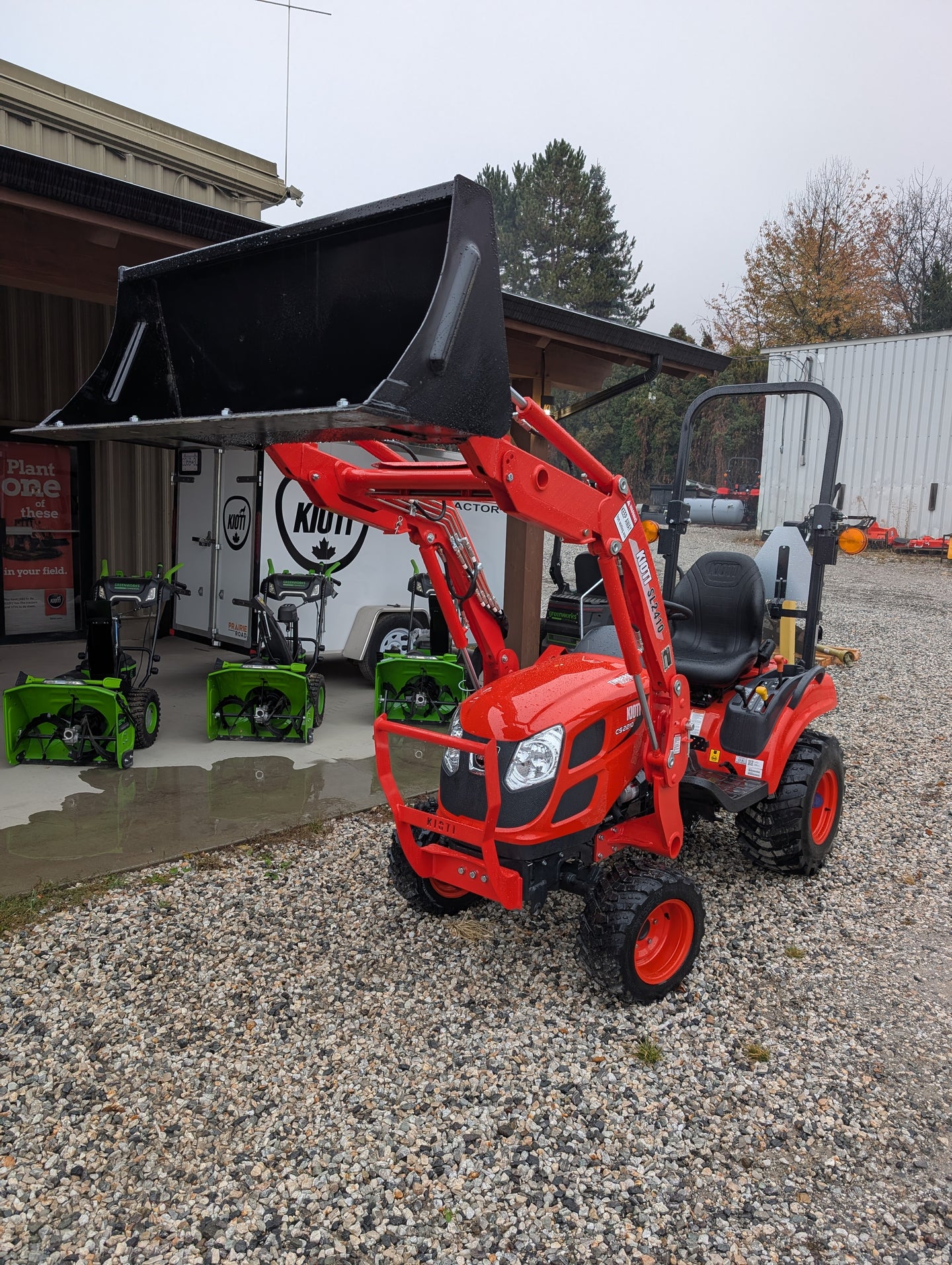

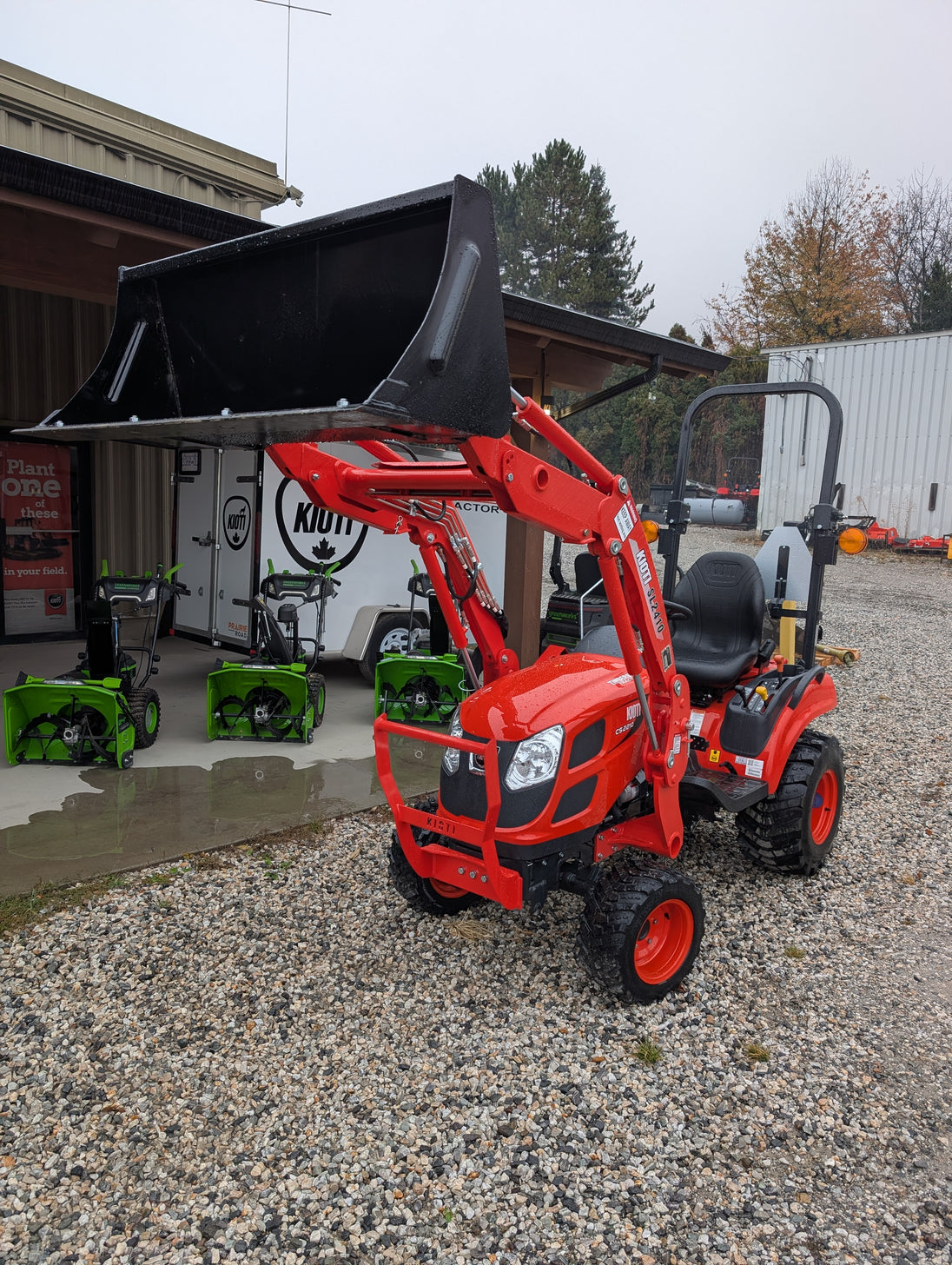

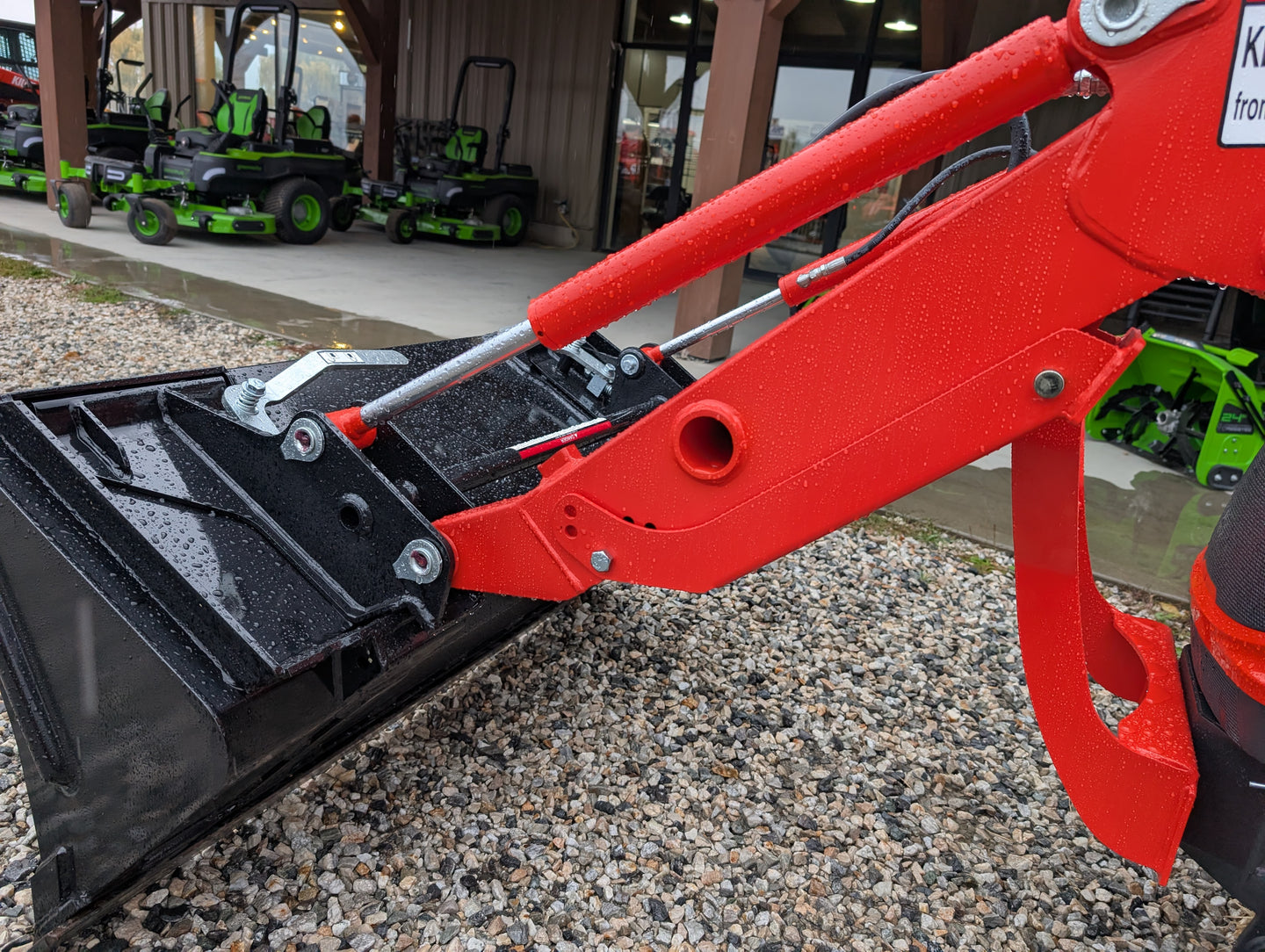

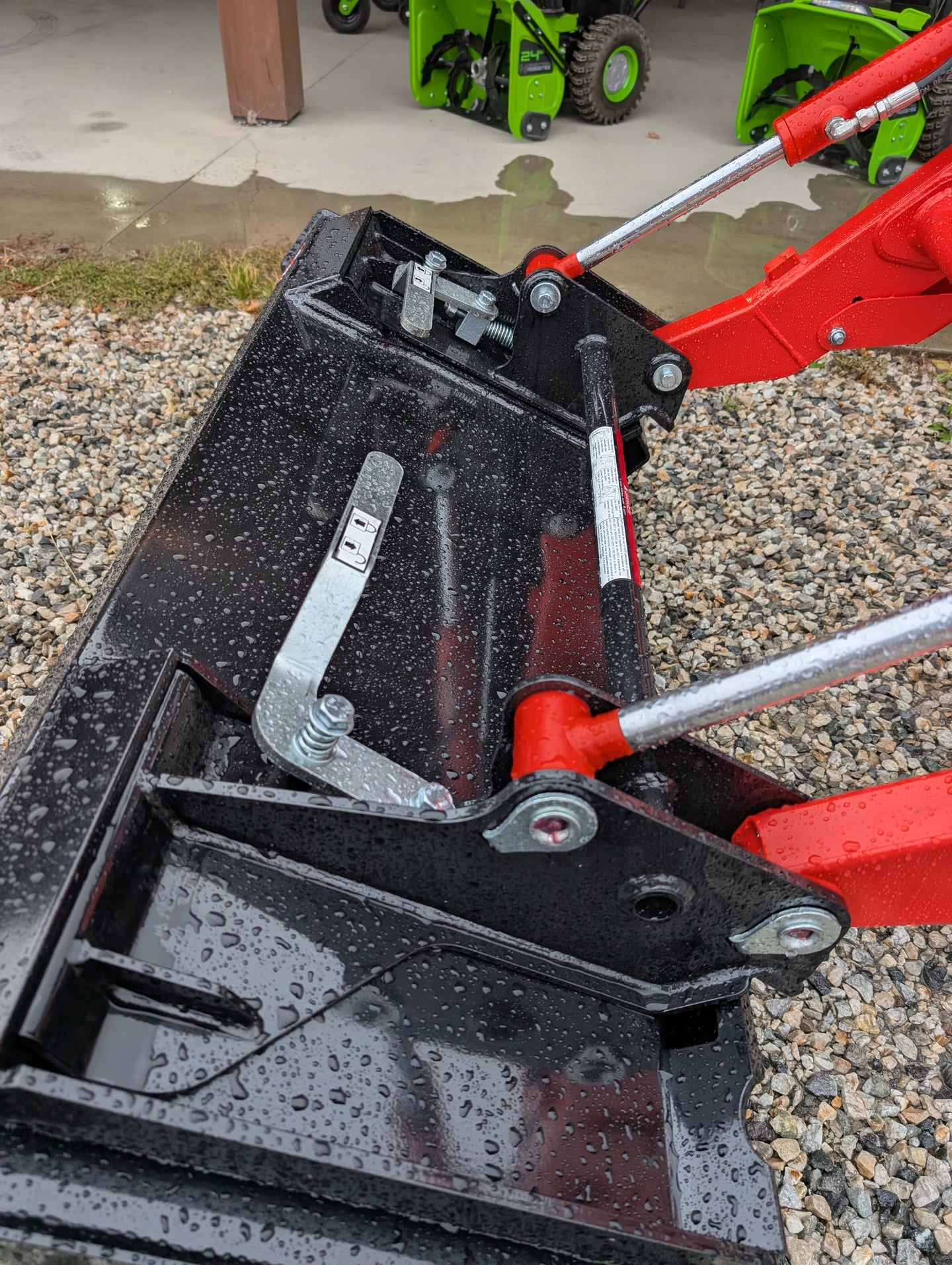

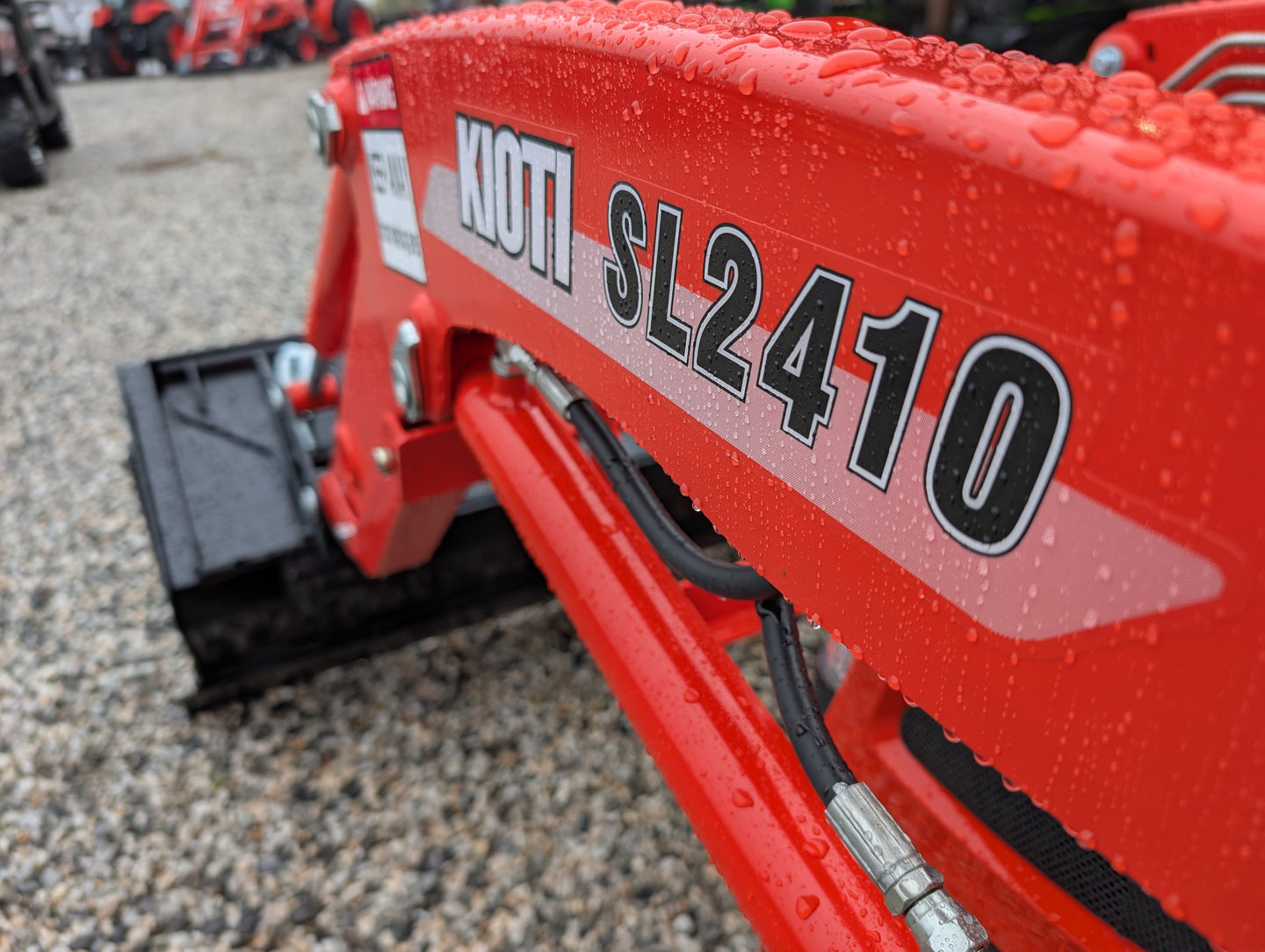

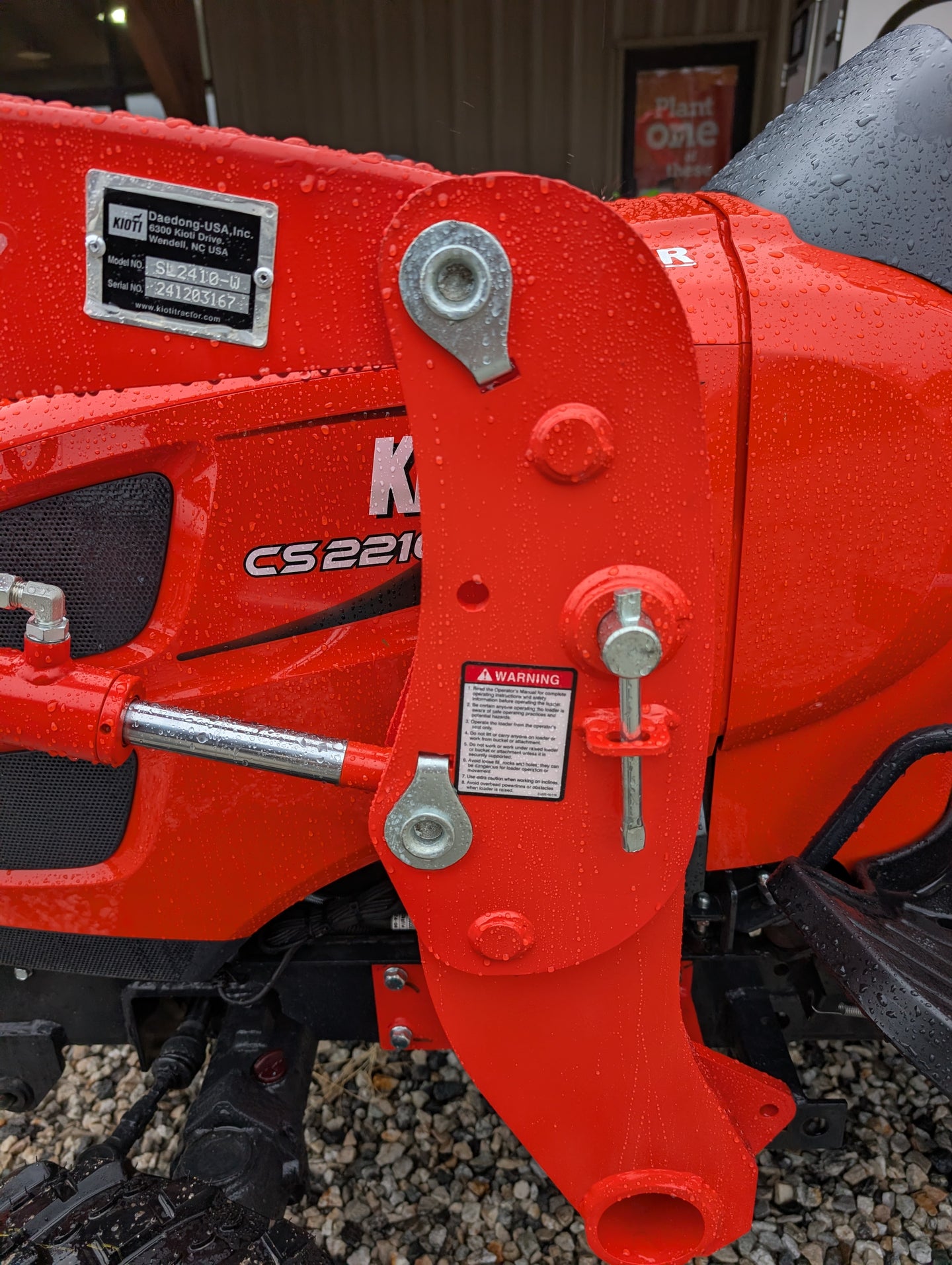

KIOTI SL2410 Front End Loader

The KIOTI SL2410 Front End Loader is the dedicated, high-performance attachment designed to turn your KIOTI CS Series sub-compact tractor into a powerful, multi-functional material handling machine. Specifically engineered for the CS2210 and CS2510 (and similar) models, the SL2410 provides the lift capacity and precision control necessary for a wide range of tasks, from moving soil and gravel to mulching and snow removal.

Models	SL2410
Compatibility	Fits the KIOTI CS10 Series Sub-Compact tractors.
Lift Height Max Pivot Pin	71.30 in (1,810 mm)
Clearance Level	64.50 in (1,638 mm)
Clearance Dumped	51 in (1,295 mm)
Dump Angle Max	45 °
Reach at Ground	52.40 in (1,332 mm)
Rollback Angle Max	27 °
Digging Depth	5.10 in (130 mm)
Height Max in Carry Position	36.40 in (925 mm)
Bucket Depth	19.90 in (505 mm)
Height	18.10 in (459 mm)
Length	23.10 in (588 mm)

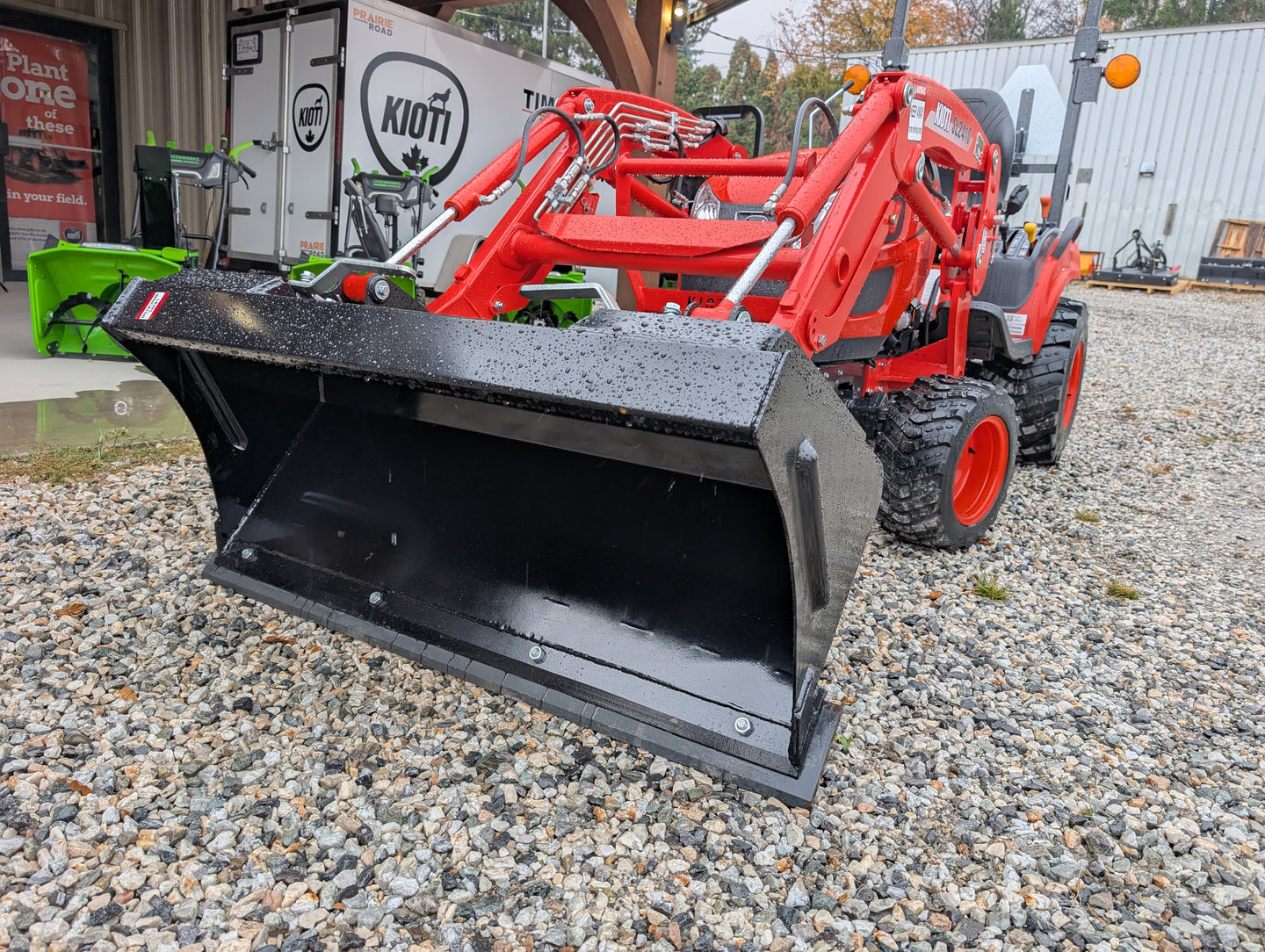

Bucket Size	48 in (1,219.20 mm)
Relief Valve Setting	1,849 psi (127.48 bar)
Rated Flow	3.50 gpm (13.40 lpm)
Lift Capacity to Full Height	675.30 lb (306.30 kg)
Breakout Force at Pivot Pin	1,332 lb (604 kg)
Weight	498 lb (226 kg)
Bucket Rollback Force at Ground	1,109 lb (503 kg)
Bucket Capacity (Heaped)	6.70 ft³ (0.19 m³)
Depth	19.90 in (505 mm)
