HLA Attachments - 84" Regular Duty Standard Front-End Loader Bucket and GR72 Grapple [LA-MB84GR72BO500]

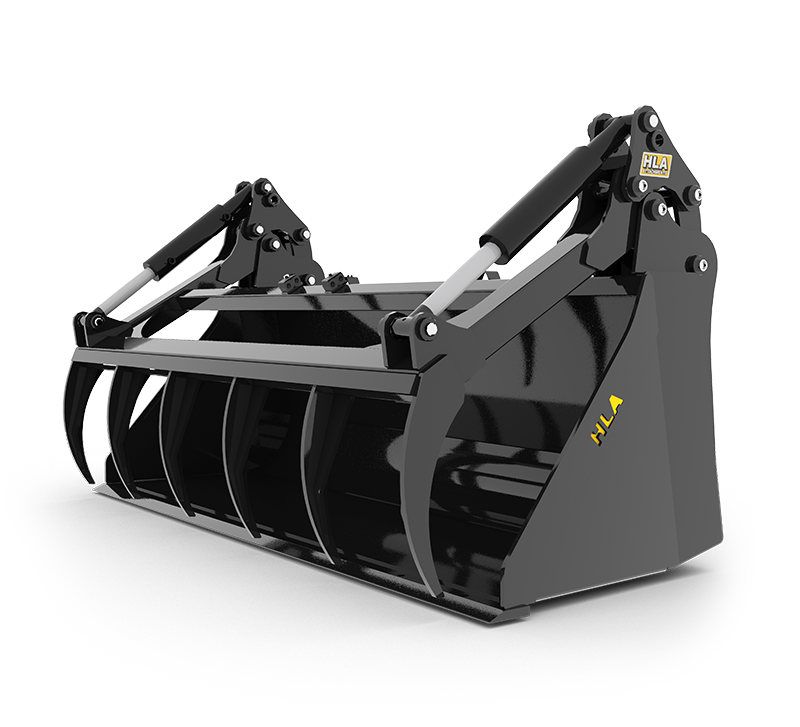

HLA Attachments MB84GR72BO500 84-Inch Regular-Duty Loader Bucket with GR72 Grapple combines a standard front-end loader material bucket with a hydraulic Regular Utility Grapple for more controlled material handling. The bucket provides an 84-inch inside width, approximately 86-inch outside width and 24.9-cubic-foot SAE heaped capacity, while the GR72 grapple opens as wide as 70 inches. Built with reinforced structural areas, tapered self-cleaning end plates and two hydraulic cylinders, this package is designed for front-end loaders equipped with a compatible BO500 skid-steer-style quick-attach carrier.

Standard Material Bucket with an Integrated Utility Grapple

This HLA Attachments package pairs the MB84 regular-duty material bucket with the GR72 Regular Utility Grapple. The grapple helps retain and control material within the bucket, providing greater versatility than a standard open bucket. Its maximum 70-inch opening accommodates a broad range of loading and material-handling tasks, while two 2-1/2 by 8-inch hydraulic cylinders operate the grapple.

The bucket has a struck capacity of 19.7 cubic feet and an SAE heaped capacity of 24.9 cubic feet. At 28 inches deep and 25 inches high, it offers useful volume in a regular-duty configuration. The complete bucket and grapple package weighs approximately 955 pounds.

Reinforced Bucket Construction

The MB84 bucket is manufactured from 3/16-inch material and includes 1/4-inch end plates. A reinforced top lip adds strength along the upper edge, while the reinforced round back and end plates support durability and promote easy filling and cleanout. The round-back construction allows material to move smoothly into and out of the bucket.

Tapered, self-cleaning end plates are designed to reduce material buildup. Along the bottom edge, a 3/4 by 4-inch beveled cutting edge supports bucket loading performance. The bucket is also drilled to accept an optional bolt-on cutting edge, allowing it to be equipped for applications where an additional replaceable edge is desired.

Practical Operator Features

The flat bucket top serves as a convenient level indicator, helping the operator judge bucket position from the loader seat. The approximately 86-inch overall width provides broad coverage, while the integrated grapple supplies positive retention and control over the material in the bucket.

• Regular-duty MB84 standard front-end loader material bucket
• GR72 Regular Utility Grapple configured for the 84-inch bucket
• 70-inch maximum grapple opening
• Two 2-1/2 by 8-inch hydraulic cylinders
• 84-inch bucket inside width and approximately 86-inch outside width
• 24.9-cubic-foot SAE heaped capacity
• 3/16-inch bucket material with 1/4-inch end plates
• Reinforced top lip, round back and end plates
• Tapered, self-cleaning end plates help reduce material buildup
• 3/4 by 4-inch beveled cutting edge
• Drilled for an optional bolt-on cutting edge
• Flat top functions as a visual level indicator
• BO500 skid-steer-style quick-attach mount

Compatibility

The MB84GR72BO500 is the BO500 mounting variant of the MB84GR72 bucket-and-grapple package. It is compatible with front-end loaders using a skid-steer-style quick-attach carrier that accepts the HLA BO500 mounting configuration. Confirm the loader carrier type, attachment weight capacity and dimensional fit before purchase or installation.
