Description

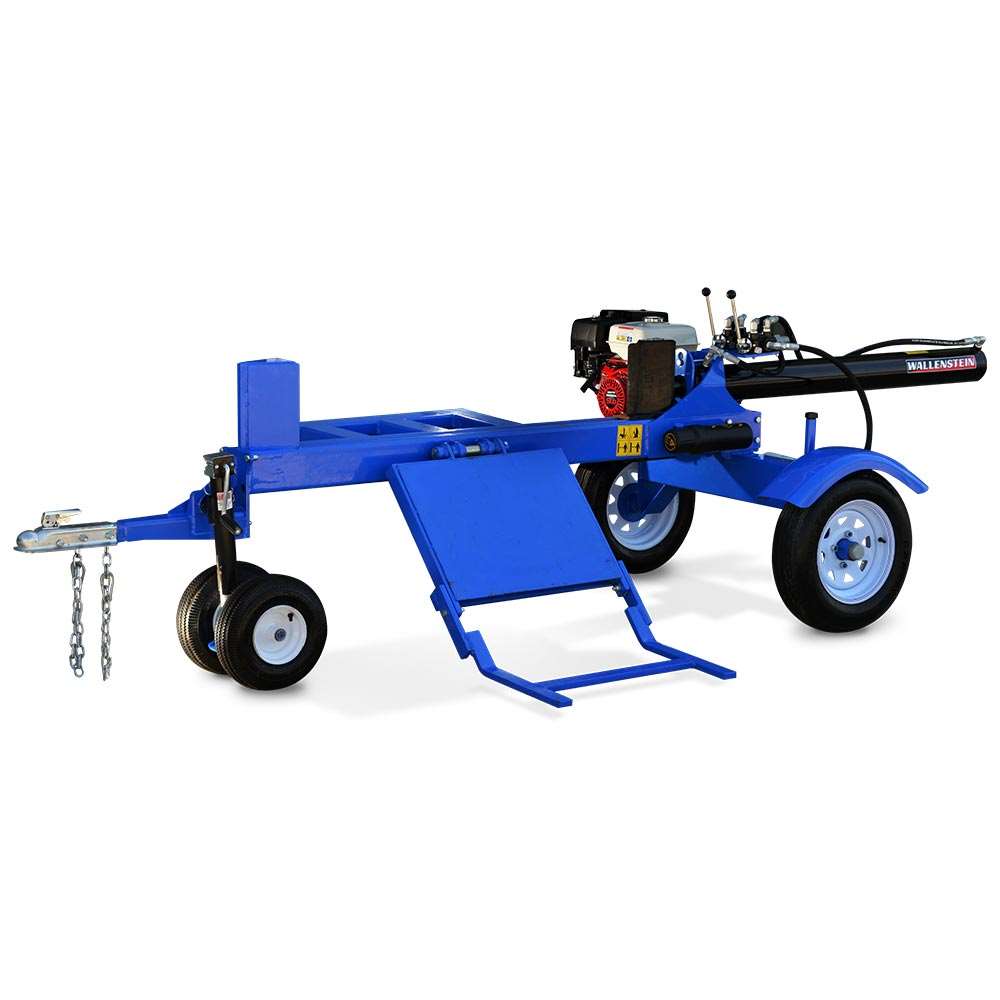

The Wallenstein WX970 25 Ton Horizontal Towable Log Splitter is a self-contained, gasoline-powered wood splitter designed for efficient firewood processing at home, on the farm, or at a woodlot. Its 25-ton split force and 48 in (122 cm) split opening provide substantial working capacity, while the integrated hydraulic log lifter helps raise larger rounds onto the splitting bed. A Vanguard 10 hp (305 cc) engine powers the self-contained hydraulic system, eliminating the need for tractor PTO operation. With a 2 in ball hitch, towable configuration, wide log shelves, and horizontal operating position, the WX970 is built for convenient transport and organized splitting.

Efficient Log Splitting Performance

The WX970 combines a 25-ton splitting force with a 48 in splitting bed to accommodate substantial logs. Its wide wedge and direct-pressure hydraulic system are designed for effective force transfer during operation. The two-stage hydraulic pump supports efficient cycle performance, with an average splitter cycle time of 10.48 seconds and a full cycle time of 20.96 seconds.

The 4.5 in (11 cm) cylinder and 10 in (25 cm) wedge height provide the core working dimensions for the splitting system. Hands-free return helps streamline repeated splitting cycles, while the wide log shelves provide additional support and working space around the bed.

Integrated Hydraulic Log Lifter

Loading large or heavy rounds can be one of the most demanding parts of firewood preparation. The WX970 includes an integrated hydraulic log lifter to assist with placing logs onto the 25 in (64 cm) bed height. This feature helps reduce manual lifting during setup for each split and supports a more practical workflow when processing larger rounds.

Key Features

25-ton split force for demanding firewood applications
48 in (122 cm) split opening
Horizontal, towable, self-contained configuration
Vanguard 10 hp (305 cc) gasoline engine
Integrated hydraulic log lifter
Two-stage hydraulic pump
Wide wedge and direct-pressure hydraulic system
Hands-free return for repeated splitting cycles
Wide log shelves for added working support
2 in ball hitch for towing
5 US gal (20 L) hydraulic capacity

Transport and Towable Configuration

The Wallenstein WX970 is designed for transport between work areas with a 2 in ball hitch and 5.30 x 12 tires. Its total weight is 1,135 lb (515 kg), with a listed tongue weight of 249 lb. The transport width is 63 in (160 cm), and the overall dimensions are 130 x 63 x 38 in (330 x 160 x 97 cm), measured as length x width x height.

Specifications

Brand	Wallenstein Equipment
Model	WX970
Configuration	Horizontal; towable/self-contained
Split force	25 ton
Split opening	48 in (122 cm)
Engine	Vanguard 10 hp (305 cc)
Average splitter cycle time	10.48 seconds
Full cycle time	20.96 seconds
Cylinder diameter	4.5 in (11 cm)
Wedge height	10 in (25 cm)
Bed height	25 in (64 cm)
Tires	5.30 x 12
Hitch	2 in ball
Tongue weight	249 lb
Total weight	1,135 lb (515 kg)
Overall dimensions, L x W x H	130 x 63 x 38 in (330 x 160 x 97 cm)
Transport width	63 in (160 cm)
Hydraulic capacity	5 US gal (20 L)

Operation and Compatibility

The WX970 uses a self-contained gasoline-powered hydraulic system and does not require tractor PTO power. Its towable configuration and 2 in ball hitch support movement between suitable work locations. The product is intended for horizontal log splitting and includes the hydraulic components required for its self-contained operation.
