WOODSPLITTER 9-HP 4.5X24 LIFT

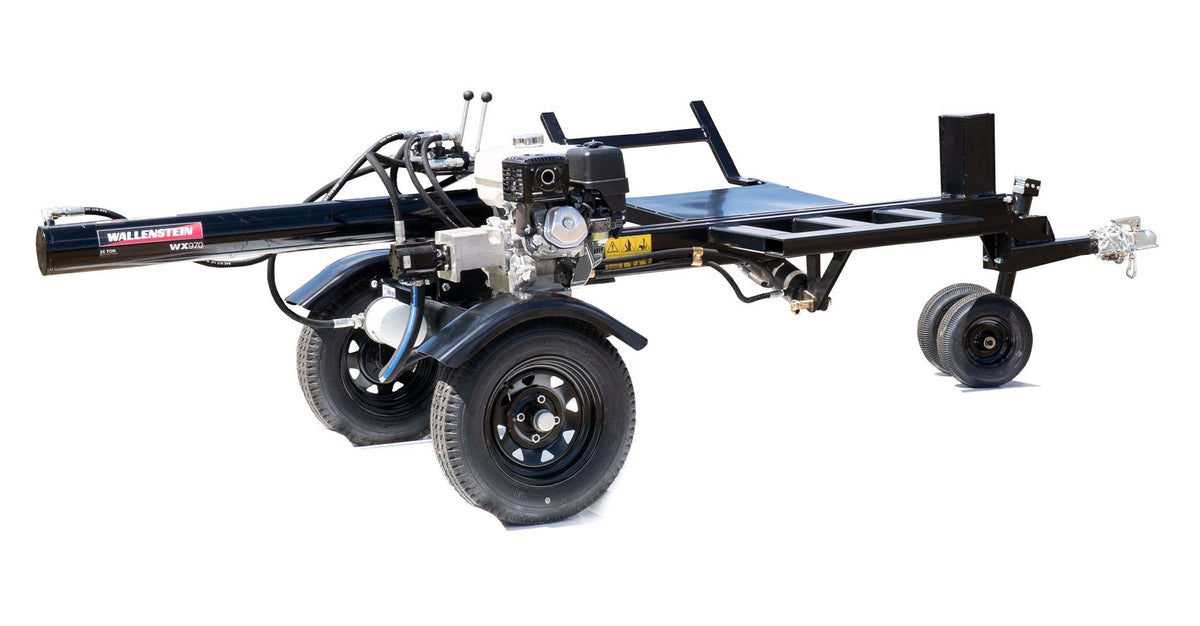

The Wallenstein WX950 25-Ton Trailer-Mounted Horizontal Log Splitter combines a 9-hp Honda GX270 engine, a 4.5 x 24 in splitter cylinder, and a hydraulic log lifter to make demanding firewood processing more manageable. Its self-contained hydraulic system delivers 25 tons of splitting force without requiring tractor hydraulics, while the horizontal design, wide log shelves, grip-strip stop block, and 24 in split opening provide a stable work area for processing suitable logs. With a 2 in ball hitch, trailer mounting, standard safety chains, and 5.3 x 12 LRB SportTrail tires, the WX950 is designed for convenient transport between work areas.

Efficient, Self-Contained Splitting Performance

Power comes from a Honda GX270 engine rated at 9 hp (6.6 kW) at 3,600 rpm. The engine drives a two-stage gear pump that produces 16 gpm (60.5 L/min) of hydraulic flow. This self-contained configuration allows the splitter to operate as a standalone machine rather than relying on a tractor-mounted hydraulic system.

The 4.5 in x 24 in cylinder and 25-ton splitting force provide the working capacity needed for horizontal log splitting. An average 14-second cycle time supports productive operation, while the auto-return detent on the splitter valve helps reduce repetitive control movement between cycles. The open-center log lifter valve uses spring return to neutral for controlled operation of the hydraulic log lift.

Hydraulic Log Lifter and Work-Surface Features

The hydraulic log lifter has a documented capacity of 750 lb, helping raise heavy rounds onto the 25 in-high splitter bed. Wide log shelves provide additional support around the splitting area, and the grip-strip stop block helps keep logs positioned during operation. The 10 in wedge height accommodates the documented splitting configuration, and a 4-way splitting wedge is listed as a documented accessory.

Transport and Trailer Configuration

The WX950 is trailer-mounted and includes a 2 in ball hitch, standard safety chains, and 5.3 x 12 LRB SportTrail tires. Its documented machine weight is 785 lb, with overall dimensions of 81 x 63 x 38 in (length x width x height). The horizontal layout and transport-ready configuration make it suitable for moving the splitter to different firewood-processing locations.

Key Features

• 25-ton horizontal splitting force
• Honda GX270 engine with 9 hp (6.6 kW) output at 3,600 rpm
• Self-contained hydraulic system
• 4.5 x 24 in splitter cylinder
• Two-stage gear pump with 16 gpm (60.5 L/min) hydraulic flow
• Hydraulic log lifter with 750 lb documented capacity
• 24 in split opening
• 14-second average cycle time
• 10 in wedge height and 25 in bed height
• Hands-free return with auto-neutral splitter valve
• Wide log shelves and grip-strip stop block
• 2 in ball hitch and standard safety chains
• 5.3 x 12 LRB SportTrail tires
• 4-way splitting wedge documented as an accessory
