WOODSPLITTER, 6.5HP, HV 27 TON

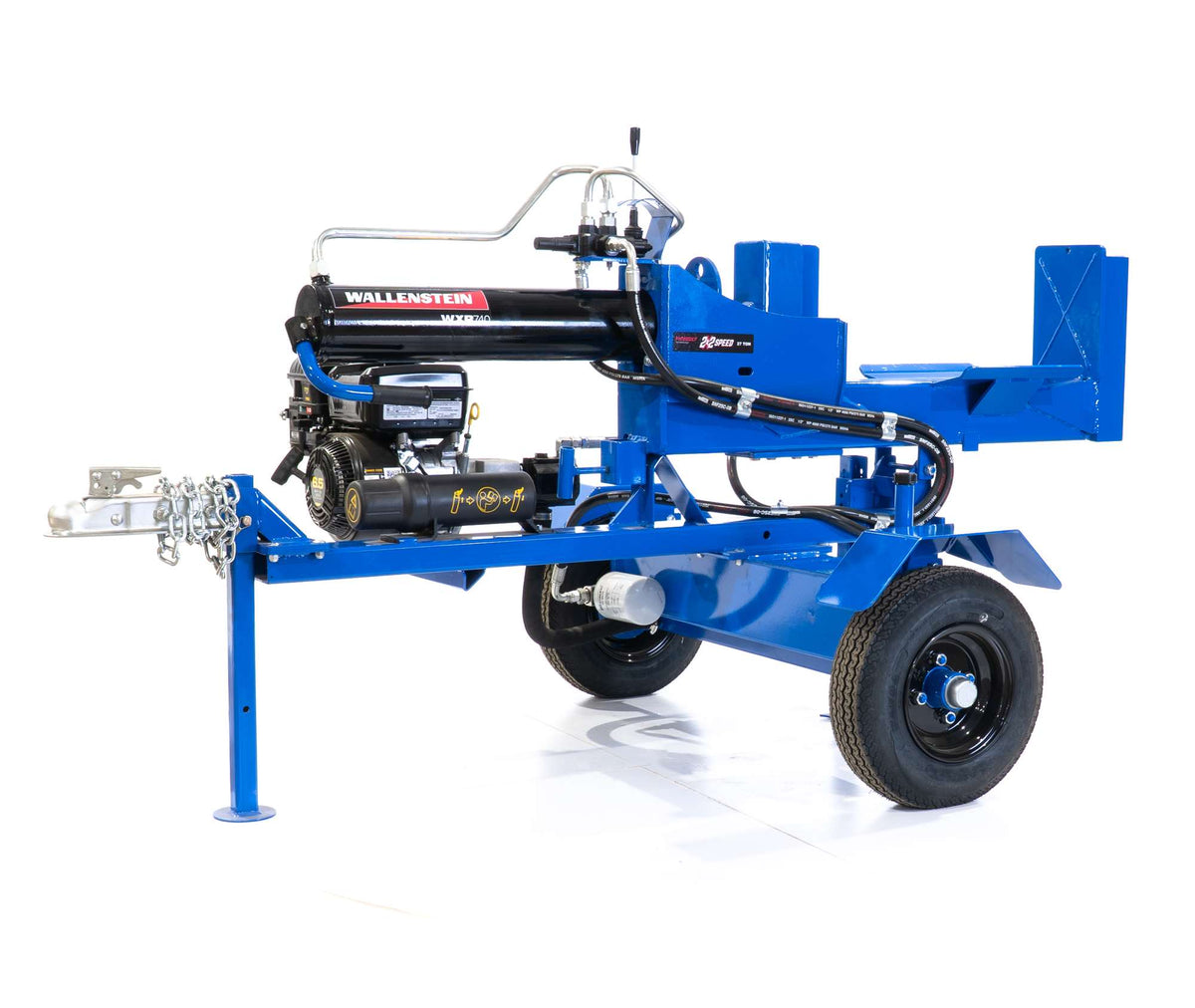

The Wallenstein WXR740 27-Ton Horizontal/Vertical Log Splitter is a gasoline-powered, towable splitter built for efficient firewood processing at home, on the property, or wherever logs need to be handled. Powered by a Vanguard 6.5 hp (203 cc) engine, it delivers 27 tons of split force through a self-contained hydraulic system. Its horizontal and vertical operating positions provide flexibility for different log sizes and handling conditions, while Firebolt technology, a wide wedge, direct-pressure hydraulics, and hands-free return support productive splitting cycles. This supplied variant is the orange WXR740-ORA.

Reliable 27-Ton Splitting Performance

The WXR740 is designed to provide substantial splitting force for demanding firewood work. Its 4.5-inch cylinder and 10-inch wedge height work with the 27-ton hydraulic system to process logs through a 24-inch split opening. The two-stage hydraulic pump helps support efficient operation, with an average splitter cycle time of 5.35 seconds and a full cycle time of 11 seconds.

Horizontal and Vertical Operation

Switch between horizontal and vertical splitting positions to suit the work at hand. Horizontal operation is useful for conventional loading and splitting, while vertical operation can help reduce the need to lift larger or heavier logs onto the bed. The 27-inch bed height provides a defined working platform for splitting tasks.

Towable, Self-Contained Design

Built on a towable trailer chassis, the WXR740 can be moved to different work areas using its 2-inch ball hitch. The splitter has a total weight of 570 pounds and a tongue weight of 32 pounds. Its self-contained hydraulic system has a 6 US gallon hydraulic capacity, so no external hydraulic-flow requirement is specified for operation.

Key Features

• 27-ton split force for demanding firewood processing
• Vanguard 6.5 hp (203 cc) gasoline engine
• Horizontal and vertical splitting positions
• Firebolt technology
• Wide wedge with 10-inch (25 cm) wedge height
• Two-stage hydraulic pump
• Direct-pressure hydraulic system
• Hands-free return function
• 24-inch (61 cm) split opening
• Towable trailer chassis with 2-inch ball hitch
• Self-contained 6 US gallon (23 L) hydraulic system
• Orange specified color variant

Specifications

Compatibility and Requirements

The Wallenstein WXR740 is compatible with towable trailer log-splitter applications and is designed for horizontal and vertical splitting. Towing requires a vehicle equipped for a 2-inch ball hitch. The unit uses a self-contained hydraulic system with a 6 US gallon capacity; no external hydraulic-flow requirement is specified.
