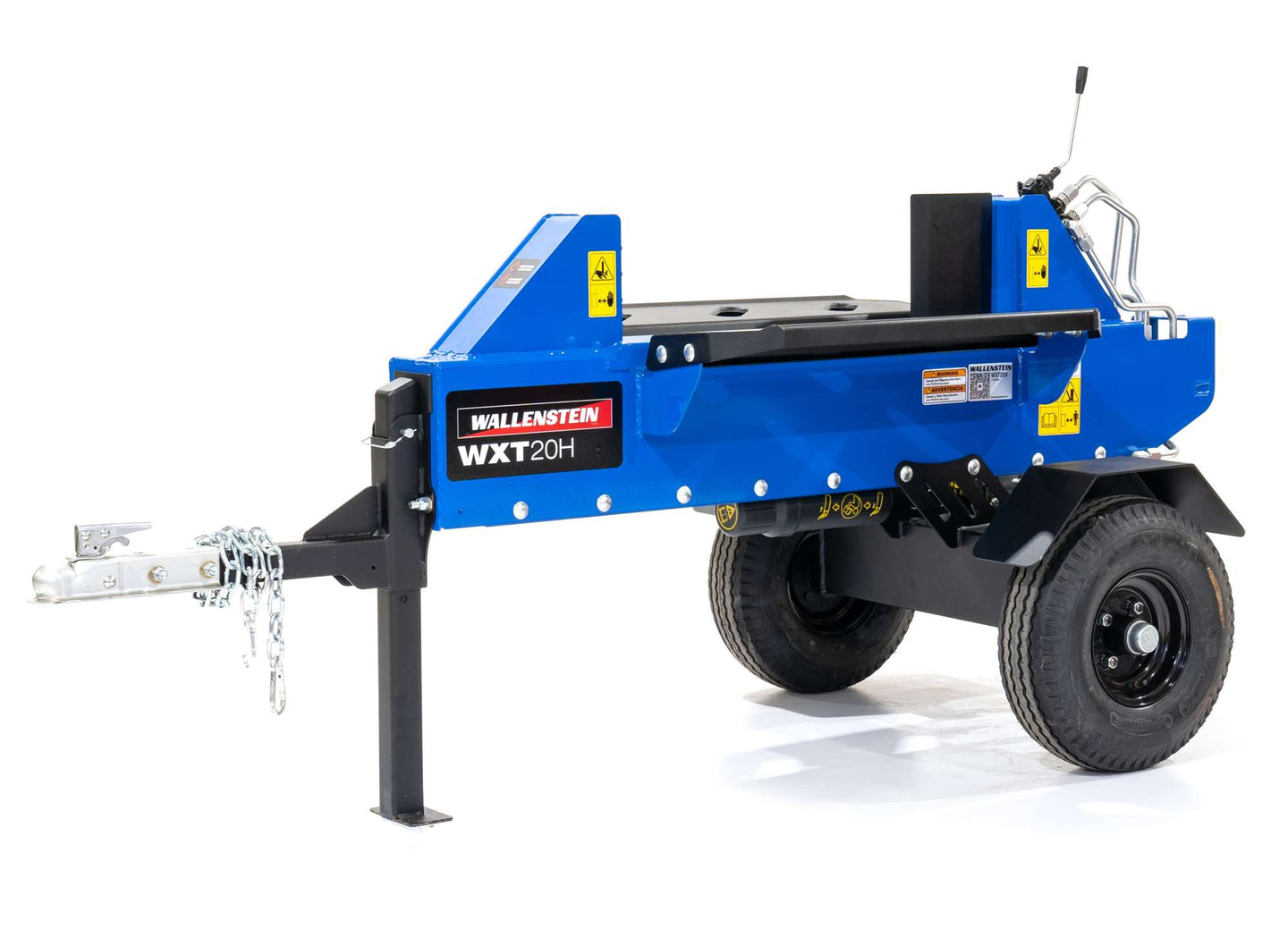

Wallenstein - WXT20H- Wood Splitter Self Powered, Two-Way Towable

The Wallenstein WXT20H Self-Powered Horizontal Log Splitter delivers 20 tons of splitting force with convenient two-way splitting action. Powered by a Vanguard® 6.5 hp (203 cc) engine, this towable wood splitter is designed for rural properties, woodlots, and firewood processing where dependable self-contained operation is important. Its horizontal configuration provides a 24-inch split opening, while wide log shelves help support logs during handling. With a towable design, two-stage hydraulic pump, and a 2-inch ball hitch, the WXT20H is built for practical transport and efficient splitting without requiring tractor PTO power.

Key Features

• 20-ton split force: Provides the force required for demanding firewood-splitting applications.
• Two-way splitting action: Splits in both directions to help improve productivity during repeated use.
• Self-powered operation: Uses a Vanguard® 6.5 hp (203 cc) engine rather than tractor PTO power.
• Horizontal configuration: Offers a 24-inch (61 cm) split opening for processing suitable logs.
• Two-stage hydraulic pump: Supports the splitter’s hydraulic operation and cycle performance.
• Wide log shelves: Help support logs alongside the splitting area.
• Towable design: Equipped with an 18.2-inch (46.23 cm) tire diameter and 2-inch ball hitch.
• Practical cycle times: Average splitter cycle time is 6.6 seconds, with a full cycle time of 13.2 seconds.

Built for Mobile, Self-Contained Splitting

The WXT20H combines a self-contained engine and hydraulic system with a towable chassis, making it suitable for moving between rural properties, woodlots, and firewood work areas. The horizontal bed is positioned at a 27.5-inch (69.85 cm) height, providing a defined working platform for horizontal splitting. Its wide log shelves help keep material supported near the splitting area while the two-way action allows the splitting mechanism to work in both directions.

A 4-inch (10 cm) cylinder and 9.375-inch (23.8 cm) wedge height are matched to the splitter’s 20-ton capacity. The hydraulic system has a 3.75 US gallon (14 L) capacity. The WXT20H has a total weight of 523 lb (237 kg), with overall dimensions of 90.7 x 37.6 x 45.4 inches (230 x 95.5 x 115 cm).

Specifications

Transport and Application

The Wallenstein WXT20H is designed for towable use and includes a 2-inch ball hitch. Its 37.6-inch (95.5 cm) transport width and 523 lb (237 kg) total weight are important considerations when planning transport and storage. The self-powered design makes the splitter suitable for applications where independent engine operation is preferred.
