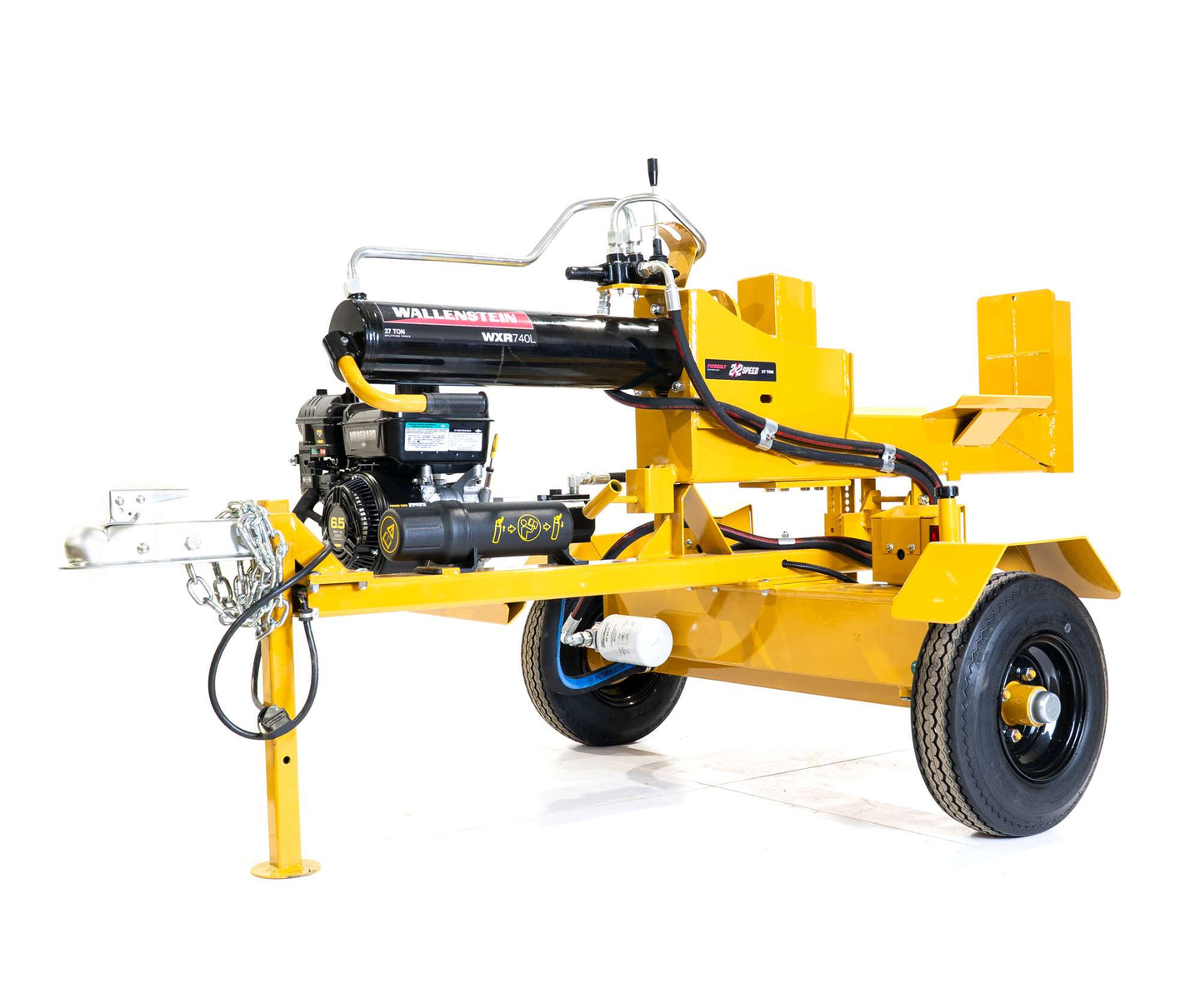

Wallenstein WXR740L | Log Splitters | Horizontal/Vertical - Towable/Self-Contained 2022

The Wallenstein WXR740L Firebolt Log Splitter is a gasoline-powered, 27-ton log splitter built for efficient residential and property-maintenance firewood processing. Its horizontal and vertical splitting positions make it practical for both manageable logs and larger rounds that are too heavy to lift onto the bed. The self-contained hydraulic system is powered by a Vanguard 6.5 hp engine, while Firebolt two-speed technology, a two-stage hydraulic pump, and an average splitter cycle time of 5.35 seconds help keep splitting work moving. As the light-equipped “L” variant, the WXR740L also features factory-installed trailer lighting, highway-towable equipment, and a 2-inch ball hitch for transport between locations.

Efficient 27-Ton Splitting Performance

The WXR740L delivers 27 tons of splitting force through a direct-pressure cylinder arrangement. Because the cylinder is directly inline with the log, full splitting force is applied as the wedge drives into the wood. The wide wedge helps spread and pop logs over a short distance, supporting efficient splitting and reduced cycle time.

Firebolt technology combines regenerative mode for faster wedge travel with full-power mode when additional force is required. The two-stage hydraulic pump is designed to move quickly during the cycle while maintaining the power needed for demanding logs. The manufacturer lists an average splitter cycle time of 5.35 seconds and a full cycle time of 11 seconds.

Horizontal and Vertical Operation

Switch between horizontal and vertical splitting to match the size and weight of the log. Horizontal operation provides a convenient working position for logs that can be lifted onto the 24-inch split opening, while vertical operation allows larger rounds to be split without lifting them onto the splitting bed.

The hands-free return system automatically returns the wedge to its starting position and then switches to neutral. This auto-neutral function helps simplify operation between cycles.

Highway-Towable L Variant

The WXR740L is configured as a towable trailer-mounted splitter with highway tires, safety chains, trailer lighting, and a 2-inch ball hitch. The factory-installed light kit is specific to the L variant and includes brake lights and turn signals using a standard 4-pin connector. With a total weight of 570 lb (259 kg) and a listed tongue weight of 32 lb (15 kg), the unit is designed for transport to different work areas when properly hitched and operated according to the manufacturer’s instructions.

Key Features

• 27-ton splitting force
• Horizontal and vertical splitting positions
• Vanguard 6.5 hp (203 cc) gasoline engine
• Firebolt two-speed technology
• Two-stage hydraulic pump
• Direct-pressure cylinder alignment
• Wide wedge for efficient log opening
• Hands-free wedge return with automatic neutral
• Highway-towable trailer configuration
• Factory-installed light kit on the WXR740L variant
• 24-inch (61 cm) split opening
• Self-contained hydraulic system

Specifications

Hydraulic System and Accessories

The WXR740L uses a self-contained hydraulic system with a two-stage hydraulic pump and 6 US gal (23 L) hydraulic capacity. No external hydraulic-flow requirement is specified for this model.

Listed accessories include the W4130 4-Way Wedge, W4204 All Weather Splitter Cover, W4211 Clamp On Shelf, W4202 Hitch Extension, and W4213 Stroke Limiter.
