Wallenstein WP245 | Firewood Processors | Winch Infeed - Tractor 2022

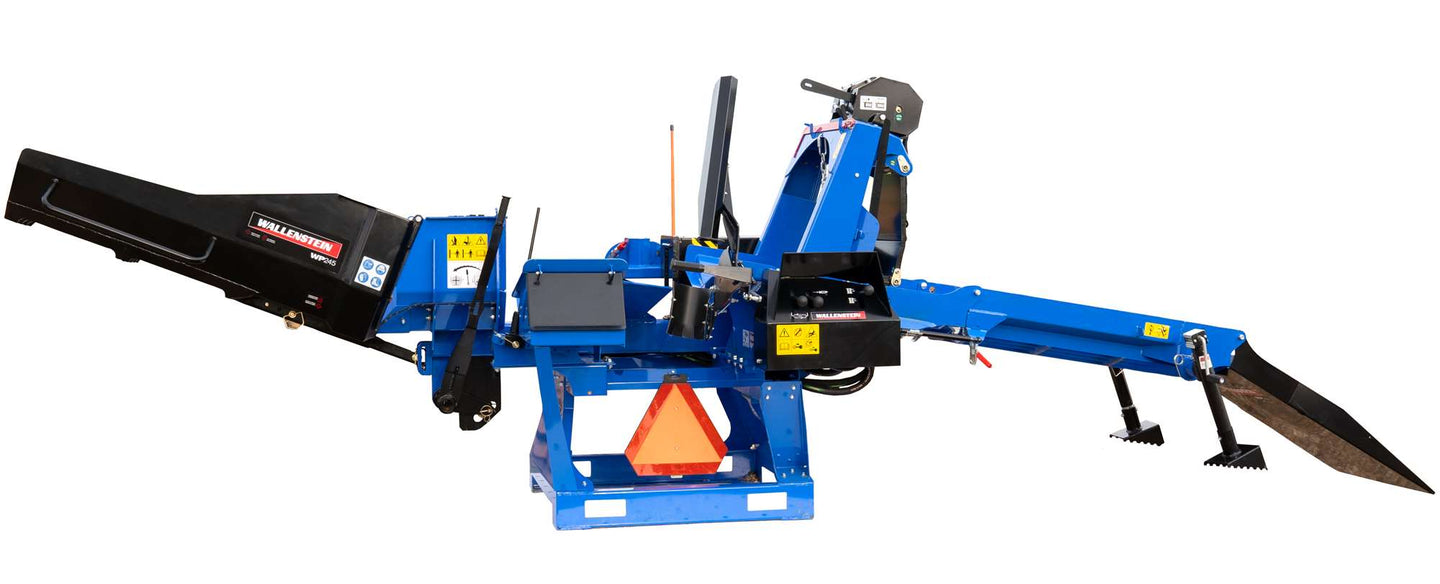

The Wallenstein WP245 Firewood Processor is a tractor-mounted firewood processing system designed to turn logs into firewood using your tractor’s hydraulic power. With a 25-ton split force, a 24-inch split opening, and capacity for logs up to 22 inches in diameter, the WP245 is built for demanding firewood production. Its hydraulic winch infeed helps position logs for processing, while the three-point hitch mounting system provides compatibility with Category I and Category II tractors. With throughput of up to 2 bush cords per hour, automatic cycle operation, and a range of integrated handling features, the WP245 is suited to property owners, firewood producers, and operators processing substantial quantities of wood.

Efficient Tractor-Powered Firewood Processing

The Wallenstein WP245 transfers hydraulic power directly from the tractor to the processor. Its 25-ton splitting system provides the force needed for firewood production, with a 24-inch split opening and a maximum log diameter of 22 inches. The full-stroke splitting cycle time varies with the hydraulic flow supplied by the tractor, allowing performance to respond to the capabilities of the host machine.

The processor is designed for practical operation from log handling through discharge. Its hydraulic winch has a pulling capacity of 1,550 lb and includes 50 feet of 1/4-inch rope to help bring logs into position. A length indicator supports consistent processing, while the adjustable 4-way wedge allows the operator to configure the split. The adjustable offload chute directs processed firewood away from the machine, with a discharge chute height of 54 inches.

Key Features

• 25-ton hydraulic split force
• Processes logs up to 22 inches in diameter
• 24-inch split opening
• Hydraulic winch infeed with 1,550 lb pulling capacity
• 50-foot winch rope with 1/4-inch diameter
• Throughput of up to 2 bush cords per hour
• Adjustable 4-way wedge
• Adjustable offload chute
• Automatic cycle for hands-free operation
• Built-in toolbox
• Floating stabilizer
• Length indicator
• Pivoting chainsaw holder
• Three-point hitch mounting for Category I and Category II systems

Tractor Compatibility and Requirements

The WP245 is a tractor-mounted firewood processor that connects using a three-point hitch compatible with Category I and Category II mounting systems. The minimum required tractor power is 45 HP. The tractor must provide hydraulic flow between 12 and 24 US gallons per minute, equivalent to 45–91 L/min. The recommended saw bar length is 22 inches.

Transport and Storage

The WP245 measures 220 x 69 x 66 inches when open. For transport or storage, it folds to 98 x 69 x 79 inches. Its total weight is 1,728 lb, so the tractor and hitch system should be suitable for the specified machine weight and dimensions.
