Wallenstein Woodsplitter 9-HP HV 5X24 CYL

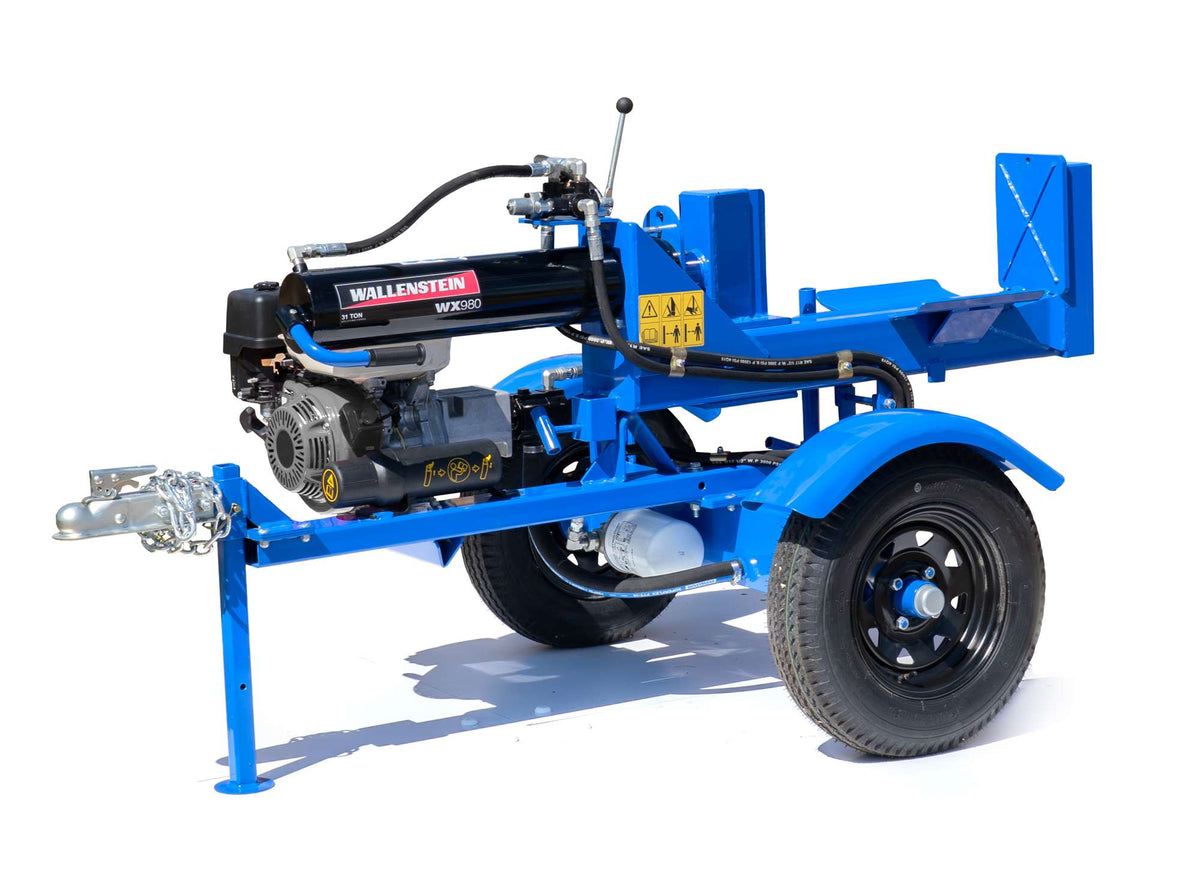

The Wallenstein WX980 31-Ton Horizontal/Vertical Towable Log Splitter is a trailer-mounted, self-contained wood splitter designed for demanding firewood processing. Its 31-ton split force, 24-inch split opening, and horizontal or vertical operating positions provide flexible handling for a wide range of log-splitting tasks. Powered by a Vanguard 10 hp, 305 cc engine and equipped with a two-stage hydraulic pump, the WX980 delivers direct pressure and an average splitter cycle time of 6.69 seconds. Its towable design, 2-inch ball hitch, and 635-pound total weight make it suitable for transporting to different work areas, while the vertical splitting position can help reduce the need to lift larger logs onto the splitter bed.

Key Features

• 31-ton split force: Provides substantial splitting power for demanding firewood applications.
• Horizontal and vertical operation: Switch between orientations to suit log size, handling preferences, and working conditions.
• 24-inch split opening: Accommodates logs up to the specified split-opening size.
• Vanguard engine: Powered by a 10 hp, 305 cc engine.
• Two-stage hydraulic pump: Rated at 16 gpm (60.5 L/min) for the self-contained hydraulic system.
• Hands-free return: The splitter control valve includes a three-position, auto-return detent.
• Towable trailer-mounted design: A 2-inch ball hitch and 5.30 x 12 tires support transport between work locations.
• Wide wedge and direct pressure: Designed to provide focused splitting action through the 5-inch cylinder.
• Optional accessories: Compatible accessories include the W4130 4-way wedge, W4211 clamp-on shelf, W4202 hitch extension, and W4214 stroke limiter.

Built for Flexible Log Handling

The WX980 is designed to adapt to the job. In horizontal mode, logs can be positioned on the splitter bed for conventional processing. For larger or heavier rounds, the vertical orientation allows logs to be split at ground level, reducing the need to lift them onto the bed. The 24-inch cylinder stroke and 10-inch wedge height support consistent splitting action across the working area.

The splitter’s 31-ton force is supported by a 5-inch cylinder and a self-contained hydraulic system with a 4.5 US gallon (17 L) hydraulic capacity. The two-stage pump is rated at 16 gpm (60.5 L/min), while the average splitter cycle time is 6.69 seconds and the full cycle time is 13.38 seconds. The three-position control valve with auto-return detent helps streamline repeated splitting cycles.

Transport and Trailer Configuration

As a towable, trailer-mounted log splitter, the WX980 is equipped with a 2-inch ball hitch and 5.30 x 12 tires. It has a listed tongue weight of 62 pounds and a total weight of 635 pounds (288 kg). The transport width is 50 inches (127 cm), and the overall dimensions are 80 x 50 x 42 inches (203 x 127 x 107 cm), measured as length by width by height.

Specifications

Optional Accessories

• W4130: Optional 4-way wedge accessory
• W4211: Optional clamp-on shelf accessory
• W4202: Optional hitch extension accessory
• W4214: Optional stroke limiter accessory
