Wallenstein Woodsplitter, 6.5HP, 27TON

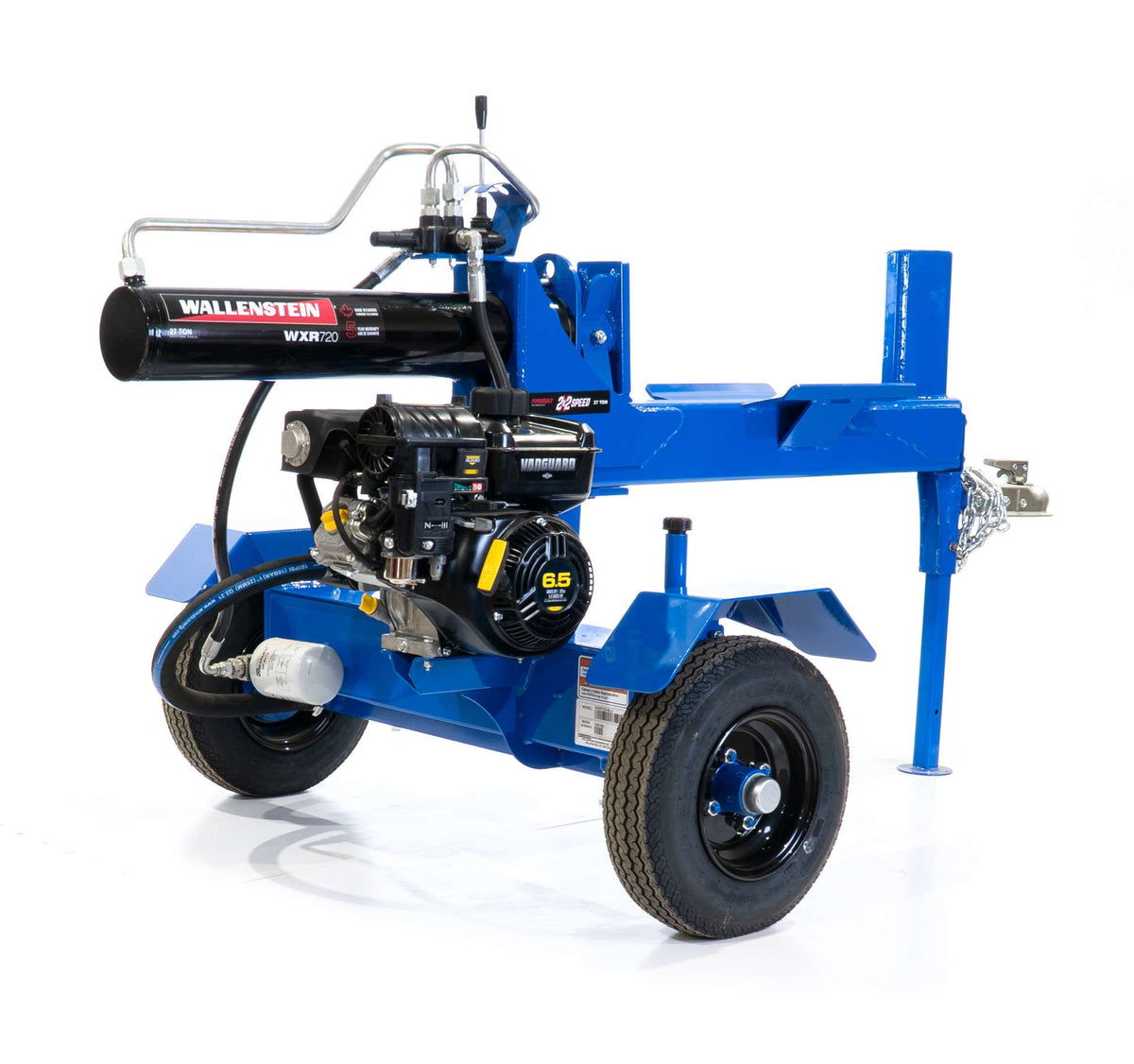

Meet the Wallenstein WXR720 Woodsplitter, a horizontal, towable and self-contained log splitter designed for demanding firewood processing. Also identified by the manufacturer as the WXR720L Firebolt, this 27-ton splitter combines a Vanguard® 6.5 hp (203 cc) gasoline engine with Firebolt technology, a two-stage hydraulic pump and a 24-inch (61 cm) wedge stroke. Its automatic return and neutral functions help streamline repetitive splitting, while the folding support, 2-inch ball hitch and factory-installed light kit support convenient transport and setup. With a complete operating cycle of 11 seconds, the WXR720 is suited to homeowners, property managers and firewood users who need substantial splitting force without relying on a tractor PTO or external hydraulic system.

Key Features

• 27-ton splitting force: Provides the force required for demanding log-splitting work.
• Self-contained gasoline operation: Powered by a Vanguard® 6.5 hp (203 cc) engine, with no tractor PTO compatibility specified.
• Horizontal orientation: Supports a practical, stable configuration for processing logs.
• 24-inch wedge stroke: The wedge travels 24 inches (61 cm) for substantial splitting movement.
• Firebolt technology: Manufacturer-designated Firebolt technology is integrated into the splitter’s operating system.
• Two-stage hydraulic pump: Delivers the hydraulic system configuration specified for this model.
• Automatic return and neutral: Helps simplify repeated splitting cycles.
• Wide wedge: Designed as part of the manufacturer’s feature package for the WXR720L.
• Transport-ready design: Includes a 2-inch (6 cm) ball hitch, 4.80 x 8 tires, folding support and a factory-installed light kit.
• Trailer accessory kit: Included in the manufacturer’s listed features.

Built for Efficient Firewood Processing

The Wallenstein WXR720 uses a 27-ton hydraulic splitting force and a 4.5-inch (11 cm) cylinder to handle demanding firewood tasks. Its 10-inch (25 cm) wedge height and 24-inch (61 cm) stroke provide the working movement specified for the model, while the 27-inch (69 cm) work-table height helps position the splitter for horizontal operation.

The two-stage hydraulic pump and automatic return and neutral functions are intended to support a consistent work sequence. The manufacturer lists an average operating cycle of 5.35 seconds and a complete operating cycle of 11 seconds. Actual productivity will depend on log size, wood type, operator workflow and handling conditions.

Transport and Setup

As a towable, self-contained splitter, the WXR720 is equipped with a 2-inch (6 cm) ball hitch and 4.80 x 8 tires. Its folding support helps with the equipment’s transport configuration, while the factory-installed light kit is included among the manufacturer’s listed features. The splitter has an overall length of 76 inches, width of 40 inches and height of 44 inches, with a total weight of 460 lb (209 kg).

Specifications

Compatibility and Requirements

The WXR720 is a self-contained gasoline-powered log splitter. The manufacturer does not specify tractor PTO compatibility or an external hydraulic-flow requirement for this model. Its hydraulic system has a 6 US gal (23 L) capacity and uses a two-stage hydraulic pump.
