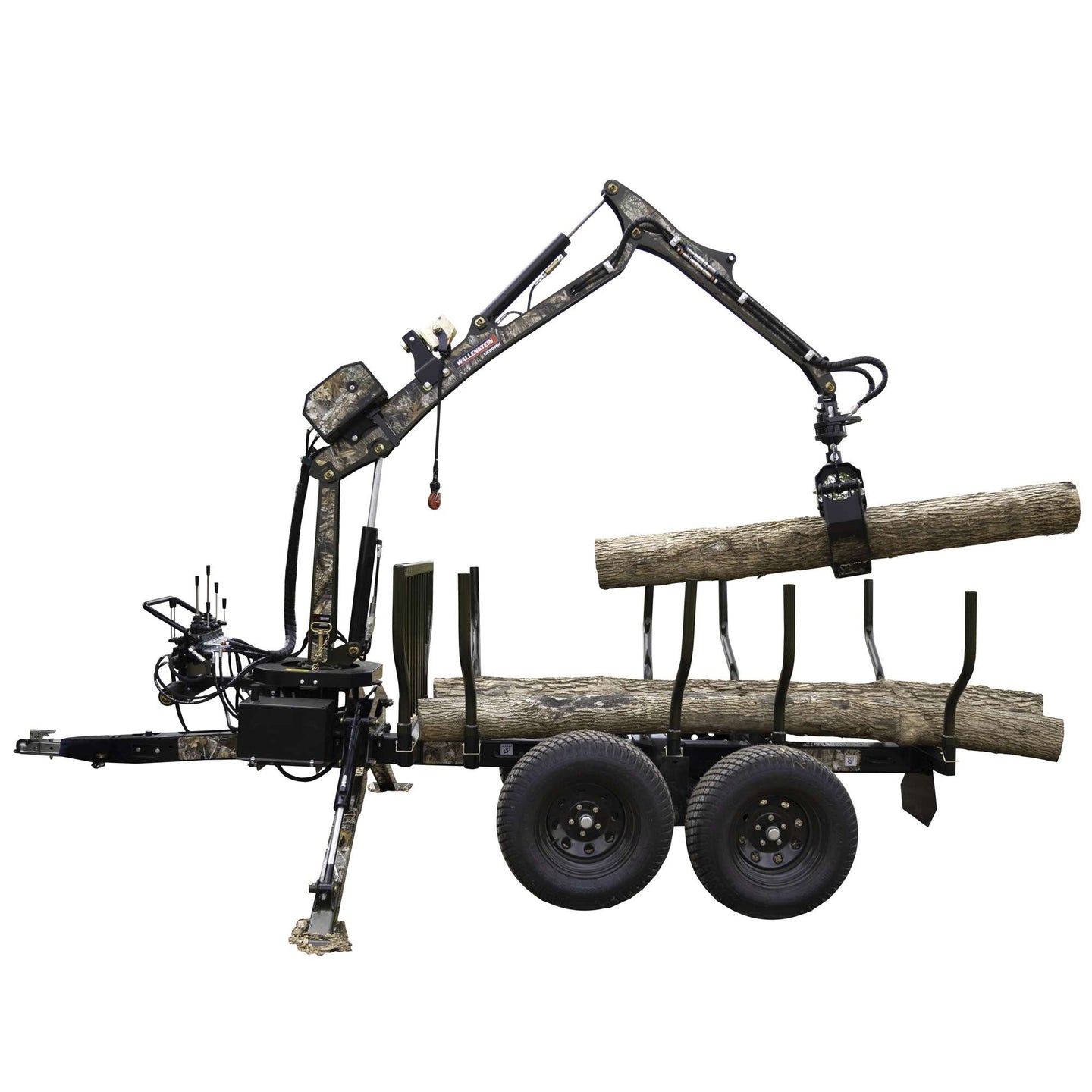

Wallenstein LXT95 | Log Loader Trailers | Off-Road - Towable/Self-Contained

The Wallenstein LXT95 Off-Road Log Loader Trailer is a towable, self-contained log handling solution designed for use with larger all-terrain vehicles. Built for demanding off-road work, it combines a 5,000 lb (2,268 kg) load capacity with an 800 lb (363 kg) lift capacity, a 9 ft 6 in (290 cm) horizontal reach, and a self-contained Vanguard® 6.5 hp engine. Its 270° boom rotation, 360° grapple rotation, hydraulic stabilizers, sliding axle, and 96 in (244 cm) trailer bed help support efficient log loading and positioning in locations where conventional equipment may not be practical.

Efficient Off-Road Log Handling

The LXT95 is designed to move and load logs in off-road environments while remaining towable behind a suitable larger all-terrain vehicle. The loader provides a vertical reach of 12 ft 11 in (394 cm) from the ground to the closed grapple and a 9 ft 6 in horizontal reach, giving operators useful working range around the trailer. A grapple opening from 3 to 30 in (8 to 76 cm) accommodates a range of log sizes, while 360° grapple rotation supports controlled positioning during loading.

The trailer’s 5,000 lb load capacity provides substantial carrying capability, and the 800 lb lift capacity supports the handling of logs onto the 96 in trailer bed. Hydraulic stabilizers spread to 7 ft 5 in (226 cm) for working stability, while the hydraulic sliding axle and walking beam axle contribute to the trailer’s off-road configuration.

Key Features

• 5,000 lb (2,268 kg) load capacity
• 800 lb (363 kg) lift capacity
• 9 ft 6 in (290 cm) horizontal reach
• 12 ft 11 in (394 cm) vertical reach from ground to closed grapple
• 270° boom swing range
• 360° grapple rotation
• 3–30 in (8–76 cm) grapple opening
• Self-contained Vanguard® 6.5 hp (203 cc) engine
• Hydraulic stabilizers with 7 ft 5 in (226 cm) spread width
• Hydraulic sliding axle and walking beam axle
• Self-centering bunk posts
• 5-stick control with swivel
• 2 in ball hitch with surge brakes
• 14 in (36 cm) ground clearance

Designed for Stable Loading

The LXT95 incorporates hydraulic stabilizers and a broad 7 ft 5 in stabilizer spread to support the trailer during loading operations. The boom offers a 270° rotation range, while the grapple rotates through 360° for controlled log placement. The self-centering bunk posts help position logs on the trailer bed, and the 5-stick control with swivel provides the stated operating configuration for loader functions.

Compatibility and Towing

The Wallenstein LXT95 is a towable/self-contained off-road log loader trailer intended for larger all-terrain vehicles. It uses a 2 in ball hitch and surge brakes. Confirm that the towing vehicle and hitch setup are suitable for the trailer’s stated empty weight, tongue-weight range, dimensions, and intended operating conditions before use.
