WALLENSTEIN

Wallenstein LXT115AT | Tractor-Powered Log Loader Trailers | Off-Road - Towable/Self-Contained

SKU LXT115AT
Starting at $24,44900
Starting at $24,44900

Add your items to the Cart to begin to build and price your package.


When you're ready to take the next step, please reach out to us for a quote, or complete the checkout process to reserve your items in store. (The online checkout just emails us a copy of the items you are interested in, we then reach out to you to confirm everything.)

Showing pricing online is difficult, here's why:
*Pricing shown at MSRP and may not include available Timberstar Tractor or Manufacturer discounts.
*Finance rates, payment calculations, whether or not you need a down payment, all available through our sales staff.
*Online pricing does not include freight, assembly, finance, delivery, or pdi fees.
*Our manufacturer's pricing is subject to change without notice.
*Manufacturer sales promotions valid unitl the end of the month they were issued in.
*Price match available for many brands we carry.

Description

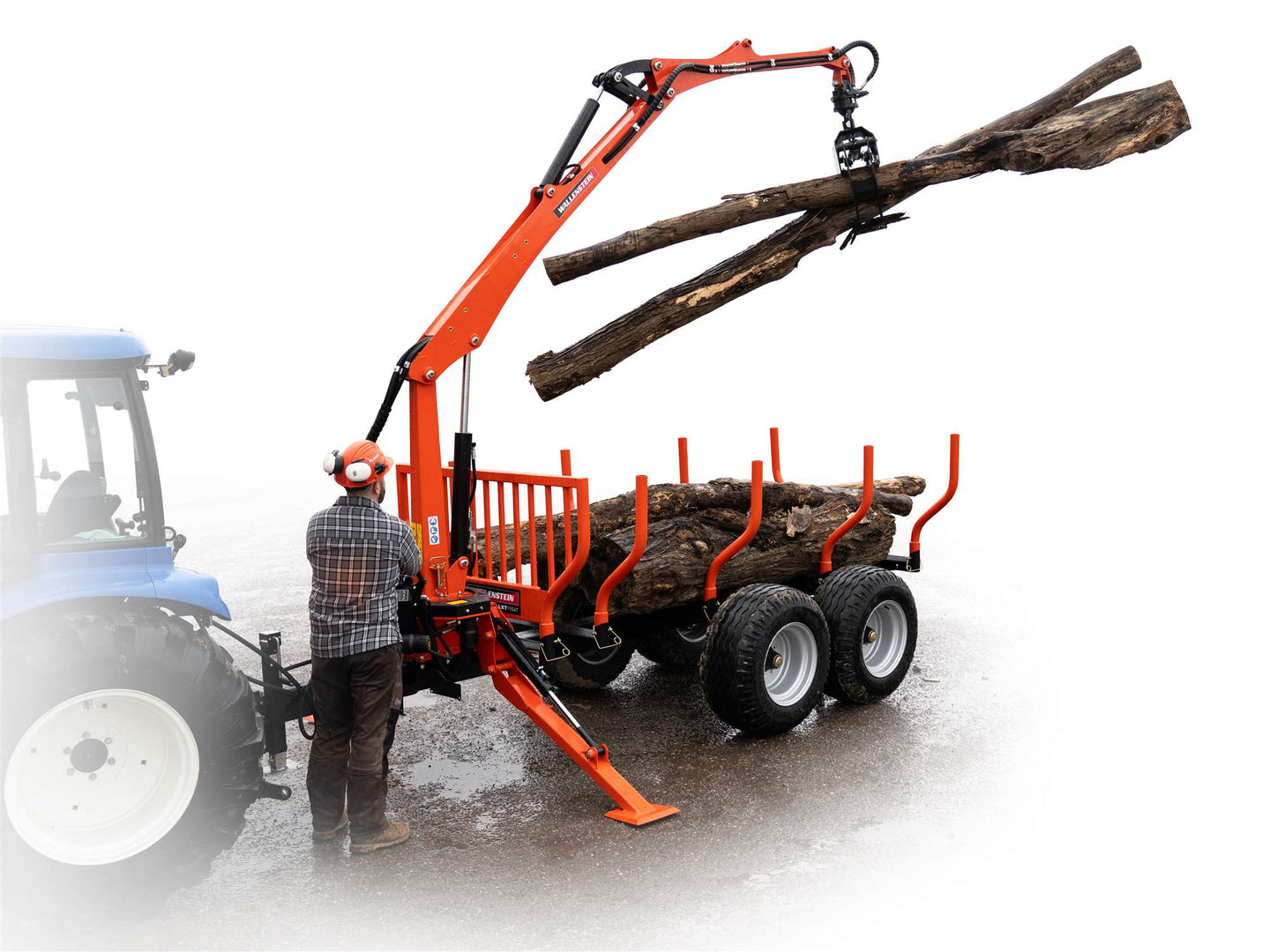

Wallenstein LXT115AT Tractor-Powered Log Loader Trailer is an off-road, towable log loader trailer designed for compact tractors with compatible hydraulic power and a suitable tractor-to-trailer connection. With an 11 ft 6 in horizontal reach, 11,500 lb load capacity, and 1,200 lb lift capacity, the LXT115AT supports efficient log handling in off-road applications. Its tractor-powered configuration uses the tractor’s hydraulic system, eliminating the need for a dedicated engine or published PTO horsepower requirement. The trailer combines a rotating grapple, wide boom swing, hydraulic stabilizers, and a walking beam axle for practical positioning and loading performance.

Key Features

  • 11 ft 6 in (351 cm) horizontal reach
  • 11,500 lb (5,216 kg) load capacity
  • 1,200 lb (544 kg) lift capacity
  • 15 ft 5 in (470 cm) vertical reach from ground to closed grapple
  • 270° boom rotation for broad working coverage
  • 360° hydraulic grapple rotation
  • Grapple opening from 3 in to 40 in (8 cm to 102 cm)
  • Hydraulic stabilizers with an 8 ft 11 in (272 cm) spread
  • 5-stick control with swivel
  • Self-centering bunk posts
  • Walking beam axle
  • Clevis hitch with 360° swivel
  • 17 in (43 cm) ground clearance
  • Off-road towable design

Built for Tractor-Powered Log Handling

The LXT115AT is categorized by Wallenstein as a tractor-powered log loader trailer. In this configuration, the loader is powered directly by compatible tractor hydraulics. This allows the trailer to be used with a suitable compact tractor without relying on a dedicated loader engine. The tractor must provide compatible hydraulic power and a suitable connection between the tractor and trailer.

A 270° boom swing range helps position the grapple across the trailer and surrounding loading area, while 360° hydraulic grapple rotation supports controlled log orientation during handling. The 5-stick control with swivel provides the operating interface for loader movements, and hydraulic stabilizers help support the trailer during loading operations.

Trailer and Loading Design

The trailer provides a 132 in (335 cm) bed length and uses self-centering bunk posts to help position logs during loading. The walking beam axle is suited to the off-road towable design, while 17 in of ground clearance supports travel over uneven working areas. The clevis hitch features a 360° swivel and is specified for connection to the towing tractor.

When deployed, the stabilizers spread to 8 ft 11 in (272 cm). Confirm that the intended work area provides sufficient clearance for the trailer, boom movement, grapple operation, and stabilizer spread.

Specifications

Brand Wallenstein
Manufacturer Wallenstein Equipment Inc.
Model LXT 115AT
Product code LXT115AT
Product category Off-road towable
Power source Optional engine; tractor-powered configuration uses tractor hydraulics
Load capacity 11,500 lb (5,216 kg)
Lift capacity 1,200 lb (544 kg)
Horizontal reach 11 ft 6 in (351 cm)
Vertical reach, ground to closed grapple 15 ft 5 in (470 cm)
Trailer bed length 132 in (335 cm)
Grapple opening 3 in–40 in (8 cm–102 cm)
Grapple rotation 360°
Boom rotation 270°
Stabilizer width, spread 8 ft 11 in (272 cm)
Main boom cylinder diameter 3 in (8 cm)
Dipper cylinder diameter 2.5 in (6 cm)
Stabilizer cylinder diameter 2 in (5 cm)
Ground clearance 17 in (43 cm)
Tires BKT Implement AW-909 15.0/55-17
Hitch Clevis, 360° swivel
Trailer weight, empty 2,470 lb (1,120 kg)
Tongue weight, empty with log loader 480 lb (218 kg)
Tongue weight, empty with log loader and power pack 555 lb (252 kg)
Overall dimensions, L × W × H 198 in × 87 in × 77 in (503 cm × 221 cm × 196 cm)

Tractor Compatibility

The Wallenstein LXT115AT is intended for compact tractors with compatible hydraulic power and a suitable tractor-to-trailer connection. Wallenstein categorizes this model as tractor-powered. A specific hydraulic requirement or PTO horsepower rating was not published with the verified product specifications, so confirm tractor compatibility before operation.
