Description

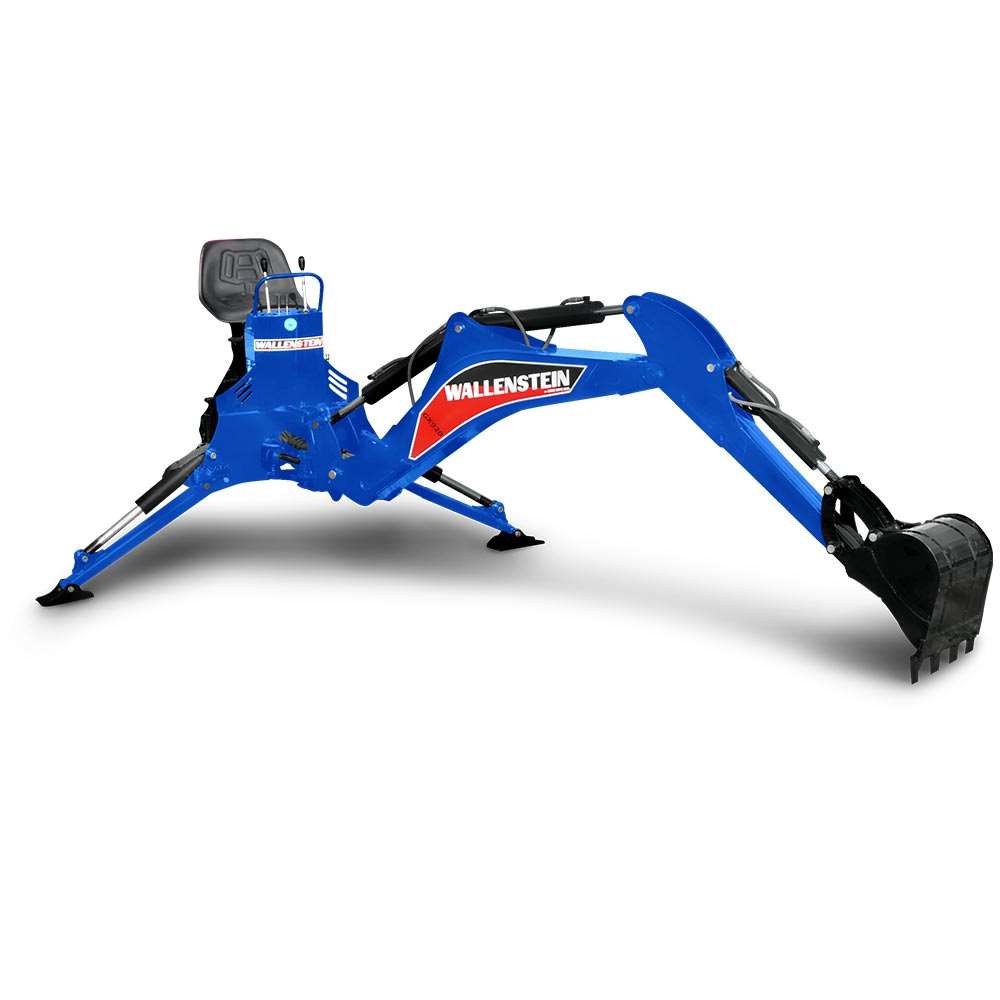

The Wallenstein GX920 Backhoe is a tractor- or skidsteer-mounted digging attachment designed for landscaping, excavation, and rural property work. With a digging depth of 9 ft 4 in (284 cm), a 45–120 HP engine range, and a 180° swing arc, the GX920 provides the reach and digging performance needed for a wide range of dirt-moving jobs. It can be configured with a subframe, skidsteer universal plate, PT302 Category I 3-point mount, or PT322 Category II 3-point mount. Hydraulic hoses and couplers are included, along with a flow divider for hydraulic operation.

Built for Versatile Excavation

The GX920 combines a curved boom, dual swing cylinders, and hydraulic stabilizers to support controlled digging from a tractor or skidsteer. Its 141 in (358 cm) reach from the swing post and 9 ft 4 in digging depth make it suitable for excavation work where access, reach, and digging depth are important. The 180° bucket rotation and 180° swing arc provide working flexibility when positioning the machine around trenches, landscaping projects, and other excavation areas.

Designed for durability, the backhoe features greaseable pins, hardened steel bushings, replaceable teeth, and swing cushioning. Hydraulic stabilizers provide an 89 in (226 cm) spread, while the 10.5 in (27 cm) ground clearance helps accommodate working conditions around the attachment. The GX920 delivers a rated SAE dipper boom digging force of 3,200 lb (1,451 kg) and SAE bucket digging force of 3,925 lb (1,780 kg).

Key Features

9 ft 4 in (284 cm) digging depth
For tractors and skidsteers with 45–120 HP engines
Subframe, skidsteer universal plate, PT302 Category I, and PT322 Category II mounting options
Required hydraulic flow of 5–27 gpm (19–102 lpm)
2,250 psi (15,513 kPa) operating pressure
Curved boom for digging reach and working versatility
Dual swing cylinders with a 180° swing arc
180° bucket rotation
Hydraulic stabilizers with 89 in (226 cm) spread
Flow divider included
Hydraulic hoses and couplers included
Greaseable pins and hardened steel bushings
Replaceable teeth and swing cushioning

Tractor and Skidsteer Requirements

The Wallenstein GX920 is intended for tractors and skidsteers in the 45–120 HP engine range. The hydraulic system must provide 5–27 gpm (19–102 lpm) of hydraulic flow. Available mounting systems include a subframe, skidsteer universal plate, PT302 Category I 3-point mount, or PT322 Category II 3-point mount. Confirm the selected mounting system and hydraulic specifications are suitable for the host machine before purchase.

Specifications

Brand	Wallenstein
Model	GX920 / GX 920
Product type	Tractor- or skidsteer-mounted backhoe
Digging depth	9 ft 4 in (284 cm)
Engine HP range, tractor	45–120 HP
Engine HP range, skidsteer	45–120 HP
Required hydraulic flow	5–27 gpm (19–102 lpm)
Operating pressure	2,250 psi (15,513 kPa)
Stabilizer width, spread	89 in (226 cm)
Reach from swing post	141 in (358 cm)
Bucket rotation	180°
Swing arc	180°
SAE dipper boom digging force	3,200 lb (1,451 kg)
SAE bucket digging force	3,925 lb (1,780 kg)
Boom lift capacity	750 lb (340 kg)
Ground clearance	10.5 in (27 cm)
Loading height	89 in (226 cm)
Overall operating height, fully raised	135 in (343 cm)
Total weight	791 lb (359 kg)
Transport dimensions, L × W × H	81 × 43 × 92 in (206 × 109 × 234 cm)
Main boom cylinder diameter	3 in (76 mm)
Dipper cylinder diameter	2.5 in (64 mm)
Bucket cylinder diameter	2.5 in (64 mm)
Number of swing cylinders	2
Swing cylinder diameter	2.5 in (64 mm)
Stabilizer cylinder diameter	3 in (76 mm)
Mounting system	Subframe; skidsteer universal plate; PT302 Category I; PT322 Category II
Flow divider	Included
Hydraulic hoses and couplers	Included
