WALLENSTEIN

Wallenstein FX140S | Skidding Winches | Synthetic Rope - Tractor 2022

SKU FX140S
Starting at $8,84900
Starting at $8,84900

Add your items to the Cart to begin to build and price your package!


When you're ready to take the next step, please reach out to us for a quote.

*Pricing shown at MSRP and may not include available Timberstar Tractor or Manufacturer discounts.
*Finance rates, payment calculations, whether or not you need a down payment, all available through our sales staff.
*Pricing may not include freight, assembly, finance, delivery, or pdi fees.
*Manufacturer pricing subject to change without notice.
*Manufacturer sales promotions valid unitl the end of the month they were issued in.
*Price match available for many brands we carry.

Description

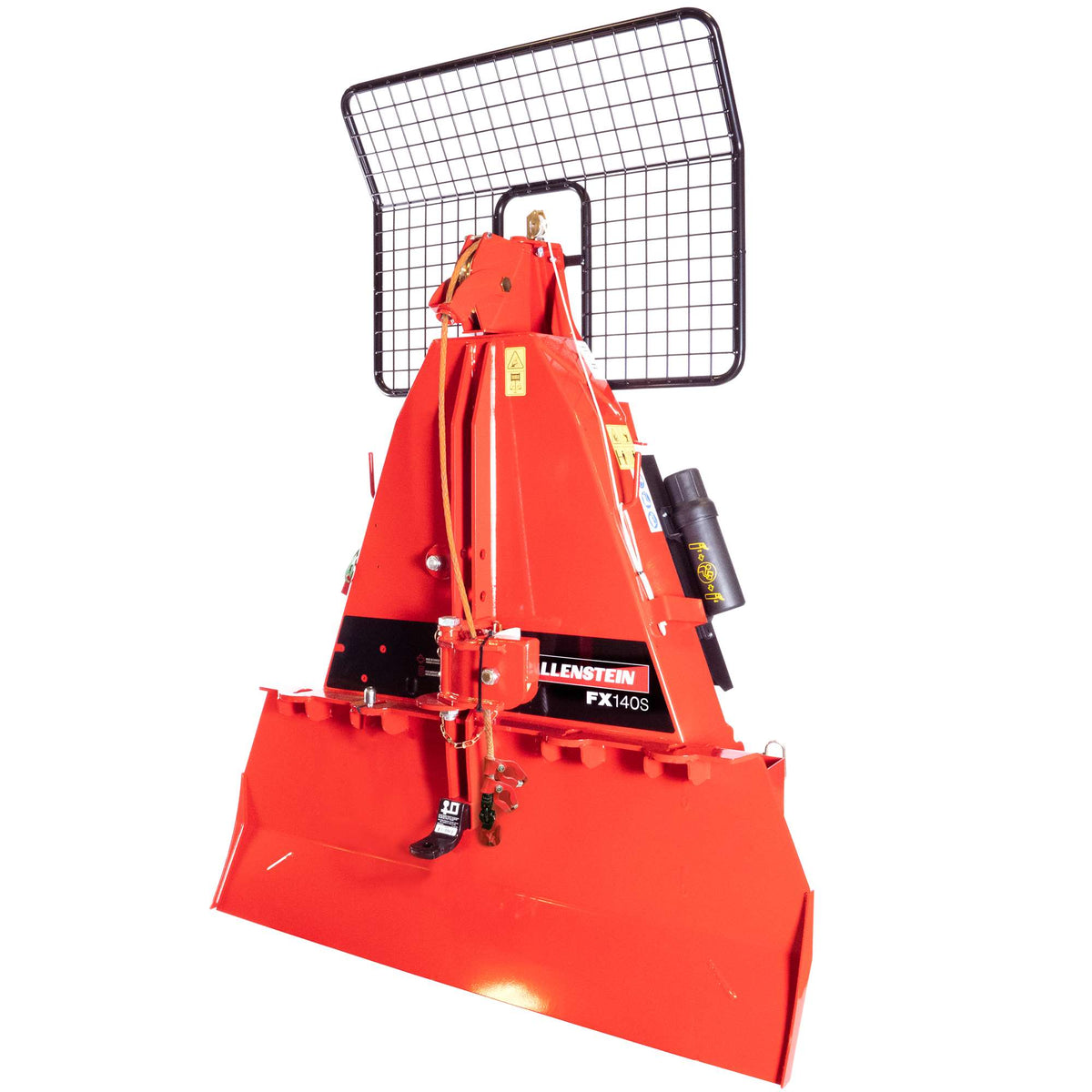

Wallenstein FX140S Skidding Winch is a PTO-driven forestry winch designed for tractors in the 80–120 HP range. With a 14,000 lb (6,350 kg) pulling capacity, synthetic rope, a mechanical dry disc clutch, and a Category II mounting system, it provides a practical solution for skidding logs and other demanding pulling applications. The FX140S combines a 200 ft (60 m) synthetic rope with two choker chains and two keyhole sliders, giving operators a capable setup for moving material in forestry and land-management work.

Built for High-Capacity Skidding

The FX140S is rated to pull up to 14,000 lb, making it suitable for substantial skidding requirements when matched with an appropriate tractor. Its synthetic rope is 1/2 in (13 mm) in diameter and measures 200 ft (60 m) in length, providing useful reach between the tractor and the load. The winch is driven through the tractor’s PTO at a specified input speed of 540 rpm.

A mechanical winch design and dry disc clutch provide the operating configuration specified by Wallenstein. The line speed is rated from 98–246 ft/min (30–75 m/min). A manual pull rope is included among the key features, along with two choker chains for securing loads during skidding operations.

Key Features

  • 14,000 lb (6,350 kg) pulling capacity
  • Synthetic rope construction
  • 200 ft (60 m) cable length
  • 1/2 in (13 mm) cable diameter
  • Mechanical winch with dry disc clutch
  • 98–246 ft/min (30–75 m/min) line speed
  • Manual pull rope
  • Two choker chains
  • Two keyhole sliders
  • 540 rpm PTO input speed
  • Category II mounting system

Tractor Compatibility and Requirements

The Wallenstein FX140S is intended for use with a tractor power source and requires a tractor in the 80–120 engine HP range. It uses a Category II mounting system and requires a 540 rpm PTO input. Confirm that the tractor meets these power, PTO, and mounting requirements before installation and operation.

Specifications

Specification Detail
Brand Wallenstein
Model FX140S
Product type PTO-driven skidding winch
Engine HP range 80–120 HP
Pulling capacity 14,000 lb (6,350 kg)
Cable type Synthetic rope
Cable length 200 ft (60 m)
Cable diameter 1/2 in (13 mm)
Winch type Mechanical, dry disc clutch
Line speed 98–246 ft/min (30–75 m/min)
Choker chains 2
PTO input speed 540 rpm
PTO height 22 in (56 cm)
Mounting system Category II
Total weight 898 lb (407 kg)
Dimensions (L × W × H) 28 × 59 × 80 in (71 × 150 × 203 cm)

Designed for Forestry and Land Management

With its high pulling capacity, extended synthetic rope, PTO-driven operation, and included load-handling accessories, the Wallenstein FX140S is configured for tractor-based skidding work. Its 59 in (150 cm) transport width and 898 lb (407 kg) total weight should be considered when planning storage, transport, and tractor setup.
