Wallenstein BXTR6438B | Wood Chippers | Hydraulic Feed - Towable/Self-Contained (Electronic Controls)

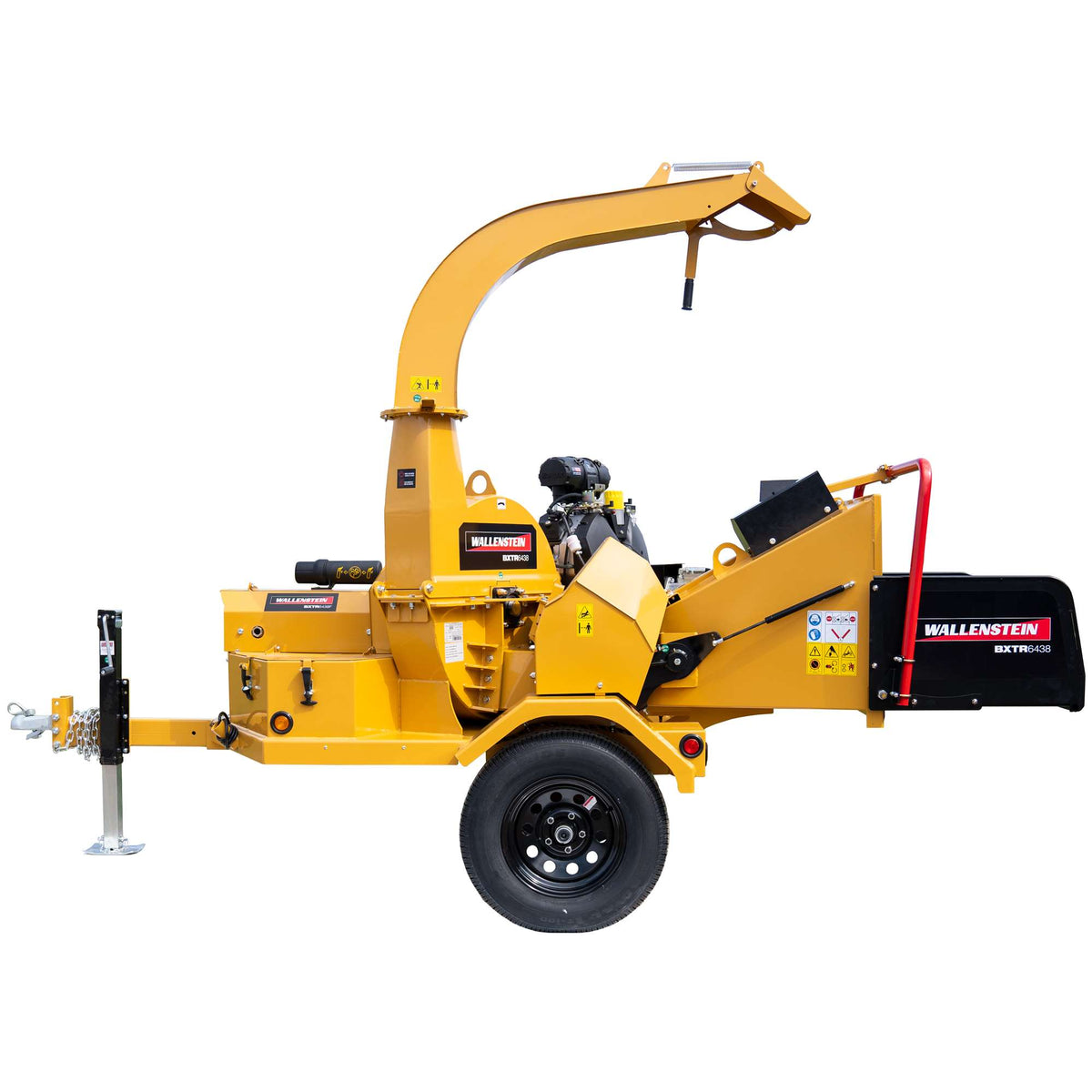

The Wallenstein BXTR6438B is a 7-inch towable, self-contained disc wood chipper designed for rural property maintenance and commercial landscaping projects. Its 37 hp Vanguard EFI engine, dual hydraulic feed rollers, automatic roller speed control, and oversized 30-inch rotor provide a productive solution for processing branches through the wide 7 x 11-inch infeed opening. With electric brakes, a highway-towable chassis, tool-free fold-up feed hopper, adjustable discharge chute, and P3 Pulse on-board intelligence, the BXTR6438B combines mobile convenience with the capability required for demanding chipping work.

Key Features

• 7-inch (17 cm) chipping capacity
• Dual driven hydraulic rollers with automatic roller speed control
• Self-contained hydraulic system with 7 US gal (30 L) hydraulic capacity
• 37 hp (993 cc) Vanguard EFI engine with electric start
• P3 Pulse on-board intelligence
• 30-inch (76 cm) oversized heavy-duty disc rotor
• Four reversible rotor knives
• Maximum feed rate of 129 fpm (39 mpm)
• Wide 7 x 11-inch (18 x 28 cm) chipper infeed opening
• Tool-free fold-up feed hopper
• Adjustable discharge chute with 360-degree rotation
• Positional discharge deflector
• Safety control bar and twig breaker
• Electric brakes for highway towing
• 2-inch ladder-style ball coupler
• Torflex suspension axle and ST205/75R14 tires
• Built-in toolbox

Performance and Handling

The BXTR6438B uses a dual hydraulic roller feed system to draw material into the chipper. Automatic roller speed control helps manage feeding through the machine, while the 7-inch capacity and 7 x 11-inch infeed opening accommodate substantial branches and material. The 30-inch rotor weighs 197 lb (89 kg) and operates at 1,400 rpm, with four reversible rotor knives supporting the disc chipping system.

Processed material exits through a discharge chute measuring 100 inches (255 cm) high. The chute rotates through 360 degrees, and its adjustable design and positional discharge deflector allow the discharge direction to be set for the work area. The fold-up feed hopper is tool-free, helping simplify transport and preparation between locations.

Engine and Hydraulic System

Power comes from a Vanguard 37 hp (993 cc) EFI engine operating at 3,600 rpm. The self-contained hydraulic system has a 7 US gal (30 L) capacity, so the chipper is configured with its own hydraulic system. No external hydraulic flow requirement is specified for this model.

Towing and Transport

The Wallenstein BXTR6438B is configured as a towable/self-contained wood chipper with a highway-towable chassis. It includes electric brakes, a 2-inch ladder-style ball coupler, a Torflex suspension axle, and ST205/75R14 tires. An electric-brake tow vehicle is required for electric-brake operation. The tool-free fold-up feed hopper provides a folded length of 128 inches (326 cm), compared with 149 inches (378 cm) in the open configuration.

Specifications
