Wallenstein BXTR6438 | Wood Chippers | Hydraulic Feed - Towable/Self-Contained (Electronic Controls) 2022

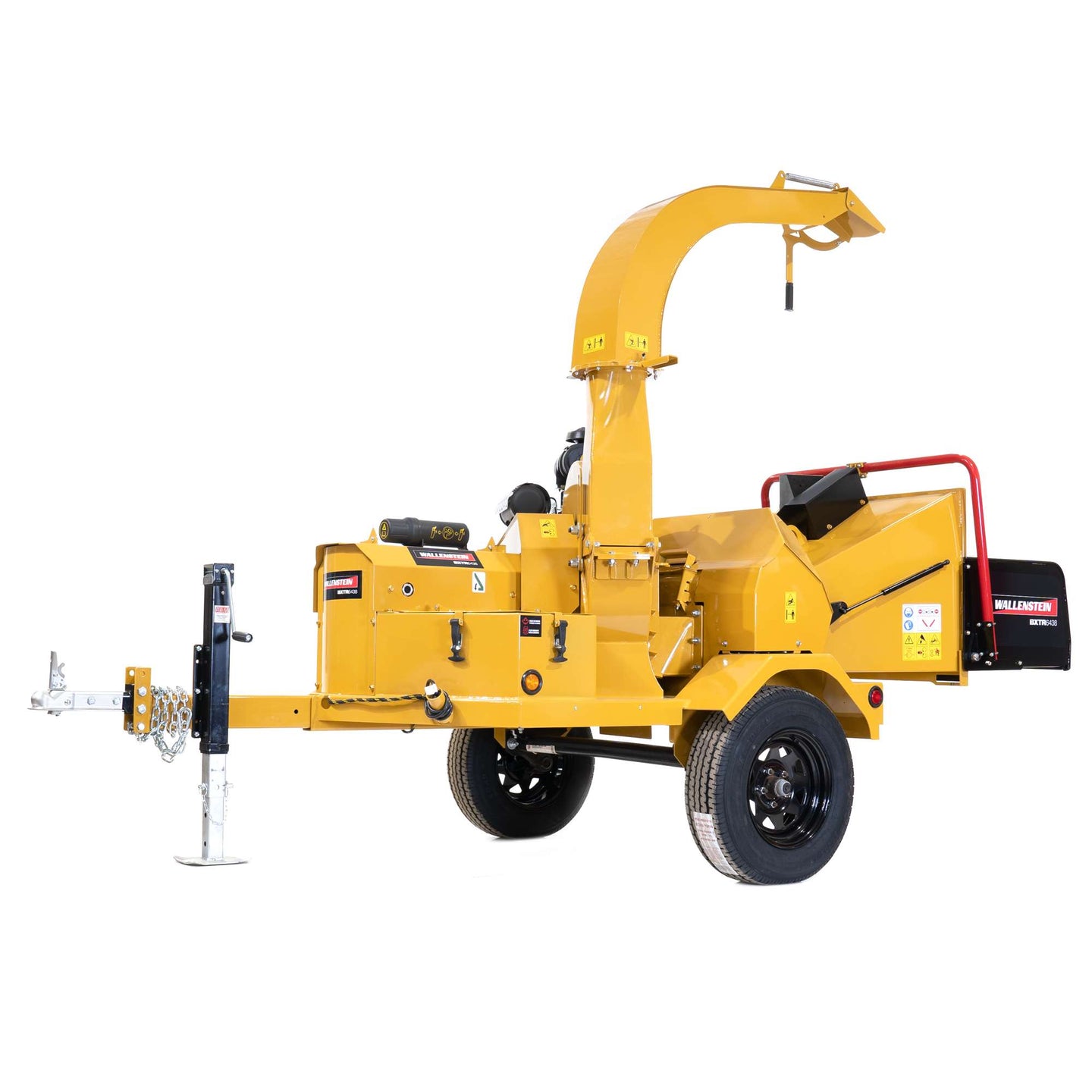

Wallenstein BXTR6438 7 in Hydraulic-Feed Wood Chipper is a self-contained, gasoline-powered trailer wood chipper designed for efficient roadside, property-maintenance, landscaping, and land-clearing work. Its dual hydraulic rollers provide positive material handling, while automatic roller speed control and P3 Pulse electronic controls help support consistent operation. Powered by a Vanguard 40 hp, 993 cc EFI engine, the BXTR6438 processes material up to 7 in (17 cm) in diameter and is highway towable for convenient movement between work locations.

Product Overview

The standard Wallenstein BXTR6438 combines a heavy-duty chipping system with a towable trailer configuration. Its 7 in x 11 in infeed opening accepts suitable branches and woody material, while the 30 in rotor and four reversible knives are designed for productive chipping. The fold-up feed hopper helps reduce the machine’s overall transport length, and the adjustable discharge chute rotates through 360 degrees to direct chips where they are needed.

Electronic P3 Pulse controls, electric start, a safety control bar, automatic roller speed control, and a built-in toolbox contribute to practical day-to-day operation. The trailer uses a Torflex suspension axle, ST205/75R14 tires, and a 2 in ladder-style ball coupler for towing. This is the standard BXTR6438 configuration and does not include electric brakes; it should not be confused with the BXTR6438B electric-brake variant.

Key Features

• 7 in (17 cm) maximum chipping capacity
• Self-contained, gasoline-powered towable configuration
• Vanguard 40 hp, 993 cc EFI engine
• Dual driven hydraulic rollers
• Automatic roller speed control
• P3 Pulse electronic/on-board control system
• Maximum feed rate of 129 fpm (39 mpm)
• Fold-up feed hopper for transport
• Electric start
• 30 in (76 cm) oversized heavy-duty rotor
• Four reversible rotor knives
• Adjustable discharge chute with 360-degree rotation
• 100 in (255 cm) discharge chute height
• Safety control bar and twig breaker
• Built-in toolbox
• Torflex suspension axle
• Highway towable design

Performance and Chipping System

The BXTR6438 uses a dual hydraulic roller feed system driven through a centrifugal clutch and belt drive. The 25 in x 34 in (64 cm x 86 cm) hopper opening provides access to the feed system, while automatic roller speed control helps manage material flow. The rotor operates at 1,400 rpm and weighs 197 lb (89 kg), supporting the machine’s heavy-duty chipping configuration.

Transport and Trailer Configuration

With a total weight of 2,225 lb (1,009 kg) and a tongue weight of 221 lb, the BXTR6438 is built for relocation between job sites. It has a 2 in ladder-style ball coupler and ST205/75R14 tires. The feed hopper folds for transport, with open dimensions of 149 in x 64 in x 100 in and folded dimensions of 128 in x 64 in x 100 in.

Specifications

Configuration Note

This listing describes the standard BXTR6438 configuration with hydraulic roller feed and no electric brakes. The BXTR6438B is a separate electric-brake variant. Confirm the model and applicable operator manual by product version and serial-number range before operation or servicing.
