Wallenstein BXM42 Chipper/Shredder, 3ph, pto driven

SKU BXM42
Starting at $6,84900
Starting at $6,84900

Add your items to the Cart to begin to build and price your package!


When you're ready to take the next step, please reach out to us for a quote.

*Pricing shown at MSRP and may not include available Timberstar Tractor or Manufacturer discounts.
*Finance rates, payment calculations, whether or not you need a down payment, all available through our sales staff.
*Pricing may not include freight, assembly, finance, delivery, or pdi fees.
*Manufacturer pricing subject to change without notice.
*Manufacturer sales promotions valid unitl the end of the month they were issued in.
*Price match available for many brands we carry.

Description

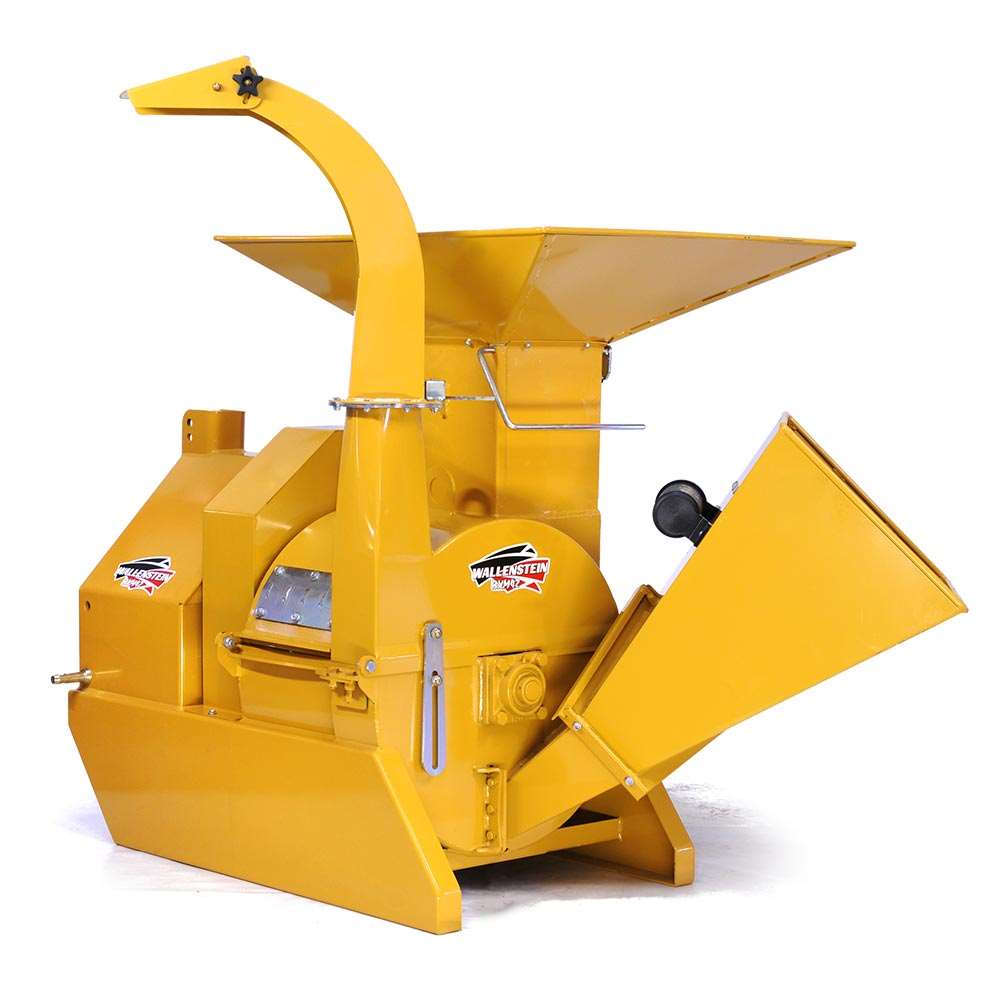

The Wallenstein BXM42 Chipper/Shredder is a PTO-driven, gravity-feed machine designed for rural properties, fence-line maintenance, and general land-clearing projects. With a 4 in (10 cm) chipping capacity and 2 in (5 cm) shredding capacity, it processes branches and other suitable material through dedicated chipping and shredding systems. The BXM42 uses a tractor-powered PTO belt drive, a disc-style chipper, and a hammer-mill shredder, making it a versatile attachment for tractors rated from 30–85 engine HP.

Wallenstein BXM42 Chipper/Shredder Features

The BXM42 combines gravity-feed material handling with separate chipper and shredder openings for flexible processing. Its 4 x 10 in (10 x 25 cm) chipper infeed opening is designed for material within the specified chipping capacity, while the integrated shredder hopper accommodates suitable material for shredding up to 2 in (5 cm).

A heavy-duty rotor measuring 25 in (64 cm) in diameter operates at 1,200 rpm when supplied by the specified 540-rpm PTO input. The chipper uses two knives, while the hammer-mill shredder is equipped with 30 shredder knives. The discharge chute rotates through 360°, and the positional discharge deflector and adjustable discharge chute help direct processed material where required.

  • 4 in (10 cm) chipping capacity
  • 2 in (5 cm) shredding capacity
  • Gravity-feed system
  • PTO belt drive with 540-rpm PTO input
  • Disc chipper and hammer-mill shredder
  • Oversized heavy-duty 25 in (64 cm) rotor
  • Two chipper knives and 30 shredder knives
  • Integrated shredder hopper
  • Adjustable discharge chute with 360° rotation
  • Positional discharge deflector
  • Chop-Block Technology
  • Reversible rotor knives
  • Twig breaker

Chipping and Shredding Capacity

The BXM42 is specified to chip material up to 4 in (10 cm) and shred material up to 2 in (5 cm). The chipper hopper opening measures 18 x 18 in (45 x 45 cm), while the shredder hopper opening measures 33 x 40 in (84 x 102 cm). The shredder housing opening measures 11 x 11 in (27 x 27 cm).

Tractor Requirements and Compatibility

The Wallenstein BXM42 is intended for tractors rated from 30–85 engine HP. It requires a tractor with a 540-rpm PTO and mounts using a Category I 3-point hitch. The machine is also specified as iMatch™ compatible and Quick Hitch compatible.

Specification Detail
Manufacturer model BXM42
Product type PTO-driven chipper/shredder
Feed system Gravity
Engine HP range 30–85 engine HP
Drive system PTO belt drive
PTO input speed 540 rpm
Rotor speed 1,200 rpm
Chipping capacity 4 in (10 cm)
Shredding capacity 2 in (5 cm)
Chipper infeed opening 4 x 10 in (10 x 25 cm)
Chipper type Disc
Shredder type Hammer mill
Chipper hopper opening 18 x 18 in (45 x 45 cm)
Shredder hopper opening 33 x 40 in (84 x 102 cm)
Shredder housing opening 11 x 11 in (27 x 27 cm)
Number of chipper knives 2
Number of shredder knives 30
Rotor diameter 25 in (64 cm)
Rotor weight 170 lb (77 kg)
Discharge chute height 62 in (158 cm)
Discharge chute rotation 360°
PTO height 27 in (69 cm)
Mounting system Category I, iMatch™ and Quick Hitch compatible
Total weight 800 lb (363 kg)
Dimensions (L x W x H) 72 x 44 x 62 in (183 x 112 x 158 cm)
