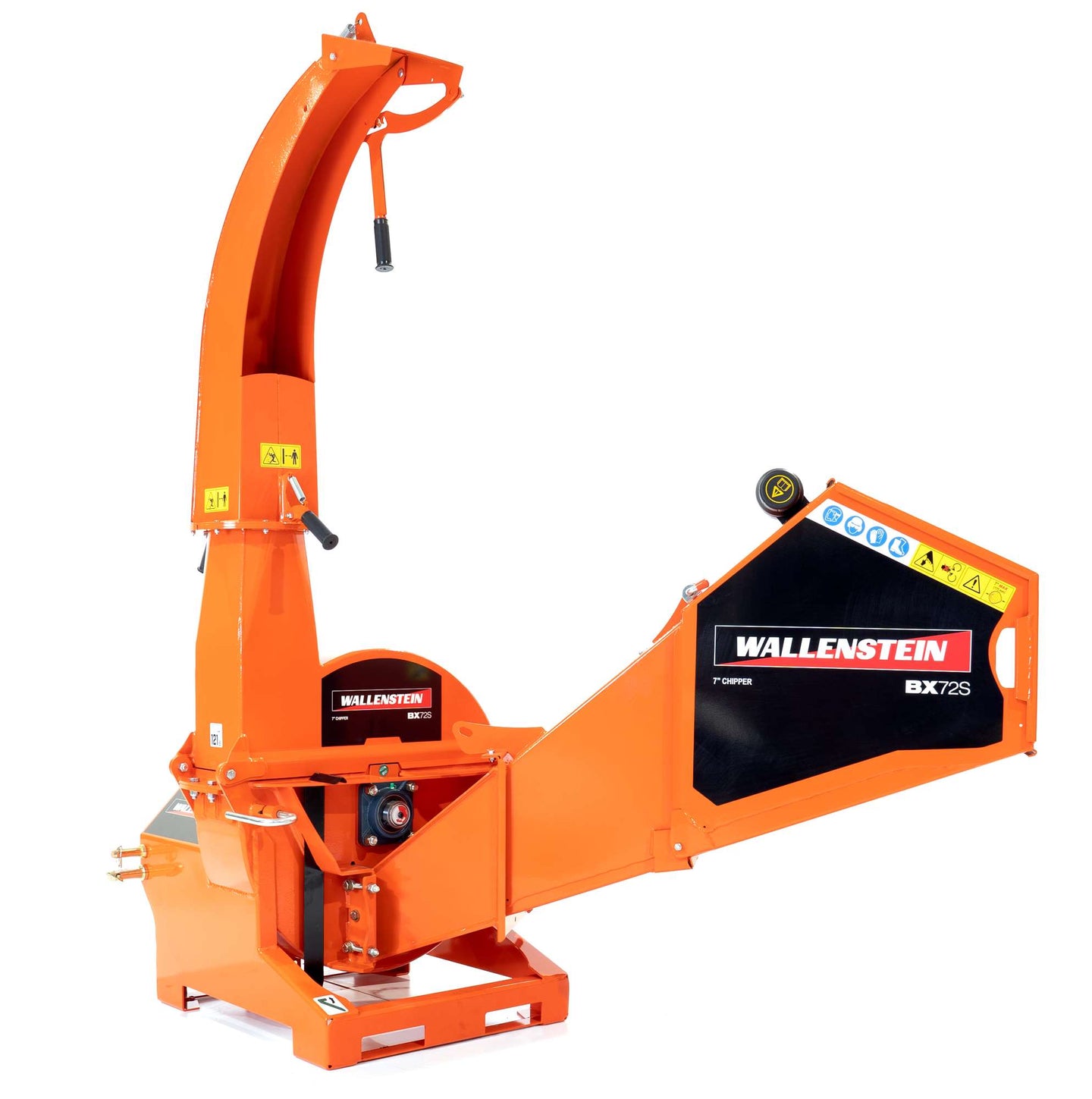

Wallenstein 7in Wood Chipper - 3 Point Hitch - PTO Drive

The Wallenstein BX72S 7in Wood Chipper is a gravity-feed, PTO-driven disc chipper designed for tractor-powered wood processing on rural properties, fence lines, and other land-maintenance projects. Mounted to a Category I three-point hitch, it provides a 7-inch (18 cm) chipping capacity and direct PTO drive for tractors in the 50–85 hp range. Its wide infeed opening, oversized rotor, four reversible knives, adjustable discharge chute, and compact folded transport dimensions make it a practical choice for handling branches and producing wood chips efficiently.

Key Features

• 7-inch (18 cm) chipping capacity for processing branches up to the rated size
• Gravity-feed, manual-feed design with a wide 7 x 12-inch (17 x 30 cm) infeed opening
• PTO direct-drive system with a shear-bolt drive protection arrangement
• Compatible with tractors producing 50–85 hp
• Category I three-point hitch mounting system
• iMatch™ and Quick Hitch compatible
• Four full, hardened, reversible rotor knives with four-bolt mounting
• Oversized 28-inch (71 cm) rotor weighing 175 lb (79 kg)
• Adjustable discharge chute with 360° rotation
• Positional discharge deflector for directing expelled chips
• No-tools fold-up feed hopper for compact transport and storage
• Twig breaker and wide hopper opening for supporting branch processing

Designed for Tractor-Powered Chipping

The BX72S uses a direct PTO drive system to transfer tractor power directly to its disc rotor. The rated PTO speed is 540–1000 rpm, and the chipper is intended for tractors with an engine output between 50 and 85 hp. This makes it suitable for property owners and operators who need a three-point hitch machine for rural cleanup, fence line maintenance, and general wood-chipping work.

Material is introduced manually through the gravity-feed system. The 22 x 25-inch (56 x 64 cm) hopper opening and 7 x 12-inch (17 x 30 cm) chipper infeed opening provide a broad entry area for branches within the machine’s rated capacity. A twig breaker and wide infeed arrangement support consistent manual feeding of suitable material.

Rotor and Cutting System

The BX72S is built around an oversized 28-inch (71 cm) rotor weighing 175 lb (79 kg). Four full rotor knives provide the cutting action, with hardened, reversible knife construction and four-bolt mounting. Reversible knives can be turned when required, helping provide an additional cutting edge during service. The disc chipper design is rated to process material up to 7 inches (18 cm), subject to suitable operating conditions and material handling.

Discharge and Transport

The discharge chute rotates through 360°, allowing the operator to position chip discharge around the tractor and work area. An adjustable chute and positional discharge deflector help direct chips where required. For transport and storage, the feed hopper folds without tools. The folded width is 42 inches (132 cm), compared with a 70-inch (178 cm) open working width.

Tractor Requirements and Compatibility

The Wallenstein BX72S requires a tractor with a 50–85 hp engine range and a PTO rated for 540–1000 rpm. It mounts to a Category I three-point hitch and is compatible with iMatch™ and Quick Hitch systems. Confirm that the tractor’s hitch capacity, PTO configuration, and operating requirements are suitable for the chipper’s 728 lb (330 kg) total weight before use.

Specifications
