Description

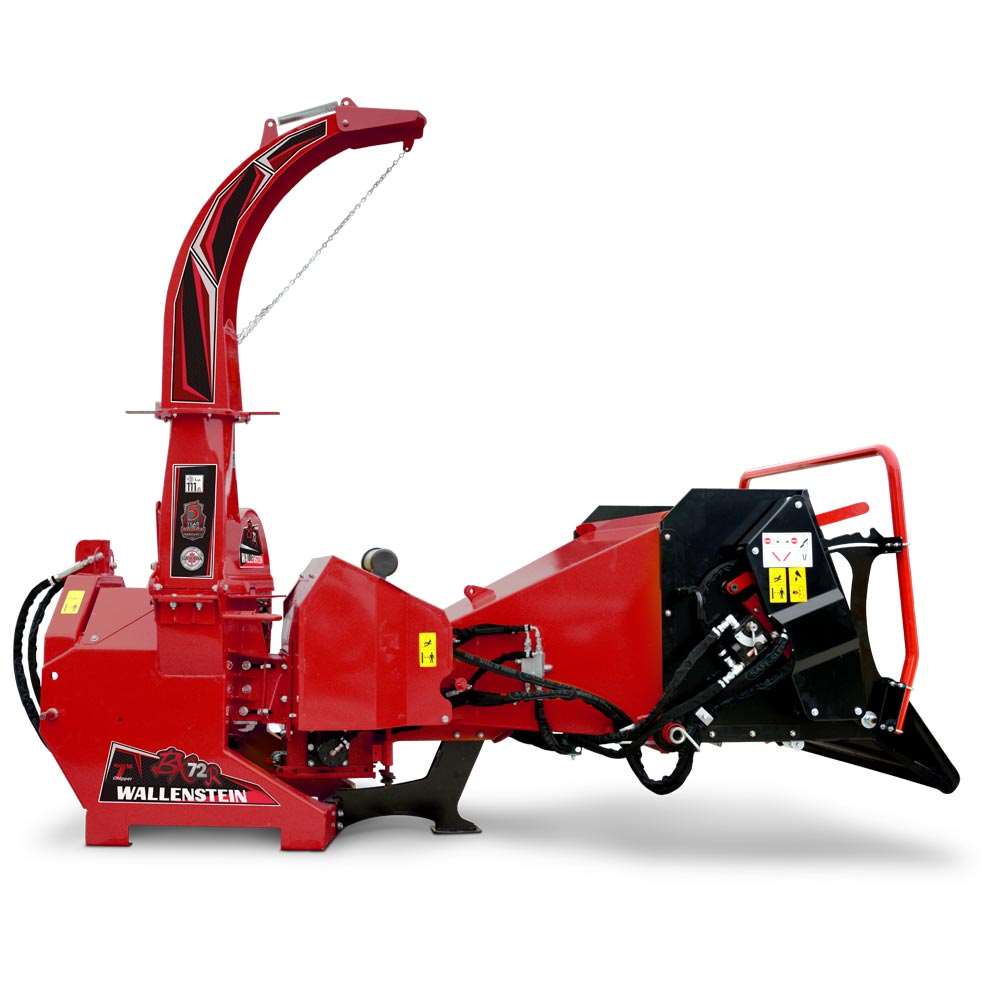

7" chipping capacity, the BX72RI PTO driven wood chipper will handle all your rural or fence line property projects. The two feed rollers are driven by two hydraulic motors and matched with automatic roller speed control. This keeps the oversized heavy duty rotor spinning and processing through all your wood and brush piles.



Feed System Dual Hydraulic Roller
Engine HP Range 45 - 85
Drive System PTO Direct Drive
Chipping Capacity 7" (18 cm)
Chipper Infeed Opening 7" x 12" (18 cm x 31 cm)
On-Board Intelligence P3 Pulse™
Chipper Type Disc
Required Hydraulic Flow 3 - 6 gpm (12 - 23 lpm)
Chipper Hopper Opening 26” x 35” (66 cm x 89 cm)
Number of Chipper Knives 4
Rotor Diameter 28” (71 cm)
Rotor Weight 185 lbs (84 kg)
Discharge Chute Height 90” (228 cm)
Discharge Chute Rotation 360°
Rated RPM 540 - 1000
PTO Height 26" (66 cm)
Total Weight 1300 lbs (590 kg)
Dimensions Open (LxWxH) 108" x 64" x 90" (275 cm x 163 cm x 228 cm)
Dimensions Folded (LxWxH) 83" x 56" x 90" (211 cm x 143 cm x 228 cm)
Mounting System Cat I iMatch™ & Quick Hitch Compatible
Cat II
