WALLENSTEIN 3.5in Chipper, Hydraulic Feed, Tractor, Hydraulic Power Pack

SKU BX36RHP

Starting at: Starting at $6,799.⁰⁰

Starting at: Starting at $6,799.⁰⁰

Add your items to the Cart to begin to build and price your package.

When you're ready to take the next step, please reach out to us for a quote, or complete the checkout process to reserve your items in store. (The online checkout just emails us a copy of the items you are interested in, we then reach out to you to confirm everything.)

Showing pricing online is difficult, here's why:
*Pricing shown at MSRP and may not include available Timberstar Tractor or Manufacturer discounts.
*Finance rates, payment calculations, whether or not you need a down payment, all available through our sales staff.
*Online pricing does not include freight, assembly, finance, delivery, or pdi fees.
*Our manufacturer's pricing is subject to change without notice.
*Manufacturer sales promotions valid unitl the end of the month they were issued in.
*Price match available for many brands we carry.

Description

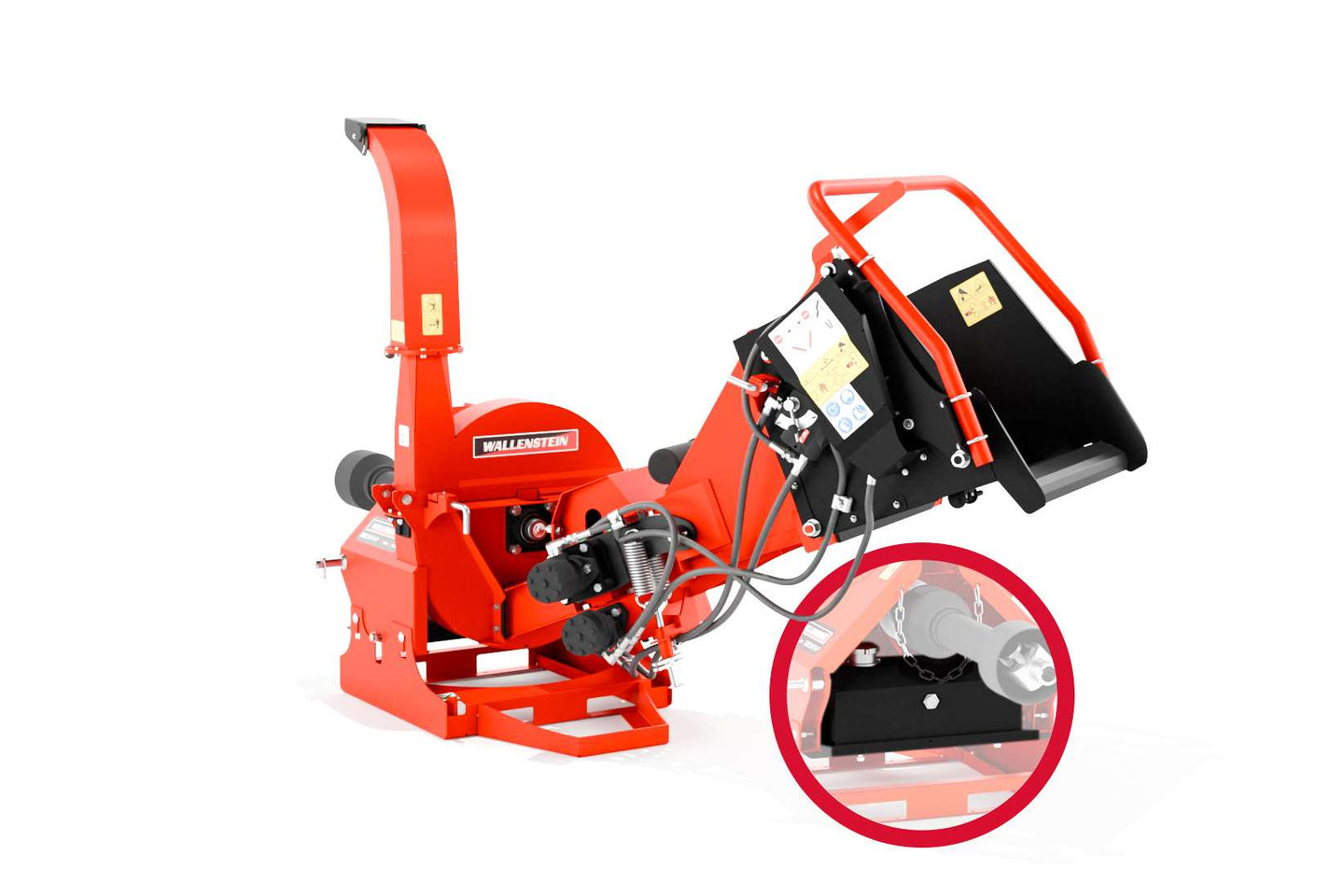

The Wallenstein BX36RHP 3.5 in Chipper is a tractor-mounted disc wood chipper designed for 15–40 engine-hp tractors. It combines a PTO direct-drive system with dual hydraulic roller feed and a built-in PTO-driven hydraulic power pack, allowing the feed system to operate without requiring external tractor hydraulic flow. With a 3.5 in (9 cm) chipping capacity, a wide 4 in × 9 in (10 cm × 23 cm) infeed opening, fold-up feed hopper, reversible rotor knives, and an adjustable 360° discharge chute, the BX36RHP is suited to property maintenance, land management, and processing branches and other suitable woody material with a compatible Category I tractor.

Efficient Hydraulic Feeding and PTO Power

The BX36RHP uses dual driven hydraulic rollers to help draw material into the chipper. Its integrated hydraulic power pack is powered through the tractor PTO, so the chipper’s hydraulic feed system does not require external hydraulic flow from the tractor. PTO direct drive transfers power to the disc, while the recommended tractor engine range of 15–40 hp provides a broad range of compatible tractor applications.

The fold-up feed hopper helps reduce the chipper’s folded transport width when moving or storing the machine. An adjustable ski base supports positioning, while the safety control bar provides an accessible control interface at the feed area. The twig breaker and oversized heavy-duty rotor support the chipper’s processing configuration.

Key Features

3.5 in (9 cm) chipping capacity
Dual hydraulic roller feed system
Built-in PTO-driven hydraulic power pack
External tractor hydraulic flow is not required
PTO direct drive with a rated PTO speed of 540–1000 rpm
4 in × 9 in (10 cm × 23 cm) chipper infeed opening
28 in × 20 in (89 cm × 76 cm) chipper hopper opening
Four reversible rotor knives
25 in (63 cm) rotor with a 125 lb (57 kg) rotor weight
Fold-up feed hopper for a narrower folded configuration
Adjustable discharge chute with 360° rotation
Positional discharge deflector
Adjustable ski base
Safety control bar and twig breaker

Tractor Compatibility and Requirements

The Wallenstein BX36RHP is intended for use with tractors producing 15–40 engine hp. It mounts to a Category I three-point hitch and is compatible with iMatch™ and Quick Hitch systems. The tractor must provide a PTO operating within the rated range of 540–1000 rpm. The chipper includes a built-in PTO-driven hydraulic power pack, and external tractor hydraulic flow is not required for the hydraulic feed system.

Specification	Details
Brand	Wallenstein
Model	BX36RHP
Product type	Tractor-mounted disc wood chipper
Tractor engine horsepower range	15–40 hp
Drive system	PTO direct drive
Rated PTO speed	540–1000 rpm
Feed system	Dual Hydraulic Roller
Required hydraulic flow	Built-in PTO-driven hydraulic power pack
Chipping capacity	3.5 in (9 cm)
Chipper infeed opening	4 in × 9 in (10 cm × 23 cm)
Chipper hopper opening	28 in × 20 in (89 cm × 76 cm)
Chipper type	Disc
Number of chipper knives	4
Rotor diameter	25 in (63 cm)
Rotor weight	125 lb (57 kg)
Discharge chute height	60 in (152 cm)
Discharge chute rotation	360°
PTO height	15–19 in (38–48 cm)
Total weight	635 lb (288 kg)
Dimensions, open (L × W × H)	72 in × 62 in × 60 in (183 cm × 157 cm × 152 cm)
Dimensions, folded (L × W × H)	57 in × 55 in × 60 in (145 cm × 140 cm × 152 cm)
Mounting system	Category I; iMatch™ and Quick Hitch compatible
