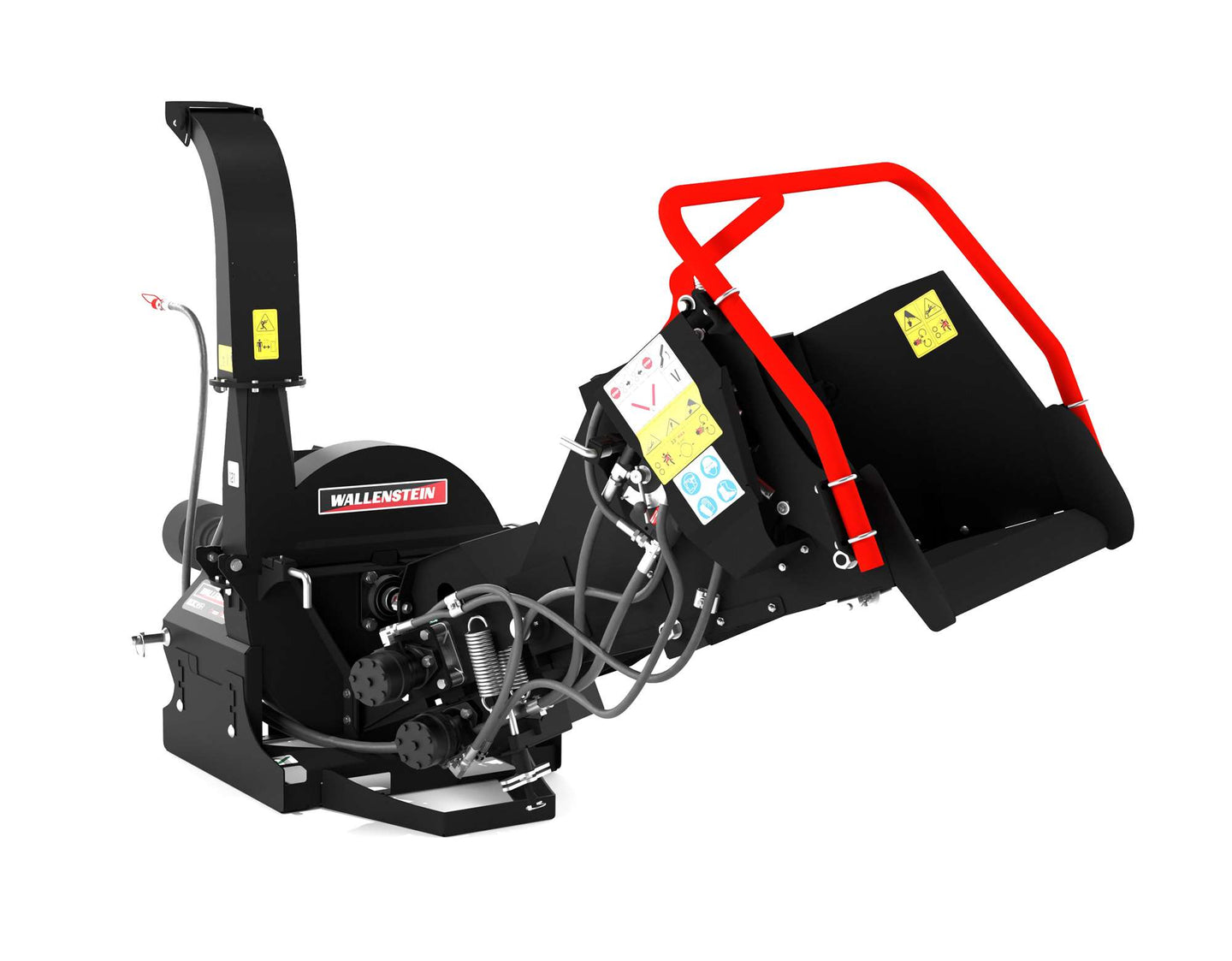

WALLENSTEIN 3.5" Chipper, Hydraulic Feed, Tractor

The WALLENSTEIN BX36R 3.5" Chipper, Hydraulic Feed, Tractor is a tractor-mounted PTO disc wood chipper designed for tractors in the 15–40 engine-HP range. Its dual hydraulic feed rollers help draw material into the chipper, while the PTO direct-drive system powers a heavy-duty 25-inch rotor fitted with four reversible knives. With a 3.5-inch (9 cm) chipping capacity, adjustable discharge chute, fold-up feed hopper and compatibility with Category I three-point hitches, iMatch™ and Quick Hitch systems, the BX36R is suited to clearing branches, processing brush and producing wood chips around farms, acreages and managed properties.

Key Features

• 3.5-inch (9 cm) chipping capacity for processing suitable branches and woody material
• Dual driven hydraulic rollers for hydraulic feeding
• PTO direct-drive disc chipper design
• Compatible with tractors rated from 15–40 engine HP
• Rated for 540–1000 PTO rpm operation
• Requires 3–6 gpm (12–23 lpm) of tractor hydraulic flow
• Four reversible chipper knives mounted on an oversized 25-inch (63 cm) rotor
• 4-inch × 9-inch (10 cm × 23 cm) chipper infeed opening
• 28-inch × 20-inch chipper hopper opening
• Adjustable discharge chute with 360° rotation
• Positional discharge deflector for directing discharged chips
• Fold-up feed hopper without tools
• Adjustable ski base and safety control bar
• Twig breaker and wide infeed opening
• Cat I, iMatch™ and Quick Hitch compatible mounting system

Designed for Tractor-Powered Chipping

The BX36R uses a PTO direct-drive system and is rated for 540–1000 PTO rpm. Its tractor-mounted configuration allows the chipper to be operated from a compatible three-point hitch while the tractor supplies the required hydraulic flow to the dual feed rollers. The 15–40 HP engine range provides a defined tractor requirement for matching the machine to an appropriate power unit.

Hydraulic Feed and Material Handling

Dual hydraulic rollers help feed material through the 4-inch × 9-inch infeed opening. The fold-up feed hopper can be raised without tools, supporting transport and storage when the chipper is not in use. A safety control bar, twig breaker and wide infeed design are included among the BX36R’s operating features.

Discharge and Chipping System

The BX36R is built around a disc chipping system with a 25-inch (63 cm) rotor weighing 125 lb (57 kg). Four reversible knives are fitted to the rotor. Chipped material exits through a discharge chute positioned 60 inches (152 cm) above the ground. The chute rotates through 360° and includes an adjustable discharge deflector for positioning the chip flow.

Tractor Requirements and Compatibility

• Tractor power: 15–40 engine HP
• PTO: 540–1000 rpm; PTO direct drive
• Hydraulic flow: 3–6 gpm (12–23 lpm)
• Hitch: Category I three-point hitch
• Mounting compatibility: iMatch™ and Quick Hitch compatible

Specifications
