Wallenstein 10 Inch Chipper - 3PH, PTO DRIVE

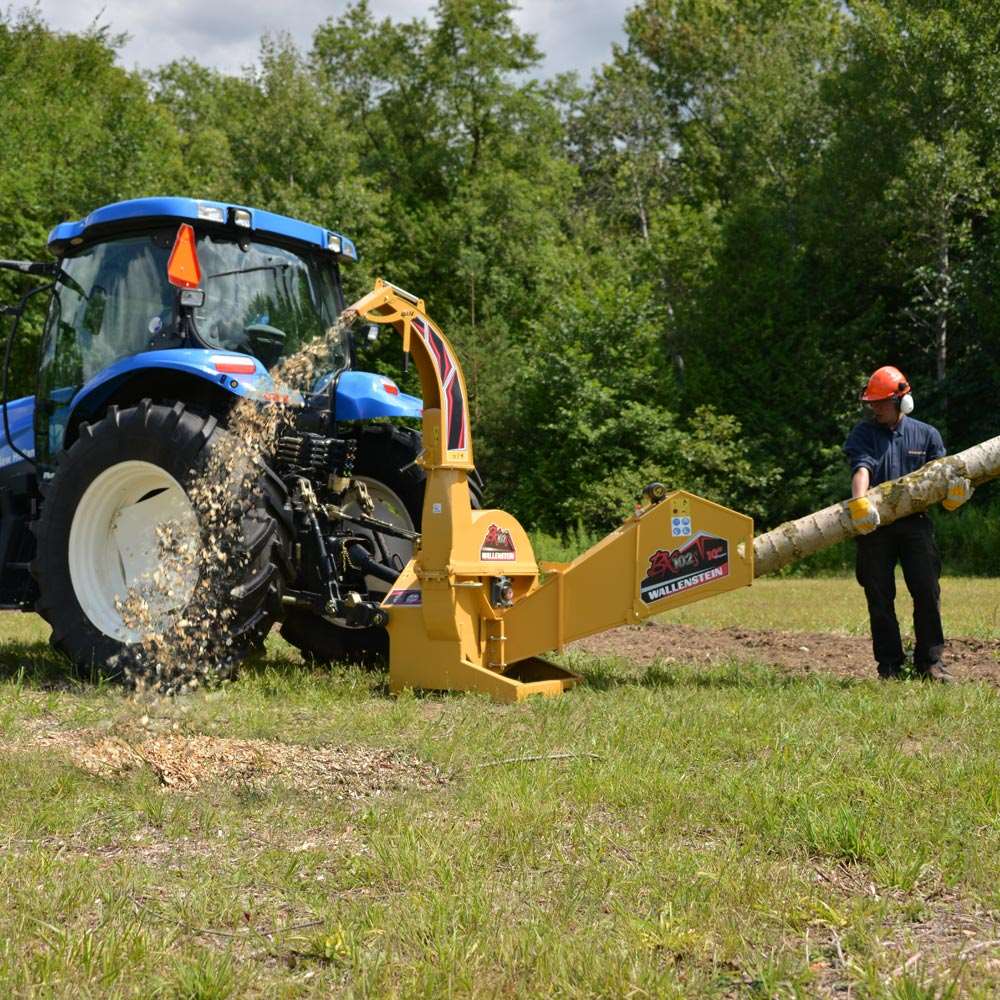

The Wallenstein BX102S 10 Inch Chipper is a heavy-duty, gravity-feed, PTO-driven wood chipper designed for 80–120 engine HP tractors. Built for 3-point hitch applications, it combines direct-drive PTO power with a 36-inch heavy-duty rotor and four reversible knives to process material up to 10 inches in diameter. The BX102S is suited to property maintenance, land clearing, farm and acreage management, and other applications where dependable tractor-mounted wood processing is required.

Product Highlights

The BX102S uses a manual gravity-feed hopper and direct-drive PTO system for straightforward operation from a compatible tractor. Its wide infeed opening accommodates larger branches, while the oversized rotor, reversible knives, and twig breaker support effective chipping performance. A 360-degree adjustable discharge chute helps direct chips where they are needed, and the fold-up feed hopper allows the machine to be configured for transport.

• 10-inch maximum chipping capacity
• Gravity-feed/manual-feed hopper
• Direct-drive PTO system
• 36-inch heavy-duty disc rotor
• Four reversible rotor knives
• Wide 10 x 15-inch chipper infeed opening
• 25 x 26-inch hopper opening
• 360-degree adjustable discharge chute
• Fold-up feed hopper for a narrower transport configuration
• Positional discharge deflector
• Twig breaker
• Direct-drive PTO with shear-bolt protection documented in the operator manual
• Category II 3-point hitch mounting
• iMatch™ and Quick Hitch compatible

Tractor Requirements

The Wallenstein BX102S is designed for tractors rated from 80 to 120 engine HP. It mounts to a Category II 3-point hitch and is compatible with iMatch™ and Quick Hitch systems. The rated PTO speed is 540–1000 RPM, with a PTO height of 23 inches.

Chipping and Discharge System

The BX102S features a 36-inch rotor weighing 400 lb and fitted with four reversible knives. The disc-style chipper is designed for material up to 10 inches in diameter. Its gravity-feed design allows branches and other suitable material to enter through the hopper, while the wide infeed opening provides a 10 x 15-inch passage into the chipping system. The discharge chute reaches 89 inches in height and rotates through 360 degrees for flexible chip placement.

Transport and Dimensions

For operation, the BX102S measures 71 x 71 x 89 inches (180 x 180 x 226 cm), listed as length x width x height. With the feed hopper folded, the dimensions are 61 x 58 x 89 inches (155 x 147 x 226 cm), providing a transport width of 58 inches. The total machine weight is 1,143 lb (519 kg).

Specifications

Manufacturer Documentation

Manufacturer documentation for the BX102S includes BX-S Series wood chipper operator manuals, the BX102S parts manual, setup instructions, and PTO shaft installation instructions.
