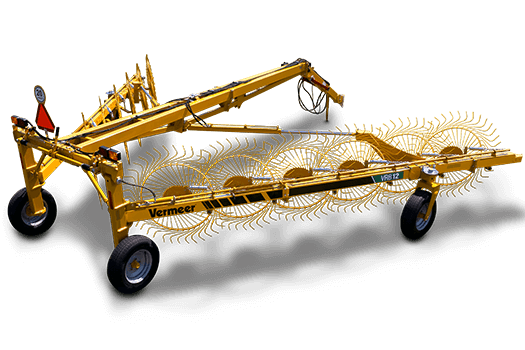

Vermeer VRB12 Bi-Fold Wheel Rake – 12-Wheel, 60" Rake Wheels [VRB248511]

The Vermeer VRB12 High-Capacity Bifold Wheel Rake is a 12-wheel hay rake designed to cover up to 25 ft (7.6 m) while folding to a transport width of 8.3 ft (2.5 m). Its standard 60-inch (152.4 cm) rake wheels, 40 teeth per wheel, and adjustable windrow width make it suitable for efficient field raking and consistent windrow formation. Hydraulically opening and closing from the tractor cab, the VRB12 combines high-capacity field coverage with convenient transport and setup.

Product Highlights

• High-capacity bi-fold wheel rake with 12 rake wheels
• Standard 60-inch (152.4 cm) rake wheels with 40 teeth per wheel
• Up to 25 ft (7.6 m) maximum raking width
• Hydraulically opens and closes from the tractor cab
• Toolless ground-pressure adjustment
• Toolless windrow-width adjustment using a ratchet lever
• Windrow width adjustable from 36 in (91.4 cm) to 72 in (182.9 cm)
• Folds to an 8.3 ft (2.5 m) transport width
• Standard highway lights
• Optional rake-wheel wind discs, single-side raking, center splitter, safety chain, tandem wheels, and hydraulic windrow-width adjustment circuit

Designed for Efficient Hay Raking

The VRB12 provides a broad working width for covering larger areas efficiently. Its 12 rake wheels are equipped with 40 teeth each and have a 60-inch diameter, helping gather cut material into defined windrows for subsequent hay-handling operations. The windrow width can be adjusted from a minimum of 36 inches to a maximum of 72 inches, allowing the rake to be configured for different crop volumes and field conditions.

Toolless ground-pressure adjustment helps simplify setup, while the toolless windrow-width adjustment with ratchet lever allows changes without requiring tools. An optional hydraulic windrow-width adjustment circuit is also available where specified. Optional single-side raking and a center splitter provide additional configuration possibilities.

Hydraulic Folding and Transport

The bi-fold design hydraulically opens and closes from the tractor cab. When folded, the rake measures 8.3 ft wide, with a transport length of 24.8 ft (7.6 m) and transport height of 6.4 ft (2.0 m). Standard highway lights support transport visibility. The rake has a total weight of 3,820 lb (1,732.7 kg), including a tongue weight of 1,367 lb (620.1 kg), and uses 205/75-R15 transport tires.

Tractor Requirements

The Vermeer VRB12 requires a tractor with a minimum of 30 hp (22.4 kW). The tractor must provide two double-acting hydraulic circuits with hydraulic pressure of 1,800 psi (124.1 bar) and hydraulic flow of 5 gpm (18.9 L/min). The tractor must also be equipped with ROPS, a seat belt, and an upright exhaust system.
