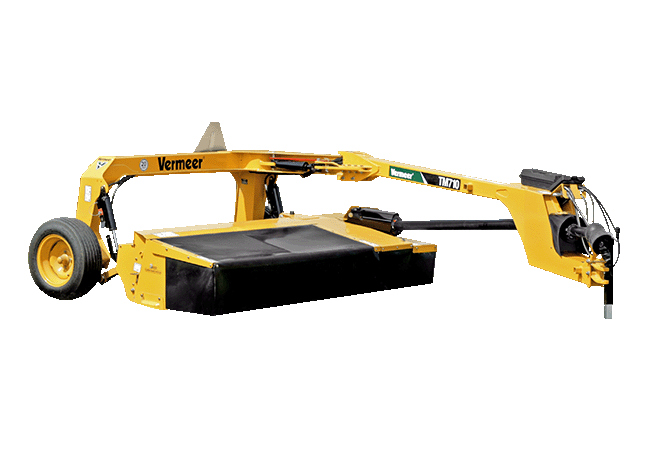

Vermeer TM710 7-Disc Trailed Mower – 9.2 ft Cutting Width [TM7276661]

Vermeer TM710 7-Disc Trailed Mower – 9.2 ft Cutting Width is a trailed rotary disc mower designed for efficient hay cutting with a 9.2-ft (2.8-m) cutting width, seven discs, and 14 blades. The TM710 combines a low-profile tapered cutter bar designed to help minimize streaking with rubber torsion suspension for a controlled ride over the field. With 540-rpm PTO operation and a recommended 55 PTO-hp (41 kW) tractor, it is suited to operators looking for a practical, drawbar-mounted mower for routine haymaking. A hydraulic swing cylinder assists maneuvering around obstacles, while the Quick-Clip blade retention system, friction disc clutch driveline protection, and standard modular independent skid shoes support straightforward field operation and maintenance.

Key Features

• 9.2-ft (2.8-m) cutting width for productive field coverage
• Seven 19.7-in (50-cm) discs with 14 blades
• Low-profile tapered cutter bar designed to minimize streaking
• Standard Quick-Clip blade retention system
• Hydraulic swing cylinder for maneuvering around obstacles
• Rubber torsion suspension
• Driveline friction disc clutch for torque protection
• Standard modular independent skid shoes
• Manual turnbuckle angle adjustment
• Standard 3-year limited cutter-bar warranty
• Optional swathboard for swath formation
• Optional topping skid shoes and wear skids

Designed for Efficient Cutting

The TM710 uses a standard cutter bar with seven discs rotating at 2,797 rpm. The 14-blade configuration provides the cutting action across the 9.2-ft width, while the low-profile tapered cutter bar is designed to minimize streaking. Cut height can be adjusted from 1.3 to 3 in (3.2 to 7.6 cm), allowing the mower to be set for different field and crop conditions within its specified range.

Standard modular independent skid shoes help support the cutter bar during operation. The mower also includes a Quick-Clip blade retention system for blade servicing, while the driveline friction disc clutch provides torque protection. An optional swathboard is available for swath formation, and optional topping skid shoes and wear skids can be selected for additional configuration flexibility.

Trailed Design and Transport

The Vermeer TM710 connects to the tractor using a drawbar hitch and is designed for 540-rpm PTO operation. Its hydraulic swing cylinder helps the operator maneuver around obstacles in the field. Rubber torsion suspension supports the trailed mower design, and the cutter bar provides 15 in (38.1 cm) of lift clearance.

For transport planning, the mower measures 9.4 ft (2.9 m) wide, 15.3 ft (4.7 m) long, and 46 in (116.8 cm) high. The total weight is 2,200 lb (997.9 kg), with a tongue weight of 630 lb (285.8 kg).

Tractor Requirements

The TM710 requires a tractor with approximately 55 PTO hp (41 kW), a drawbar hitch, and a 540-rpm PTO. Hydraulic operation requires two double-acting hydraulic remotes. One double-acting remote may be used with the optional kit. The hydraulic system requirement is 1,250 psi (86.2 bar) at 6 gpm (22.7 L/min).
