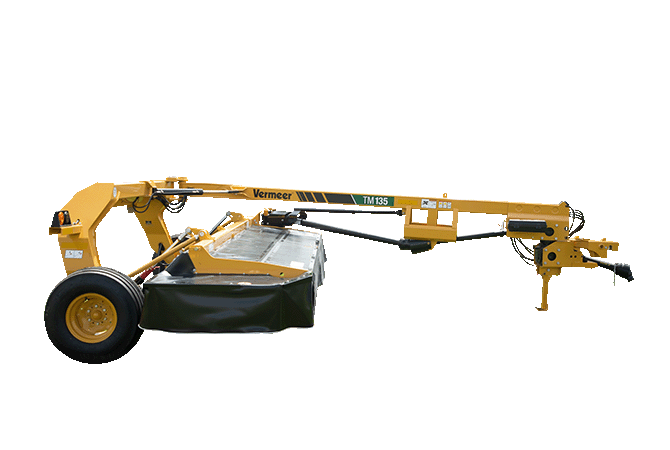

Vermeer TM135 9-Disc Trailed Mower – 13.6 ft Cutting Width, 540 RPM, Drawbar Swivel [TM1472321]

The Vermeer TM135 9-Disc Trailed Mower is a heavy-duty trailed disc mower designed for efficient hay cutting with a 13.5 ft (4.1 m) cutting width and a nine-disc Q3 cutter bar. This drawbar-swivel configuration is designed for tractors equipped with a drawbar hitch and swivel gearbox connection, with a recommended 70 hp (52.2 kW) of PTO power. Operating at 540 rpm PTO, the TM135 combines hydraulic suspension, hydraulic pitch control, Quick-Clip blade retention, and a Quick-Change shear-ring system to support productive mowing and practical serviceability in demanding hay-cutting applications.

Product Overview

The TM135 is a trailed disc mower built for broad field coverage and controlled operation. Its nine 23 in (58.4 cm) discs rotate at 2,700 rpm and carry 18 blades, while the Q3 cutter bar provides a cut-height range of 1–3 in (2.5–7.6 cm). Hydraulic pitch control allows the mower angle to be adjusted from the tractor, and the hydraulic suspension system supports the mower during operation and transport.

For handling and maintenance, the mower includes Quick-Clip blade retention and a Quick-Change shear ring as standard features. The greaseless vertical driveline and greaseless tongue pivot are designed to reduce routine lubrication points. A hydraulic swing cylinder supports positioning, while the drawbar with swivel gearbox provides the specified hitch arrangement for this configuration.

Key Features

• Vermeer TM135 trailed disc mower
• 9-disc Q3 cutter bar
• 13.5 ft (4.1 m) cutting width
• 540 rpm or 1,000 rpm PTO capability; this listing is for the 540 rpm configuration
• Recommended tractor PTO power of 70 hp (52.2 kW)
• Drawbar with swivel gearbox connection
• Hydraulic suspension system
• Hydraulic pitch control and hydraulic swing cylinder
• Quick-Clip standard blade retention
• Quick-Change shear ring standard
• 18 blades and 23 in (58.4 cm) discs
• Greaseless vertical driveline and greaseless tongue pivot
• 3-year limited cutter-bar warranty standard

Tractor Requirements

The Vermeer TM135 requires a tractor with a drawbar hitch and swivel gearbox connection, category II or III N. The recommended tractor PTO output is 70 hp (52.2 kW). Hydraulic operation requires two remote circuits: a single-acting circuit for lift and a double-acting circuit for swing. The tractor hydraulic system should provide 1,900 psi (131 bar) and 6 gpm (22.7 L/min).

Dimensions and Transport

With the mower ends up, the transport width is 13.6 ft (4.1 m). With the ends down, the transport width is 14.3 ft (4.4 m). The transport height is 61 in (154.9 cm), and transport length is 18.2 ft (5.5 m). The working width is 14.3 ft (4.4 m), with a working length of 17.2 ft (5.2 m). The mower-swung-out offset is 50 in (127 cm), and cutter-bar lift clearance is 16 in (40.6 cm).

Specifications

Additional Options

Available options include a crop divider and swath-wheel combination, along with topping skid shoes and wear skids.
