Vermeer TM135 9-Disc Trailed Mower – 13.6 ft Cutting Width, 540 RPM, 2-Point Swivel [TM1472321]

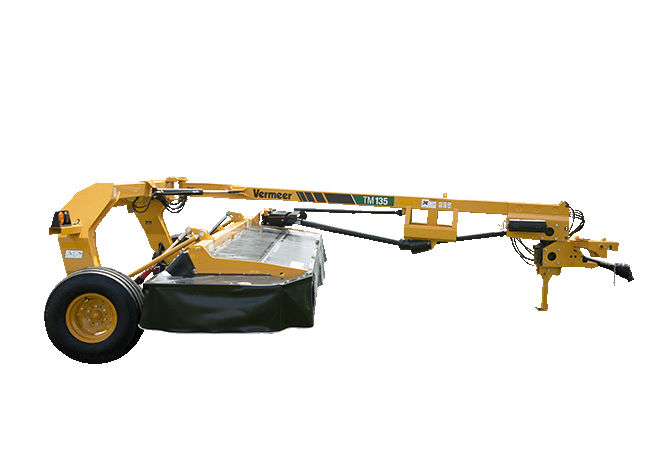

The Vermeer TM135 Trailed Mower is a 9-disc trailed disc mower designed for operators seeking convenient use, practical maintenance, and controlled cutting performance. Its Q3^® cutter bar provides a 13.5 ft (4.1 m) cutting width, while hydraulic suspension, hydraulic pitch control, and a hydraulic swing cylinder support field operation and adjustment. With a 70 hp (52.2 kW) recommended tractor power requirement, a swivel gearbox, Quick Clip^® blade retention, Quick-Change™ shear-ring protection, and standard highway lights, the TM135 is suited to mowing applications that require a durable, transportable machine with hydraulic control.

Key Features

• Q3^® cutter bar with 9 discs, 18 blades, and 23 in (58.4 cm) disc diameter
• 13.5 ft (4.1 m) cutting width and 14.3 ft (4.4 m) working width
• Hydraulic, nitrogen-charged suspension with adjustment capability
• Hydraulic pitch control for angle adjustment
• Swivel gearbox with pivoting header gearbox and CV joint
• Hydraulic swing cylinder and 50 in (127 cm) mower swung-out offset
• Quick Clip^® blade retention system, standard
• Quick-Change™ shear ring, standard, with driveline friction disc clutch torque protection
• Greaseless vertical driveline and tongue pivot
• Standard modular independent skid shoes
• 1–3 in (2.5–7.6 cm) cut-height range
• Standard highway lights
• 3-year limited cutter bar warranty, standard

Cutting and Operating Performance

The TM135 uses a 9-disc Q3^® cutter bar with a disc speed of 2,700 rpm and 18 blades. Hydraulic pitch adjustment allows the cutter bar angle to be adjusted for operating conditions, with a specified cut height from 1 to 3 in (2.5 to 7.6 cm). The nitrogen-charged hydraulic suspension is designed to provide adjustable support during operation, while the cutter-bar lift-height clearance is 16 in (40.6 cm).

Blade servicing is supported by the standard Quick Clip^® system, and the standard Quick-Change™ shear ring provides a convenient shear-ring arrangement. The driveline uses a friction disc clutch for torque protection. The cutter bar is covered by a standard 3-year limited cutter bar warranty.

Hydraulic and Transport Features

Two remote hydraulic functions are required: single-acting lift and double-acting swing. The hydraulic system specification is 1,900 psi (131 bar) with a flow rate of 6 gpm (22.7 L/min). The mower has a transport width of 13.6 ft (4.1 m), transport length of 18.2 ft (5.5 m), and transport height of 61 in (154.9 cm). Standard highway lights support road transport equipment requirements.

Compatibility and Tractor Requirements

When configured with the 2-point swivel hitch, the Vermeer TM135 requires a tractor with a category II or III N 2-point hitch. The manufacturer also lists a drawbar with swivel gearbox as an alternative configuration. The TM135 model is listed with either a 540 rpm or 1,000 rpm PTO drive option; confirm the required PTO configuration before ordering or installation. Recommended tractor power is 70 hp (52.2 kW).

Specifications

Available Options

Available equipment includes an optional right crop divider and optional left swath wheel. A right swath wheel is standard.
