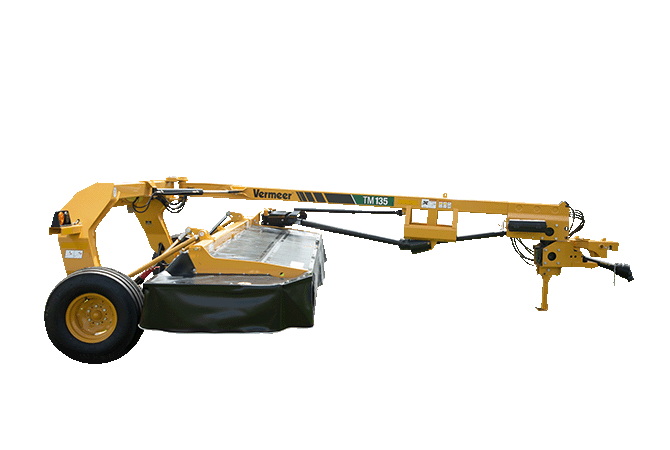

Vermeer TM135 9-Disc Trailed Mower – 13.6 ft Cutting Width, 1000 RPM, 2-Point Swivel [TM1472321]

The Vermeer TM135 9-Disc Trailed Mower is a heavy-duty disc mower designed for efficient hay and forage cutting across broad fields. This TM135 configuration combines a 13.6 ft (4.1 m) cutting width with a 14.3 ft (4.3 m) working width, a 1,000-rpm PTO drive, and a 2-point swivel-gearbox hitch for compatible tractors. Its 9-disc Q3 cutter bar, hydraulic suspension, hydraulic pitch control, and 18-blade cutting system support productive mowing, while the Quick-Clip blade retention system and Quick-Change shear ring are included as standard. With a recommended tractor power of 70 hp (52 kW), the TM135 is suited to operators seeking a capable trailed mower for regular haymaking and forage-cutting work.

Efficient 9-Disc Cutting Performance

The TM135 uses a 9-disc Q3 cutter bar with 23 in (58.4 cm) discs and 18 blades. The discs operate at 2,700 rpm, providing a productive cutting system across the mower’s 13.6 ft cutting width. Cut height can be set from 1–3 in (2.5–7.6 cm), while hydraulic pitch control allows the cutting angle to be adjusted from the tractor.

Hydraulic Suspension and Protection

Hydraulic suspension helps support the mower during field operation. The driveline friction-disc clutch provides torque protection, while the standard Quick-Change shear ring is designed to provide shear protection for the cutting system. Standard modular independent skid shoes support the mower’s cutting components during operation.

Key Features

• 9-disc Q3 cutter bar
• 13.6 ft (4.1 m) cutting width
• 14.3 ft (4.3 m) working width
• 1,000-rpm PTO configuration
• 2-point swivel-gearbox hitch configuration
• Category II or III N hitch compatibility
• Hydraulic suspension
• Hydraulic pitch control
• Cut height range of 1–3 in (2.5–7.6 cm)
• 23 in (58.4 cm) disc diameter
• 2,700-rpm disc speed
• Quick-Clip blade retention system, standard
• Quick-Change shear ring, standard
• Standard modular independent skid shoes
• Standard highway lights
• Optional right crop divider and standard right swath wheel

Tractor Requirements and Compatibility

The Vermeer TM135 in this configuration is intended for tractors equipped with a Category II or III N 2-point hitch and swivel gearbox. The tractor PTO must be configured for 1,000 rpm. Vermeer recommends a minimum tractor power of 70 hp (52 kW).

Operation requires two remote hydraulic circuits: one single-acting circuit for lift and one double-acting circuit for swing. The hydraulic system requirement is 1,900 psi (131 bar) and 6 gpm (20 L/min).

Specifications

Product code: TM1351210
