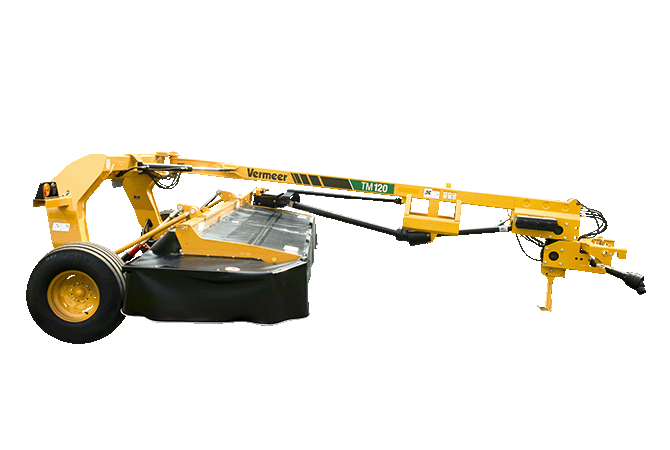

Vermeer TM120 12-Disc Trailed Mower – 15.5 ft Cutting Width, 1000 RPM [TM1676211]

SKU TM1200003
Starting at $87,81960
Starting at $87,81960

Add your items to the Cart to begin to build and price your package!


When you're ready to take the next step, please reach out to us for a quote.

*Pricing shown at MSRP and may not include available Timberstar Tractor or Manufacturer discounts.
*Finance rates, payment calculations, whether or not you need a down payment, all available through our sales staff.
*Pricing may not include freight, assembly, finance, delivery, or pdi fees.
*Manufacturer pricing subject to change without notice.
*Manufacturer sales promotions valid unitl the end of the month they were issued in.
*Price match available for many brands we carry.

Description

The Vermeer TM1200 12-Disc Trailed Mower is a heavy-duty trailed disc mower designed for efficient hay cutting across a 15.5 ft (4.7 m) cutting width. With 12 self-contained cutter-bar discs, hydraulic suspension, hydraulic pitch control, and a 1,000 rpm PTO configuration, it provides a productive mowing solution for operators seeking broad coverage and practical field performance. The TM1200 also includes Quick-Clip® blade retention, standard highway lights, modular independent skid shoes, and friction-disc-clutch driveline torque protection. Product code: TM1200003.

Product Overview

The Vermeer TM1200 combines a wide 15.5 ft (4.7 m) cutting width with a working width of 22 ft (6.7 m), supporting efficient mowing operations while maintaining a transport width of 8.5 ft (2.6 m). Its 12-disc cutter bar uses 24 blades and operates at a disc speed of 2,950 rpm. The standard cutter bar is adjustable across a 1.3–3 in (3.3–7.6 cm) cutting-height range, while hydraulic pitch control allows the operator to adjust the mower angle from the tractor.

Hydraulic suspension helps support the mower during operation, and the standard modular independent skid shoes help protect the cutter bar. Optional topping wear skids and an optional swath board are available as specified equipment options. Highway lights are standard for transport visibility.

Key Features

  • Heavy-duty trailed disc mower for hay-cutting applications
  • 12 self-contained cutter-bar discs
  • 15.5 ft (4.7 m) cutting width
  • 22 ft (6.7 m) working width
  • 1,000 rpm PTO configuration; the drive also accepts 540 rpm or 1,000 rpm PTO
  • Recommended tractor power of 85 hp (63 kW)
  • Hydraulic suspension
  • Hydraulic pitch control for angle adjustment
  • Quick-Clip® blade retention system as standard
  • 24 blades and 19.7 in (50 cm) discs
  • Standard modular independent skid shoes
  • Optional topping wear skids and optional swath board
  • Friction-disc-clutch driveline torque protection
  • Standard highway lights

Tractor Requirements

The Vermeer TM1200 requires a tractor equipped with a 2-point hitch, category II or III N, and a compatible 1,000 rpm PTO for this configuration. The mower can accept either a 540 rpm or 1,000 rpm PTO, but this product configuration is identified as 1,000 rpm. A tractor with at least 85 hp (63 kW) is recommended.

Hydraulic operation requires two double-acting hydraulic remotes. The hydraulic system requirement is 1,500 psi (100 bar) with a flow rate of 6 gpm (20 L/min).

Specifications

Brand Vermeer
Manufacturer model TM1200 Trailed Mower
Product code TM1200003
Product type Heavy-duty trailed disc mower
Number of discs 12
Cutting width 15.5 ft (4.7 m)
Working width 22 ft (6.7 m)
Transport width 8.5 ft (2.6 m)
Transport length 22 ft (6.7 m)
Transport height 78 in (200 cm)
Working height 78 in (200 cm)
Total weight 5,900 lb (2,700 kg)
Tongue weight 1,580 lb (720 kg)
Drive PTO 540 rpm or 1,000 rpm
Recommended PTO horsepower 85 hp (63 kW)
Hitch 2-point with swivel gearbox, category II or III N
Suspension Hydraulic
Hydraulic requirements Two double-acting remotes
Hydraulic pressure 1,500 psi (100 bar)
Hydraulic flow rate 6 gpm (20 L/min)
Tires 31x13.5-15
Cutter bar type Standard
Cut height 1.3–3 in (3.3–7.6 cm)
Disc diameter 19.7 in (50 cm)
Disc speed 2,950 rpm
Number of blades 24
Angle adjustment Hydraulic pitch control
Blade retention Quick-Clip® system, standard
Swath formation Optional swath board
Highway lights Standard
